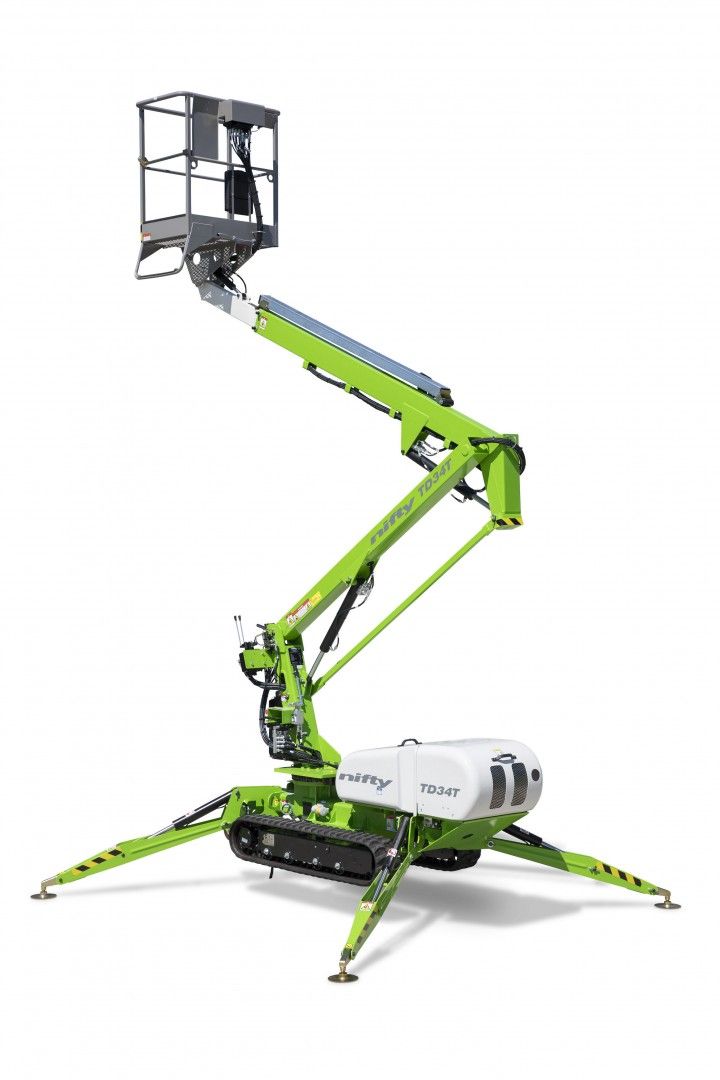

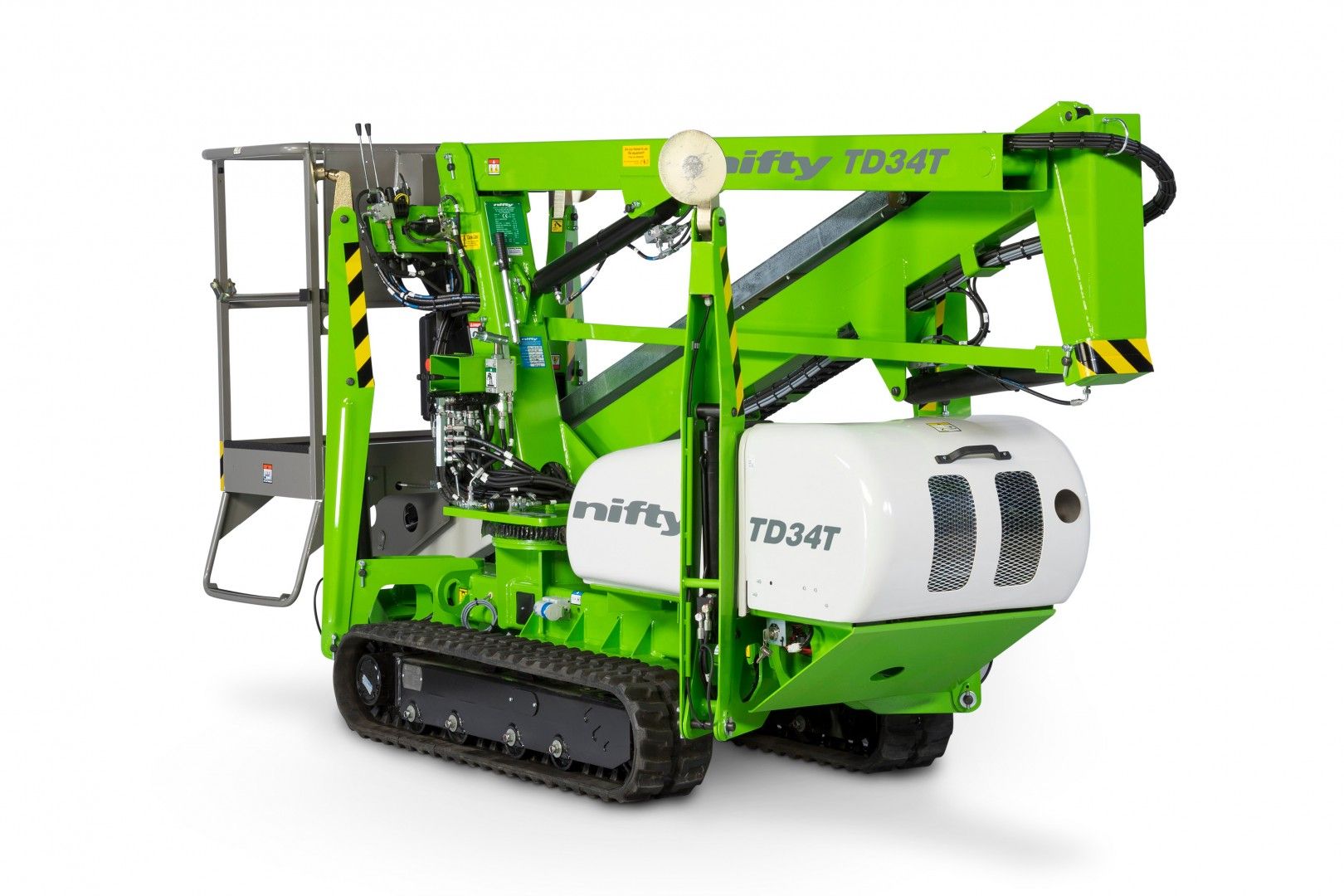

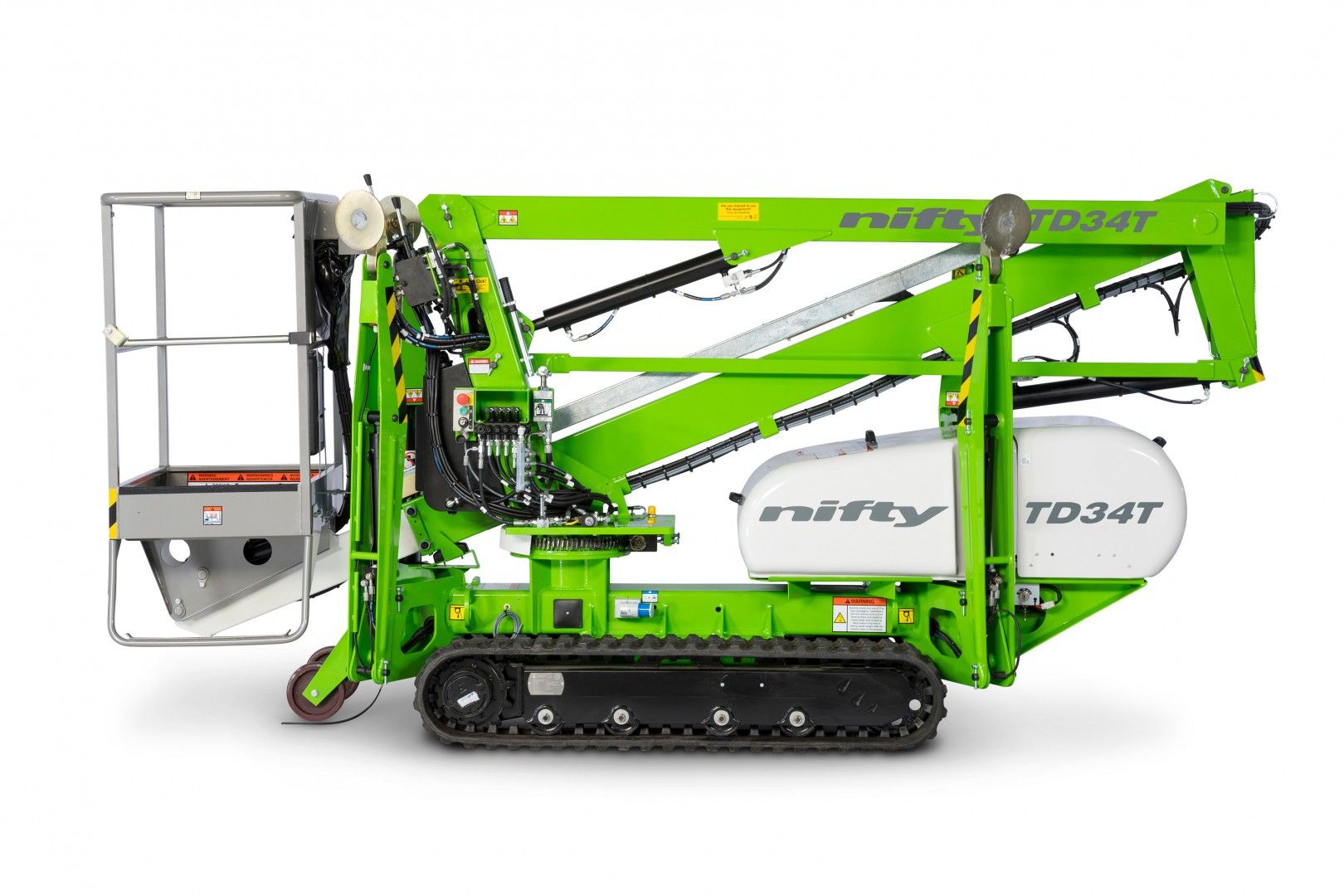

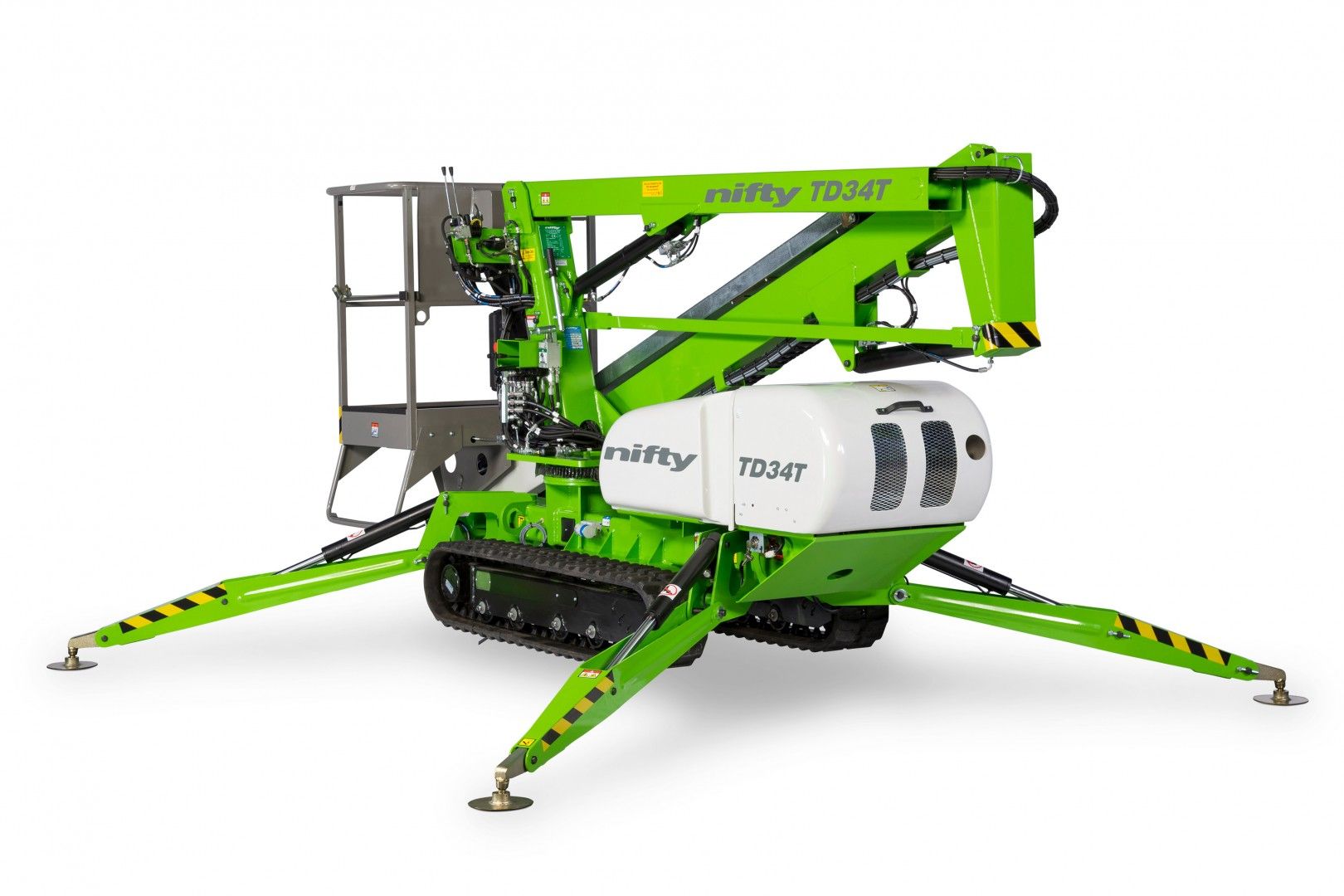

TD34T | TrackDrive Access Platform

Working Height

12.2m 40ft

Platform Height

10.2m 33ft 6in

Working Outreach

6.1m 20ft

Safe Working Load

200kg 440lbs500lbs

Minimum Weight

1890kg 4170lbs4080lbs

Inquire Now Download Spec Sheet

The TD34T TrackDrive access platform offers an impressive working envelope from a compact base with outstanding traction.

The TD34T delivers 60% gradeability with excellent traction on steep or rough terrain.

Weight-saving design means that site-to-site transportation is more economical and the TD34T is also more efficient, allowing it to work for longer while using less fuel.

Also available are rubber-free non-marking tracks, the TD34T is ideal for internal or clean applications, increasing the number of locations that the TD34T can work, greatly improving its utilization.

For more information regarding the TD34T or any other TrackDrive access platform, including the TD34TN and TD42T, please got to our inquire now page.

TD34T Features

60% (31º) Gradeability

Will climb very steep inclines

Excellent Traction

Better grip on uneven terrain

Weight Saving Design

Lower cost transportation & better fuel economy on site

Non-Marking Tracks Option

Optional rubber-free tracks available for indoor usage

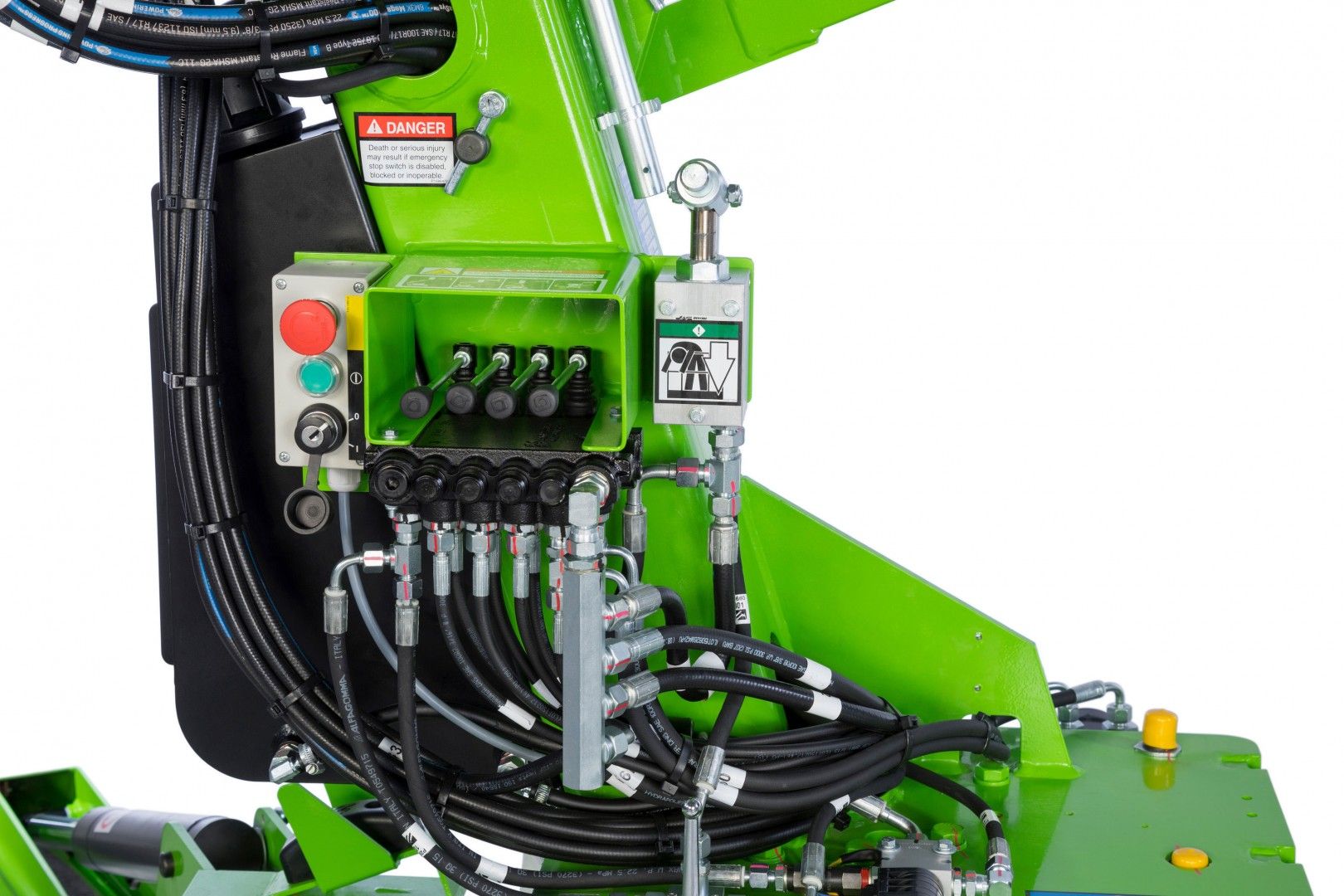

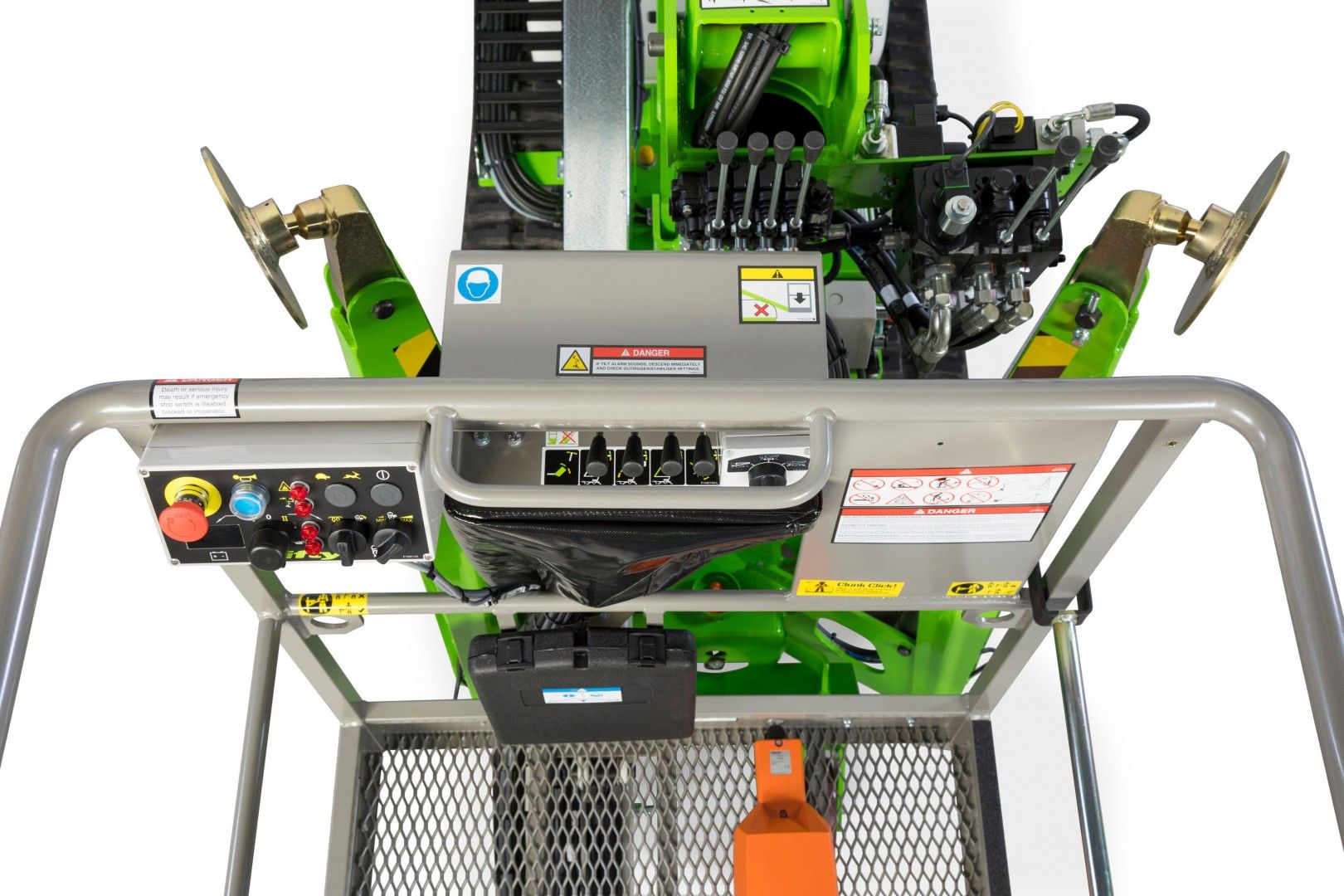

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

TD34T Specifications

Working Height (A)

12.2m 40ft

Working Outreach (C)

6.1m 20ft

Platform Height (B)

10.2m 33ft 6in

Machine Width (F)

1.1m 3ft 7in

Machine Height (D)

1.9m 6ft 3in

Machine Length (J)

3.95m 13ft

Working Width (G)

3.55m 11ft 8in

Travel Speed

1.6km/h 1mph

Gradeability

60% / 31°

Minimum Weight

1890kg 4170lbs 4080lbs

Safe Working Load

200kg 440lbs 500lbs

Basket Width

1.1m 3ft 7in

Basket Depth

0.65m 2ft 2in

Maximum Slope

13% / 7.6°

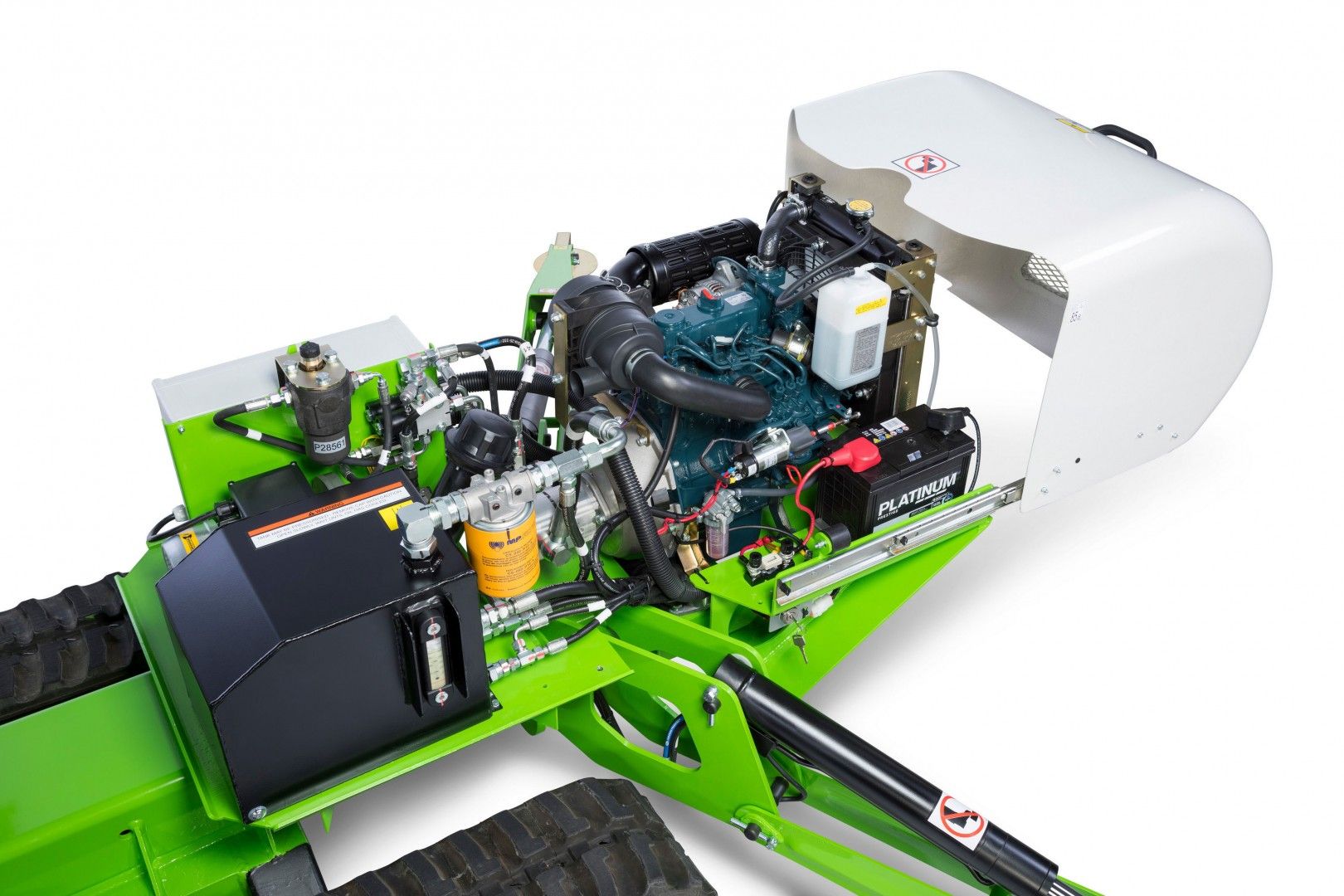

Power Options

Diesel & Mains

TD34T Diagram

Diagram of TD120T
