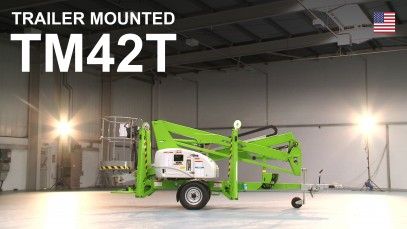

TM42T | Trailer Mounted Cherry Picker

Working Height

14.7m 48ft 6in

Working Outreach

7.55m 25ft

Safe Working Load

225kg 500lbs 500lbs

Minimum Weight

1775kg 3915lbs

Developed specifically to maximize outreach at lower levels, the Nifty TM42T trailer mounted cherry picker delivers an unrivaled working envelope.

Its compact dimensions and hydraulic outriggers make maneuvering and setting up the TM42T both quick and easy and its spacious 4ft 7in wide platform provides the operator plenty of room to work.

Operation and maintenance are also made simple, due to fully proportional hydraulic controls minimizing both downtime and running costs.

The TM42T offers an up-and-over clearance of more than 18ft 4in, allowing it to easily reach over larger obstacles such as walls and buildings.

For more information regarding the TM42T, or any other trailer mounted cherry picker, including the TM34T and TM50, please got to our inquire now page.

Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Bi-Energy Available

Optimising utilization

Hydraulic Outriggers

For quick & easy setup

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Traction Drive Option

Improved manoeuvrability on site

Specifications

Working Height (A)

14.7m 48ft 6in

Working Outreach (C)

7.55m 25ft

Platform Height (B)

12.7m 42ft

Machine Width (F)

1.6m 5ft 3in

Machine Height (D)

2m 6ft 7in

Machine Length (J)

5.55m 18ft 3in

Working Width (G)

3.8m 12ft 6in

Minimum Weight

1775kg 3915lbs

Safe Working Load

225kg 500lbs 500lbs

Cage Width

1.4m 4ft 7in

Cage Depth

0.65m 2ft 4in

Outrigger Type

Hydraulic

Traction Drive

Available

Power Options

Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)

Diagram

Diagram of Nifty 150T
