TD34TN | TrackDrive Access Platform

Working Height

12.2m 40ft

Platform Height

10.2m 33ft 6in

Working Outreach

6.1m 20ft

Safe Working Load

200kg 440lbs500lbs

Minimum Weight

1890kg 4170lbs3990lbs

Inquire Now Download Spec Sheet

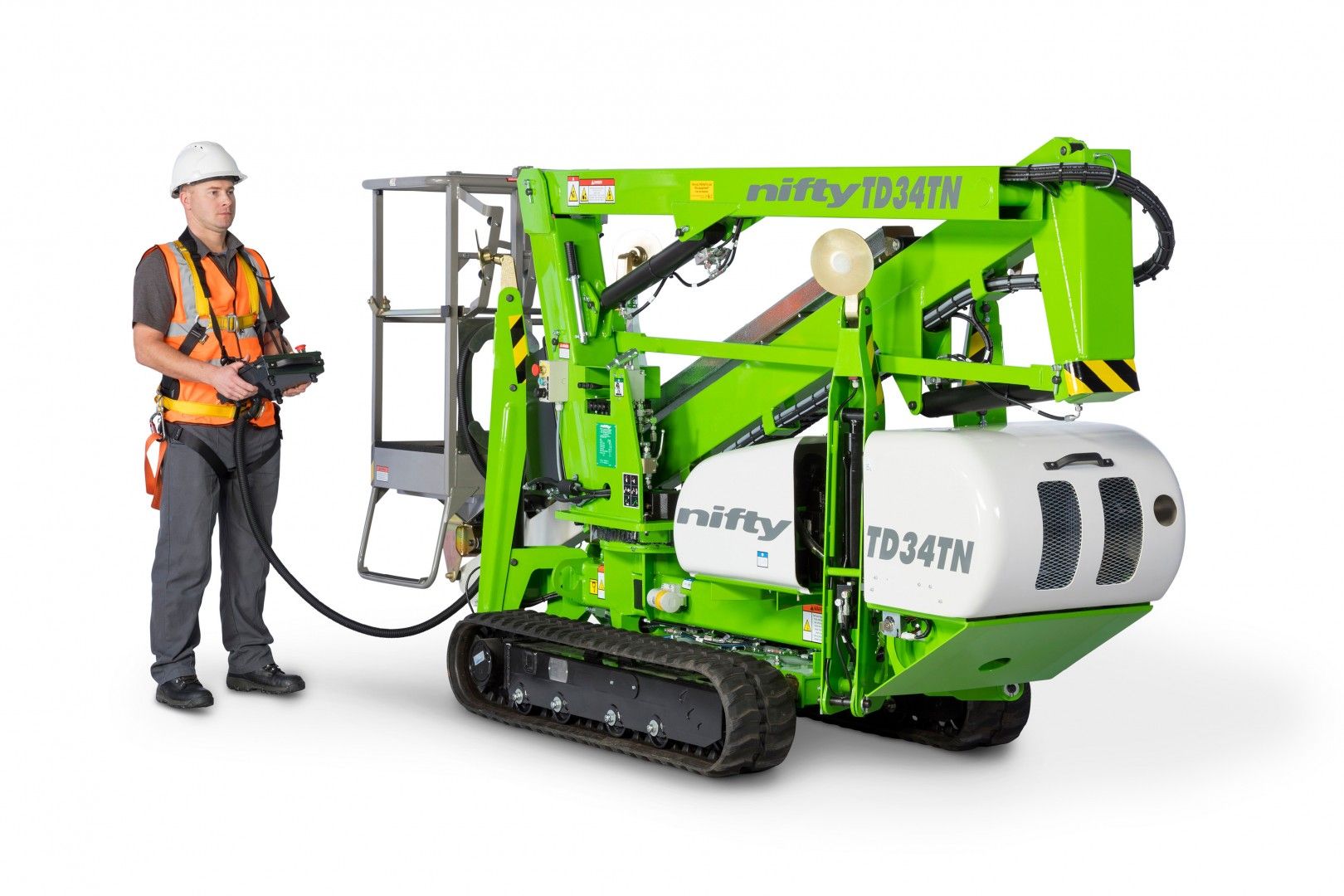

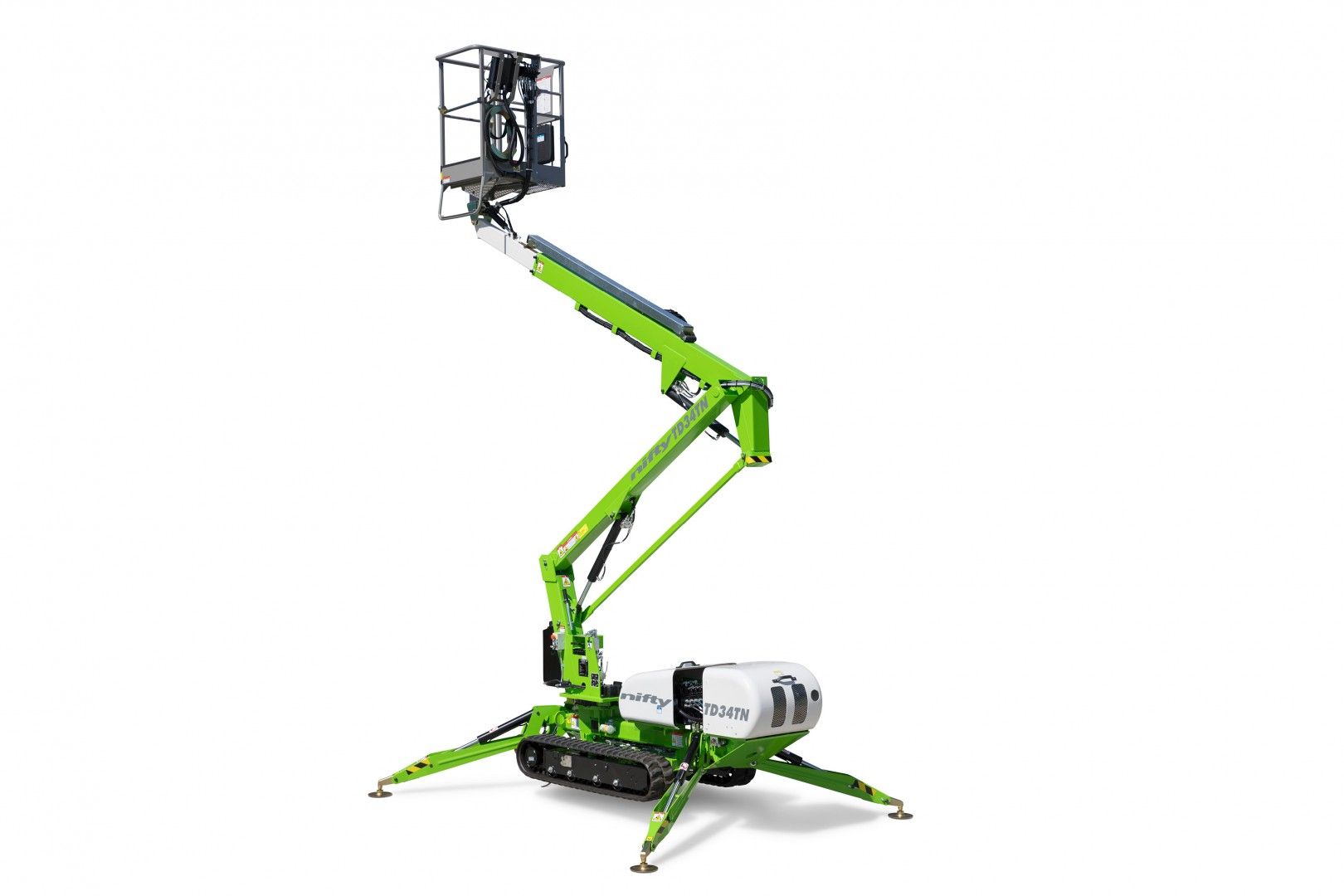

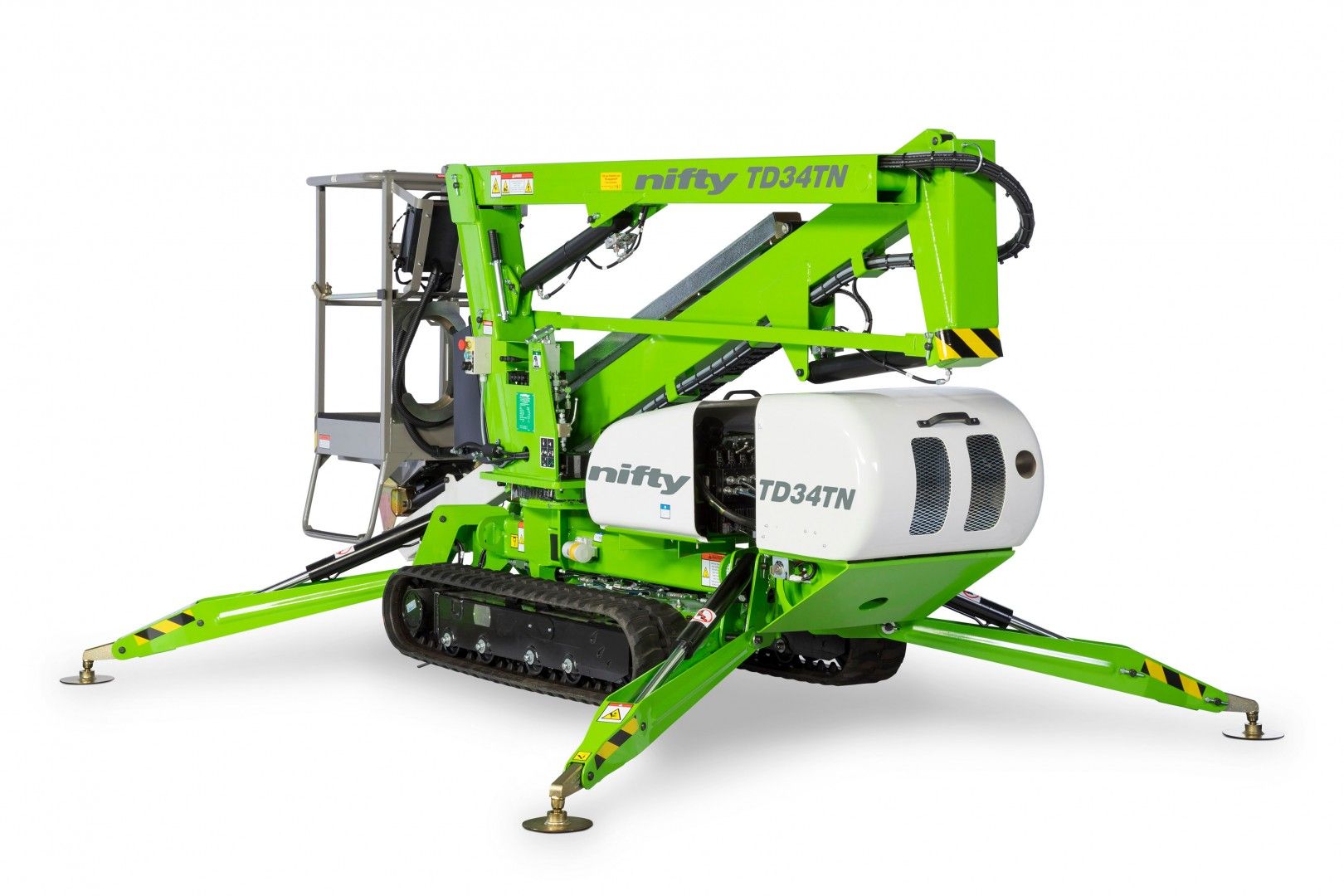

The TD34TN TrackDrive access platform offers an impressive working envelope from a compact, crawler-mounted base that uses continuous tracks for outstanding traction.

The TD34TN delivers 60% gradeability with excellent traction on steep or rough terrain due to its crawler tracks and will pass through a 2ft 7in opening for restricted access applications.

Weight-saving design means that site-to-site transportation is more economical and the TD34TN is also more efficient, allowing it to work for longer while using less fuel.

Also available are rubber-free non-marking tracks, the TD34TN is ideal for internal or clean applications, increasing the number of locations that the TD34TN can work, greatly improving its utilization.

For more information regarding the TD34TN or any other TrackDrive access platform, including the TD34T and TD42T, please got to our inquire now page.

TD34TN Features

60% (31º) Gradeability

Will climb very steep inclines

Excellent Traction

Continuous crawler tracks deliver better grip on uneven terrain

Weight Saving Design

Lower cost transportation & better fuel economy on site

Non-Marking Tracks Option

Rubber-free tracks available for indoor usage

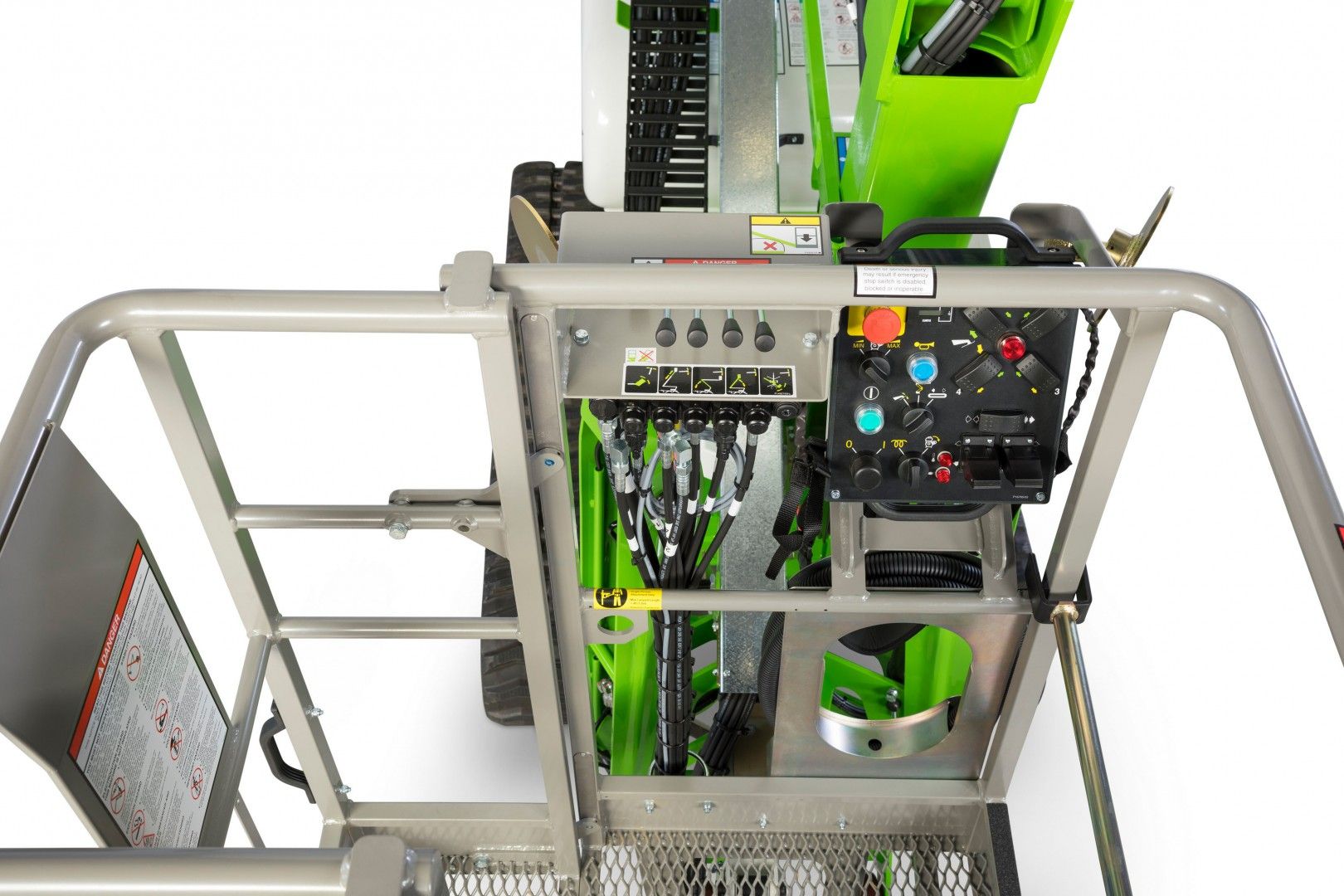

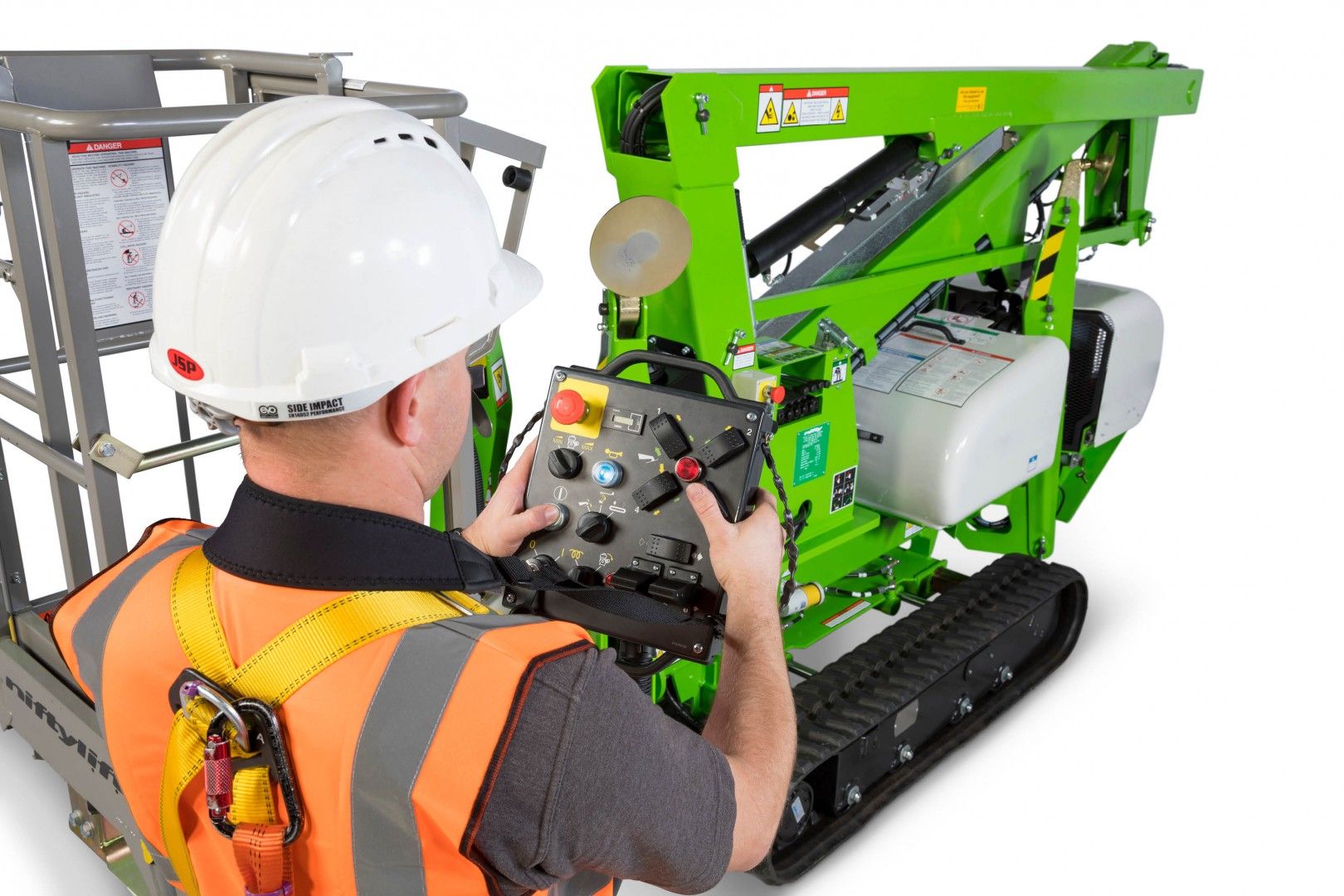

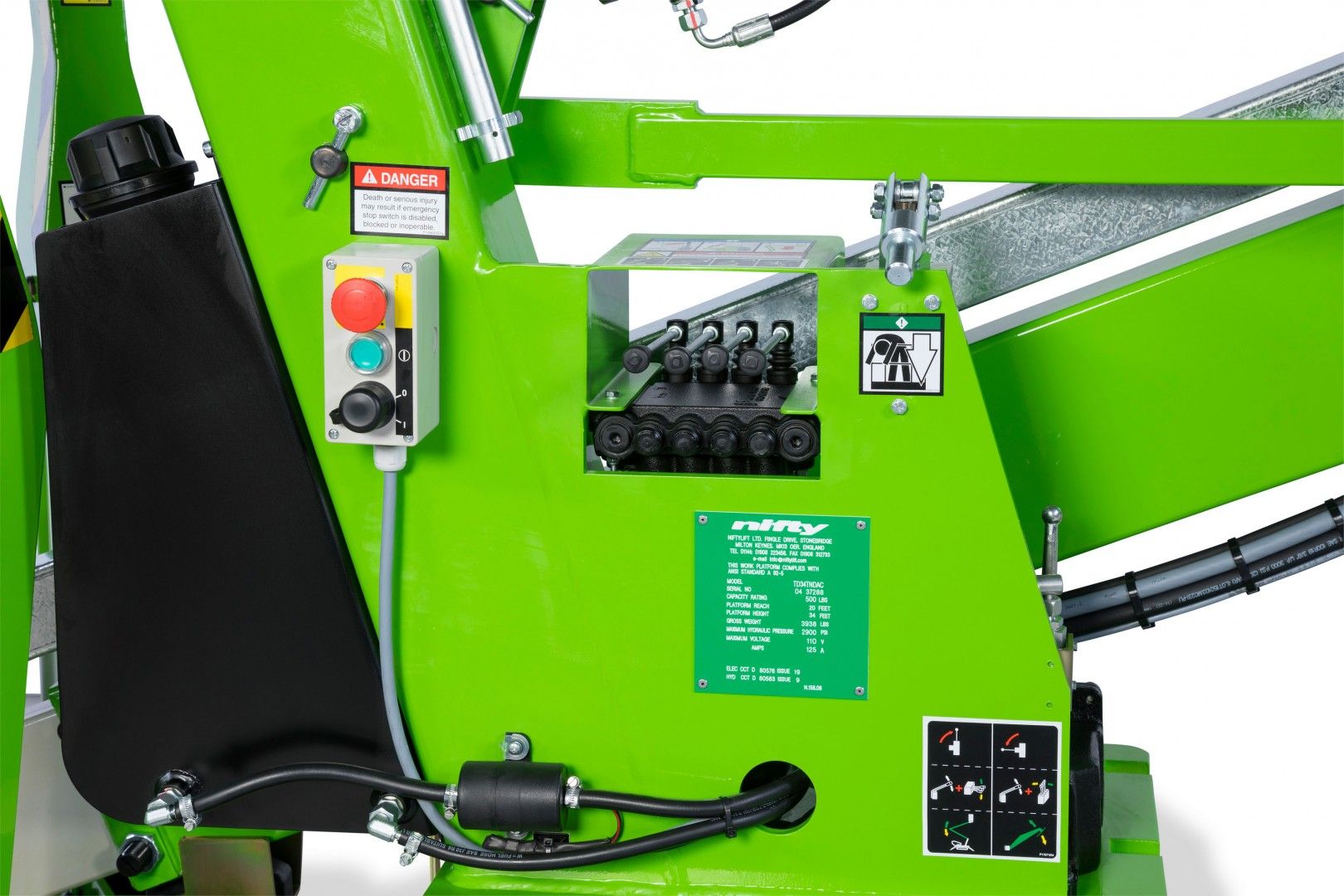

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

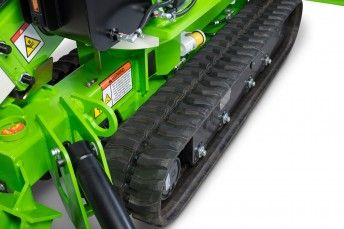

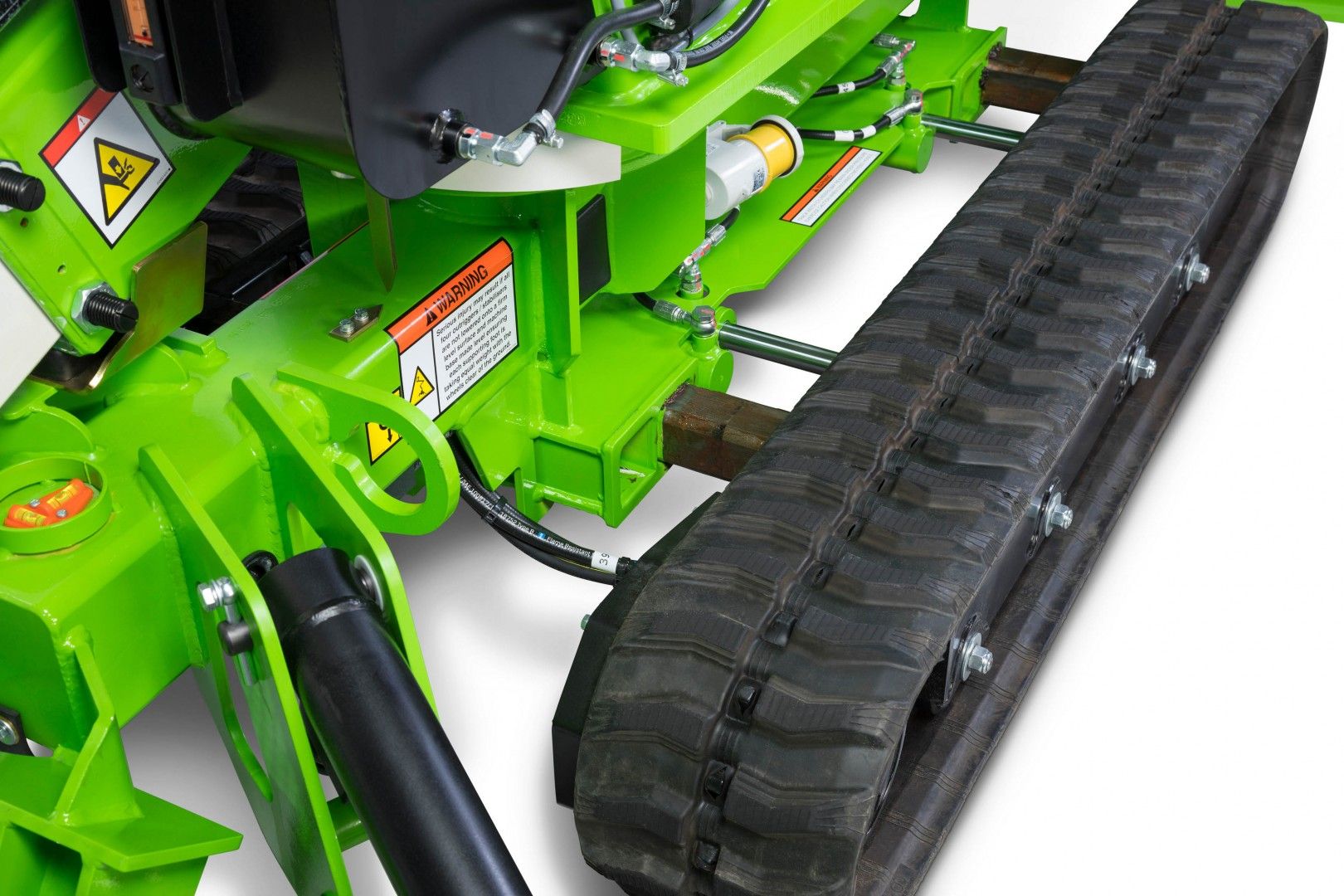

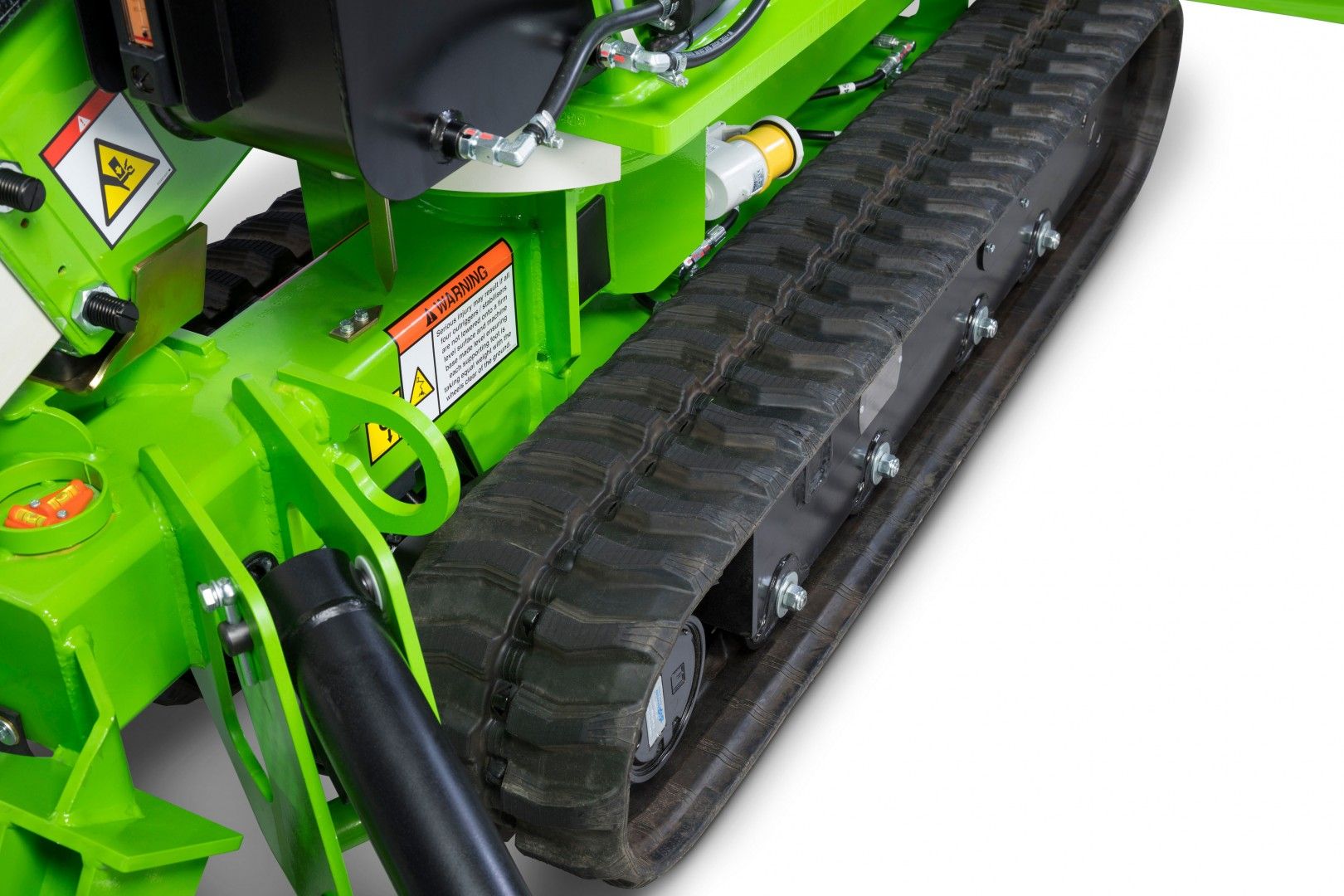

Variable Width Tracks

Access through 2ft 7in openings

TD34TN Specifications

Working Height (A)

12.2m 40ft

Working Outreach (C)

6.1m 20ft

Platform Height (B)

10.2m 33ft 6in

Machine Width (F)

1.15m 3ft 9in

Machine Height (D)

1.95m 6ft 5in

Machine Length (J)

4m 13ft 1in

Working Width (G)

3.0m 9ft 10in

Retracted Width (E)

0.8m 2ft 7in

Travel Speed

1.6km/h 1mph

Gradeability

60% / 31°

Minimum Weight

1890kg 4170lbs 3990lbs

Safe Working Load

200kg 440lbs 500lbs

Basket Width

1.1m 3ft 7in

Basket Depth

0.65m 2ft 2in

Maximum Slope

13% / 7.2°

Power Options

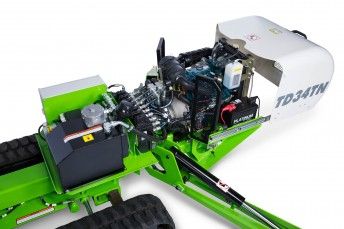

Diesel only (Kubota 722 - 18hp)

TD34TN Diagram

Diagram of TD120TN
