TD42T | Track Drive Access Platform

Working Height

14.7m 48ft 6in

Platform Height

12.7m 42ft

Working Outreach

7.55m 25ft

Safe Working Load

225kg 500lbs500lbs

Minimum Weight

2025kg 4500lbs4390lbs

Inquire Now Download Spec Sheet

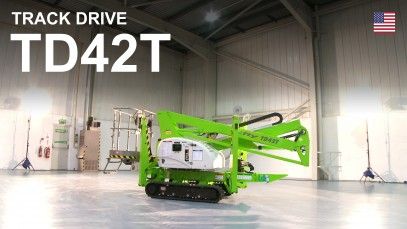

The TD42T TrackDrive access platform offers exceptional all-around performance from such a compact and low weight base, and with a 500lbs safe-working-load, plenty of capacity for tools as well.

Weight-saving design means that site-to-site transportation is more economical and the TD42T is also more efficient, allowing it to work for longer while using less fuel.

The TD42T is also available with rubber-free non-marking tracks. Ideal for internal or clean applications, these tracks will increase the number of locations that the TD42T  can work, greatly improving its utilization.

For more information regarding the TD42T or any other TrackDrive access platform, including the TD34TN and TD34T, please got to our inquire now page.

TD42T Features

Superb Gradeability

Will climb very steep inclines as high as 45% (24°)

Excellent Traction

Better grip on uneven terrain

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Weight Saving Design

Lower cost transportation & better fuel economy on site

Non-Marking Tracks

Optional rubber-free tracks available for indoor usage

TD42T Specifications

Working Height (A)

14.7m 48ft 6in

Working Outreach (C)

7.55m 25ft

Platform Height (B)

12.7m 42ft

Machine Width (F)

1.4m 4ft 7in

Machine Height (D)

2m 6ft 7in

Machine Length (J)

4.7m 15ft 5in

Working Width (G)

3.8m 12ft 6in

Travel Speed

2.1km/h 1.3mph


45% / 24°

Minimum Weight

2025kg 4500lbs 4390lbs

Safe Working Load

225kg 500lbs 500lbs

Basket Width

1.4m 4ft 7in

Basket Depth

0.7m 2ft 4in

Maximum Slope

21% / 12°

Power Options

Diesel & Mains

TD42T Diagram

Diagram of TD150T
