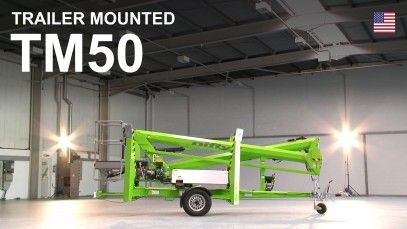

TM50 | Trailer Mounted Cherry Picker

Working Height

17.1m 56ft

Working Outreach

8.7m 28ft 6in

Safe Working Load

200kg 440lbs 500lbs

Minimum Weight

2160kg 4760lbs

With one of the largest working envelopes in its class the Nifty 170 trailer mount delivers maximum reach with stability and control.

Octagonal boom sections provide the Nifty 170 trailer mount strength without compromising on weight and the telescopic upper boom improves accuracy when positioning the platform.

Fully proportional hydraulic outriggers make setting up and levelling the Nifty 170 trailer mount quick and easy even on gradients.

The Nifty 170 trailer mount's outstanding reach makes it ideal for a wide range of applications.

The Nifty 170 trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.

For more information regarding the Nifty 170 or any other trailer mount, including the Nifty 150T and Nifty 210, please contact us.

Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Hydraulic Outriggers

For quick & easy setup

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Bi-Energy Available

Optimising utilization

Traction Drive Option

Improved manoeuvrability on site

Specifications

Working Height (A)

17.1m 56ft

Working Outreach (C)

8.7m 28ft 6in

Platform Height (B)

15.1m 49ft 6in

Machine Width (F)

1.65m 5ft 5in

Machine Height (D)

2.15m 7ft

Machine Length (J)

6.2m 20ft 4in

Working Width (G)

4.4m 14ft 5in

Minimum Weight

2160kg 4760lbs

Safe Working Load

200kg 440lbs 500lbs

Cage Rotation

Available

Cage Width

1.1m 3ft 7in

Cage Depth

0.65m 2ft 2in

Outrigger Type

Hydraulic

Traction Drive

Available

Power Options

Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)

Diagram

Diagram of Nifty 170
