TM64 | Towable Cherry Picker
Working Height
21m 69ft
Platform Height
19m 62ft 6in
Working Outreach
12m 39ft 6in
Safe Working Load
225kg 500lbs500lbs
Minimum Weight
3495kg 7700lbs7610lbs

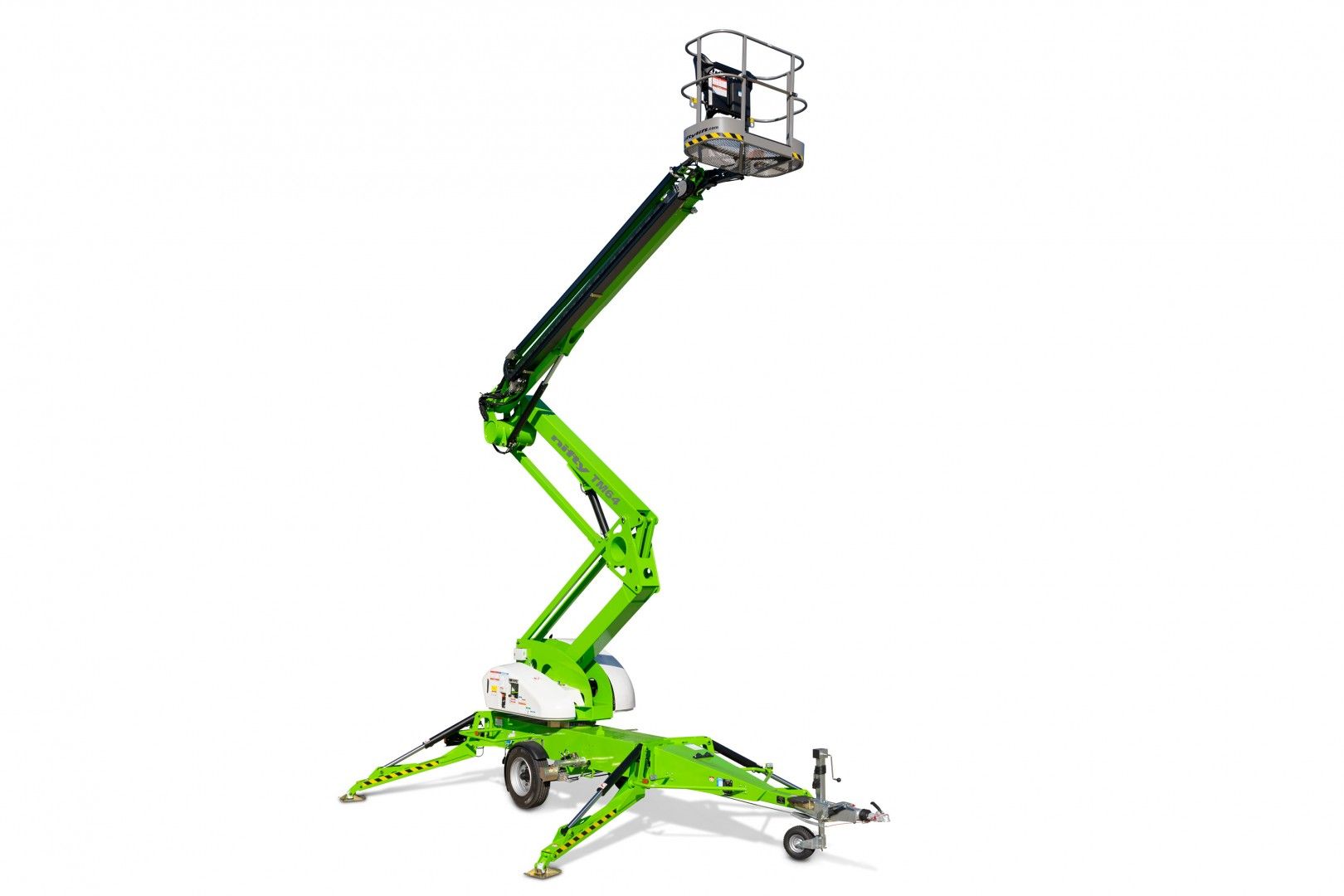

The Nifty TM64 towable cherry picker has one of the largest unrestricted working envelopes in its class.
The TM64's special boom design makes it ideal for working near walls or buildings. A single control allows its platform to move vertically while remaining parallel to the job, saving time and improving efficiency.
Platform rotation provides the TM64 greater maneuverability in the air and its fully proportional controls give the user precise control when positioning the platform, even on hard to reach jobs.
Hydraulic outriggers make it quick and easy to set up and its traction drive system, operated from the platform, allows the TM64 to be positioned on-site with minimal effort.
For more information regarding the TM64 or any other towable cherry picker, including the TM42T and TM50, please got to our inquire now page.
TM64 Features
Platform Rotation
Better platform positioning
Unrestricted Outreach
225kg capacity at max outreach

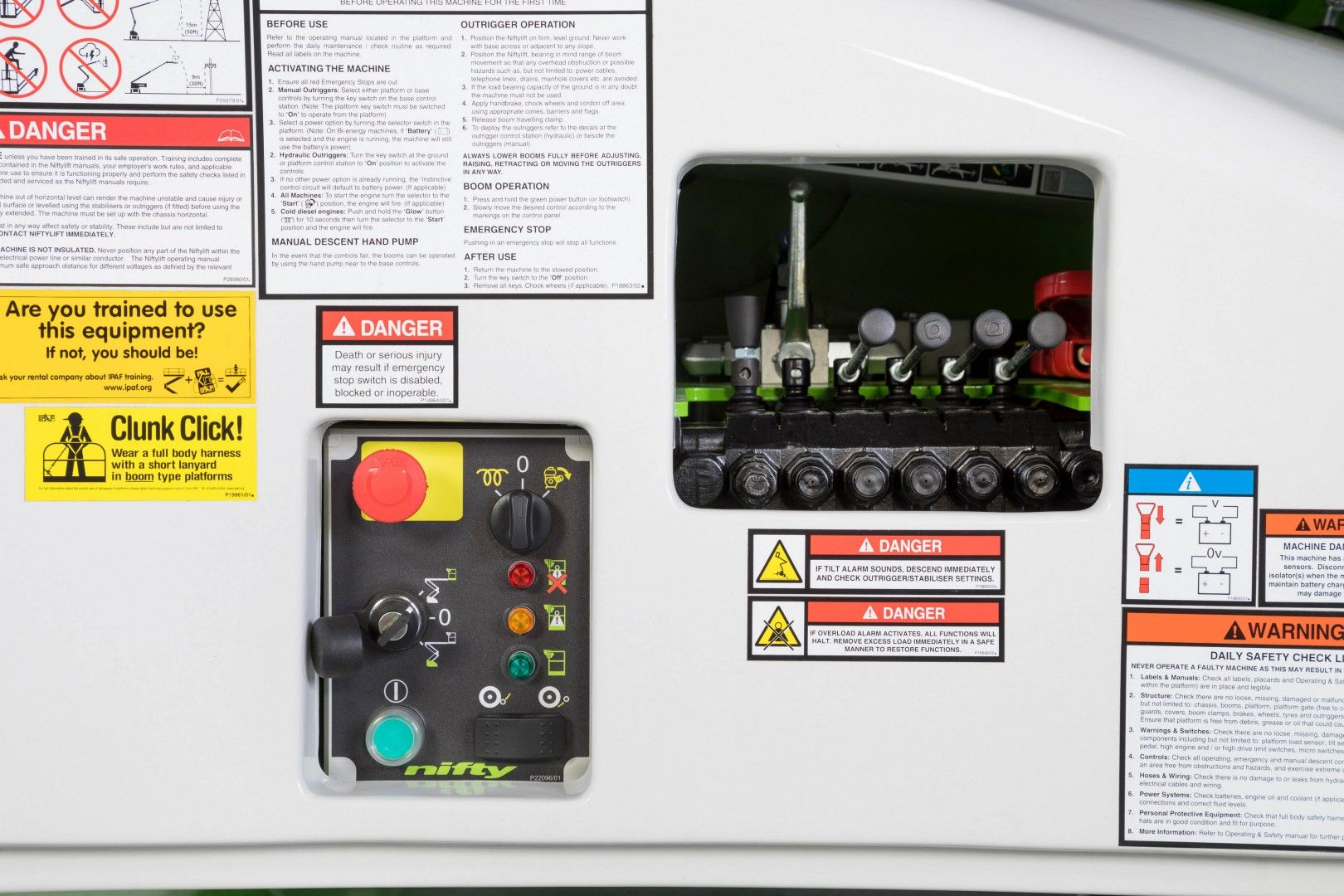

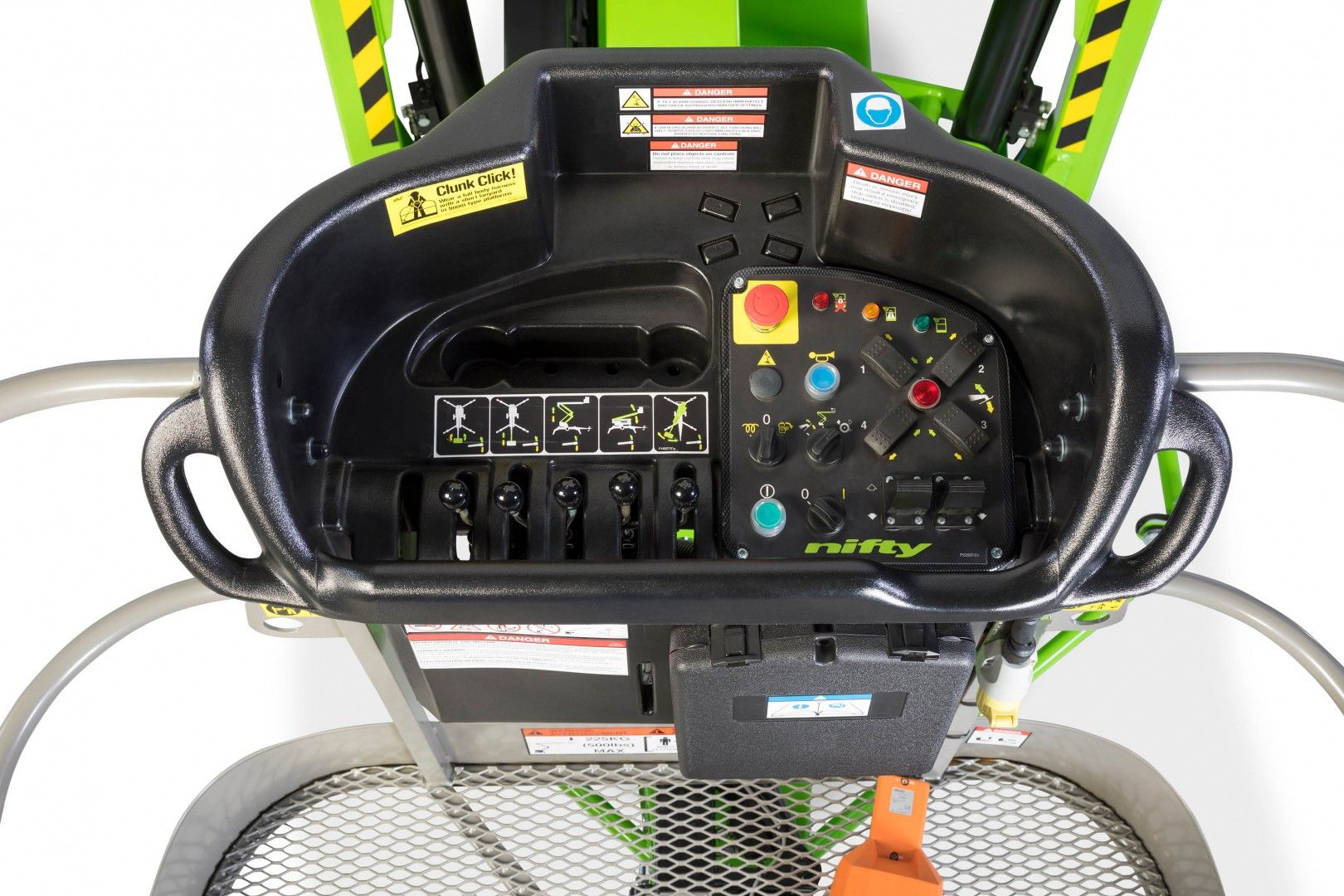

Fully Proportional Hydraulic Controls
Simple, reliable & easy to maintain

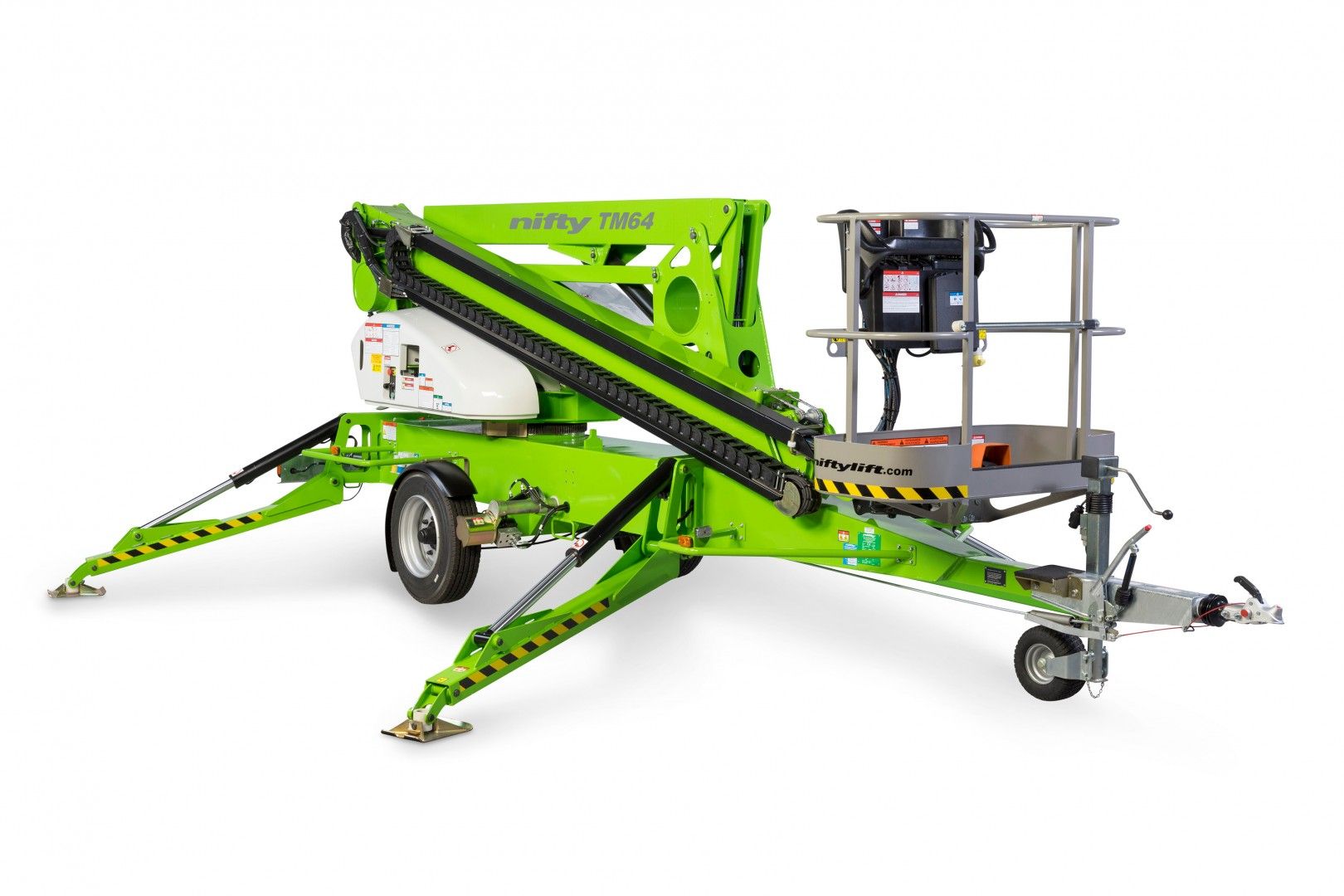

Hydraulic Outriggers
For quick and easy setup

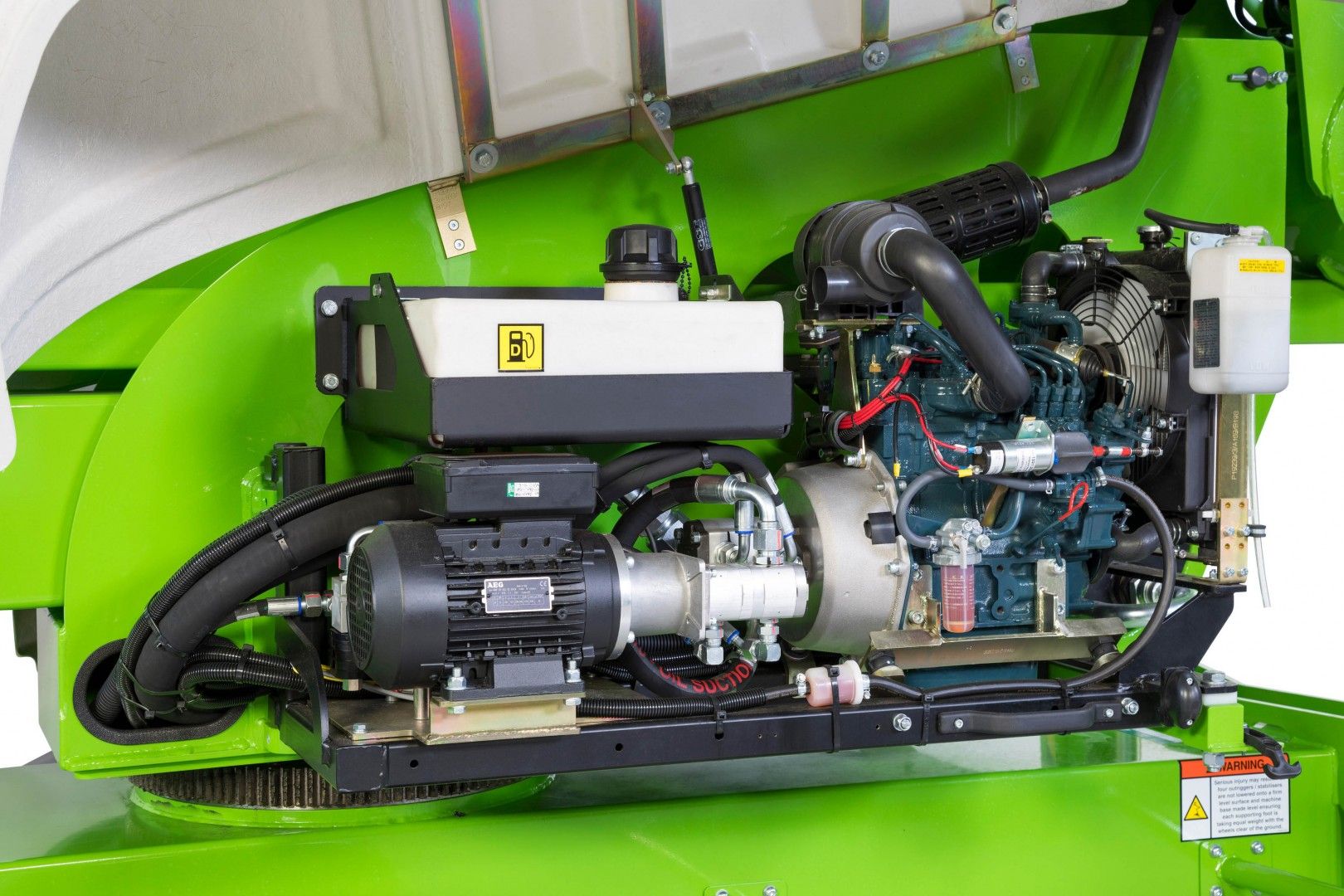

Bi-Energy Available
Optimising utilization

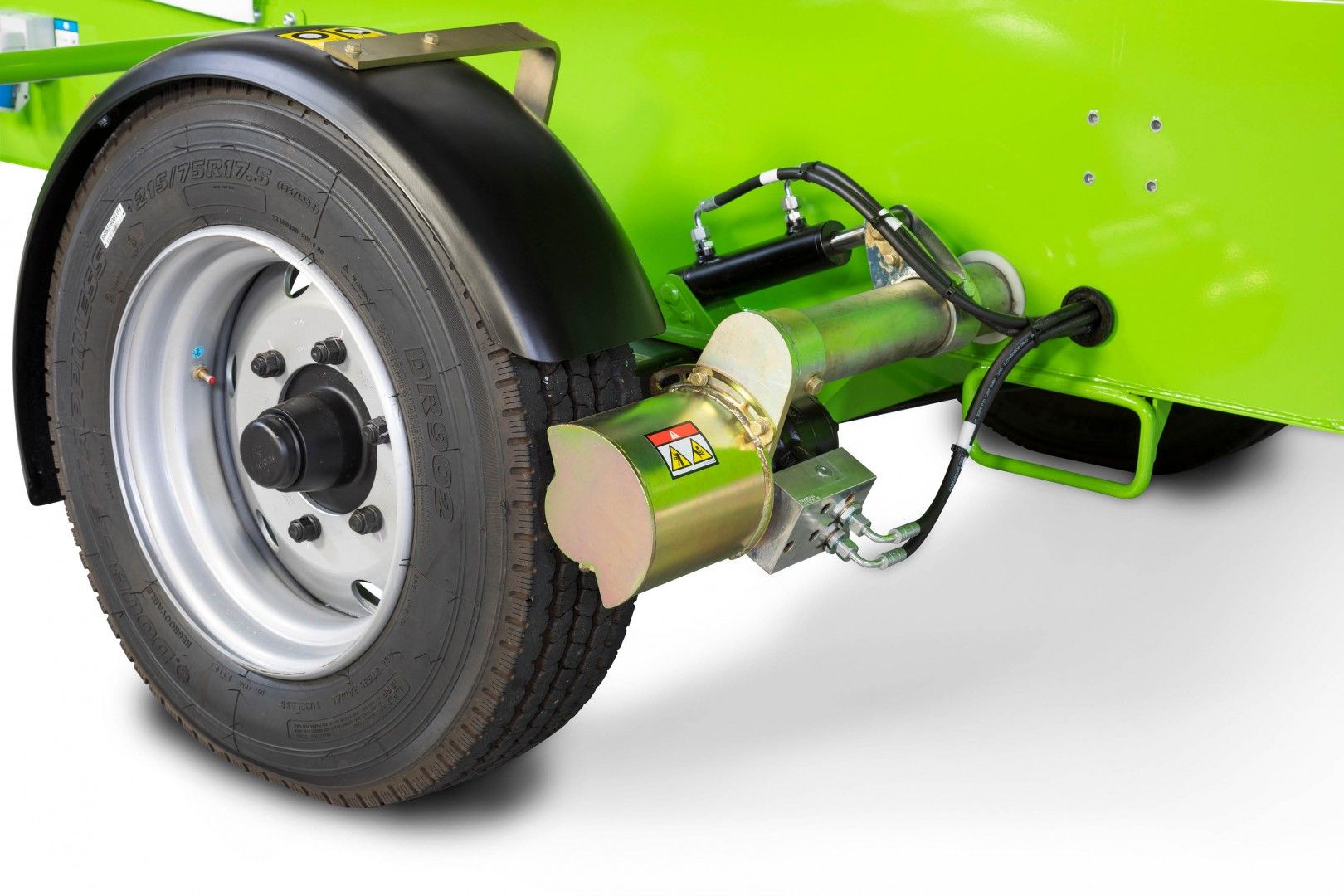

Traction Drive
Driven from the platform for easy maneuverability on site
TM64 Specifications
Working Height (A)
21m 69ft
Working Outreach (C)
12m 39ft 6in
Platform Height (B)
19m 62ft 6in
Machine Width (F)
1.8m 5ft 11in
Machine Height (D)
2.27m 7ft 5in
Machine Length (J)
6.95m 22ft 10in
Working Width (G)
4.3m 14ft 1in
Minimum Weight
3495kg 7700lbs 7610lbs
Safe Working Load
225kg 500lbs 500lbs
Basket Rotation
100°
Basket Width
1.4m 4ft 7in
Basket Depth
0.7m 2ft 4in
Maximum Slope
17% / 9.5°
Outrigger Type
Hydraulic
Traction Drive
Standard
TM64 Diagram
