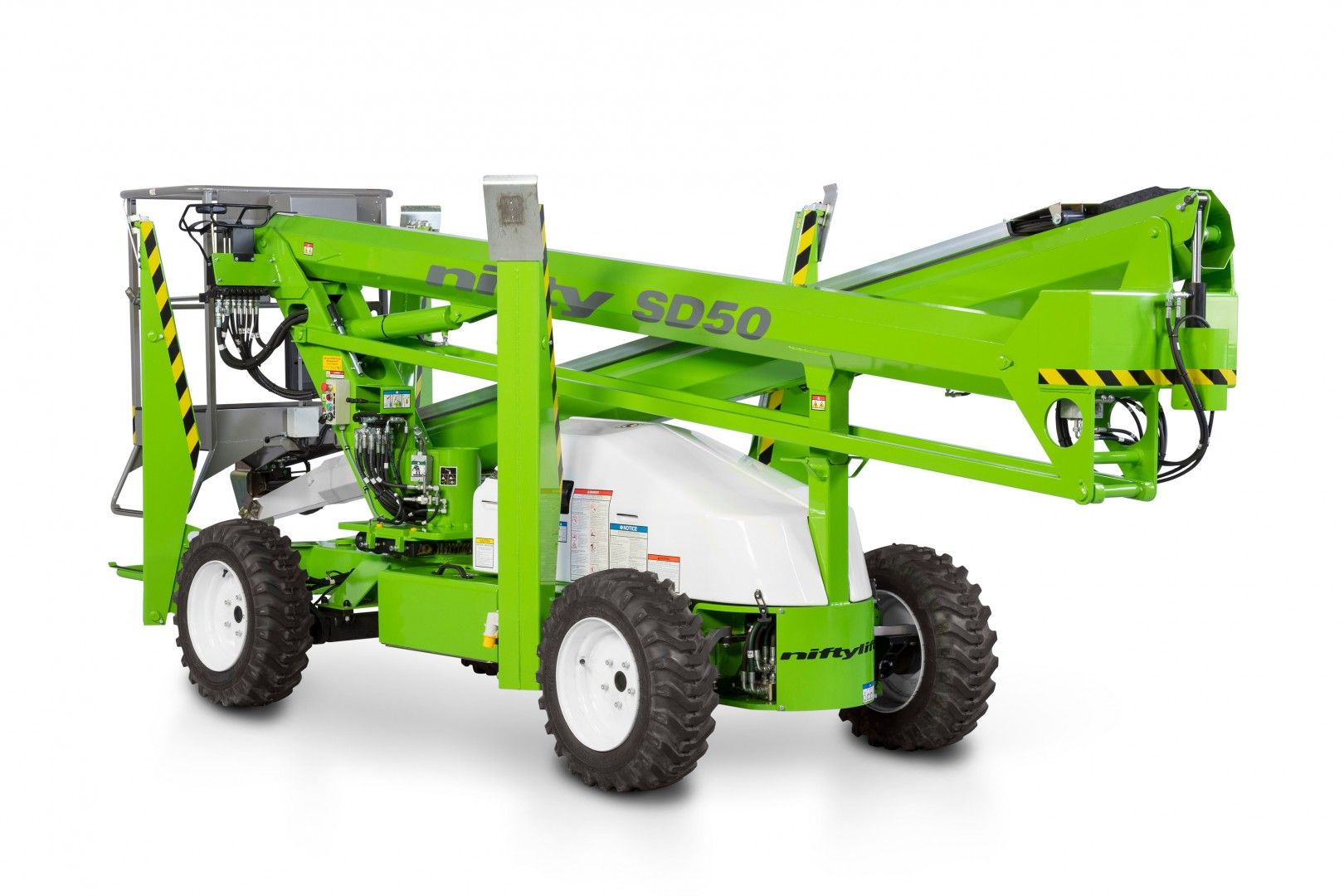

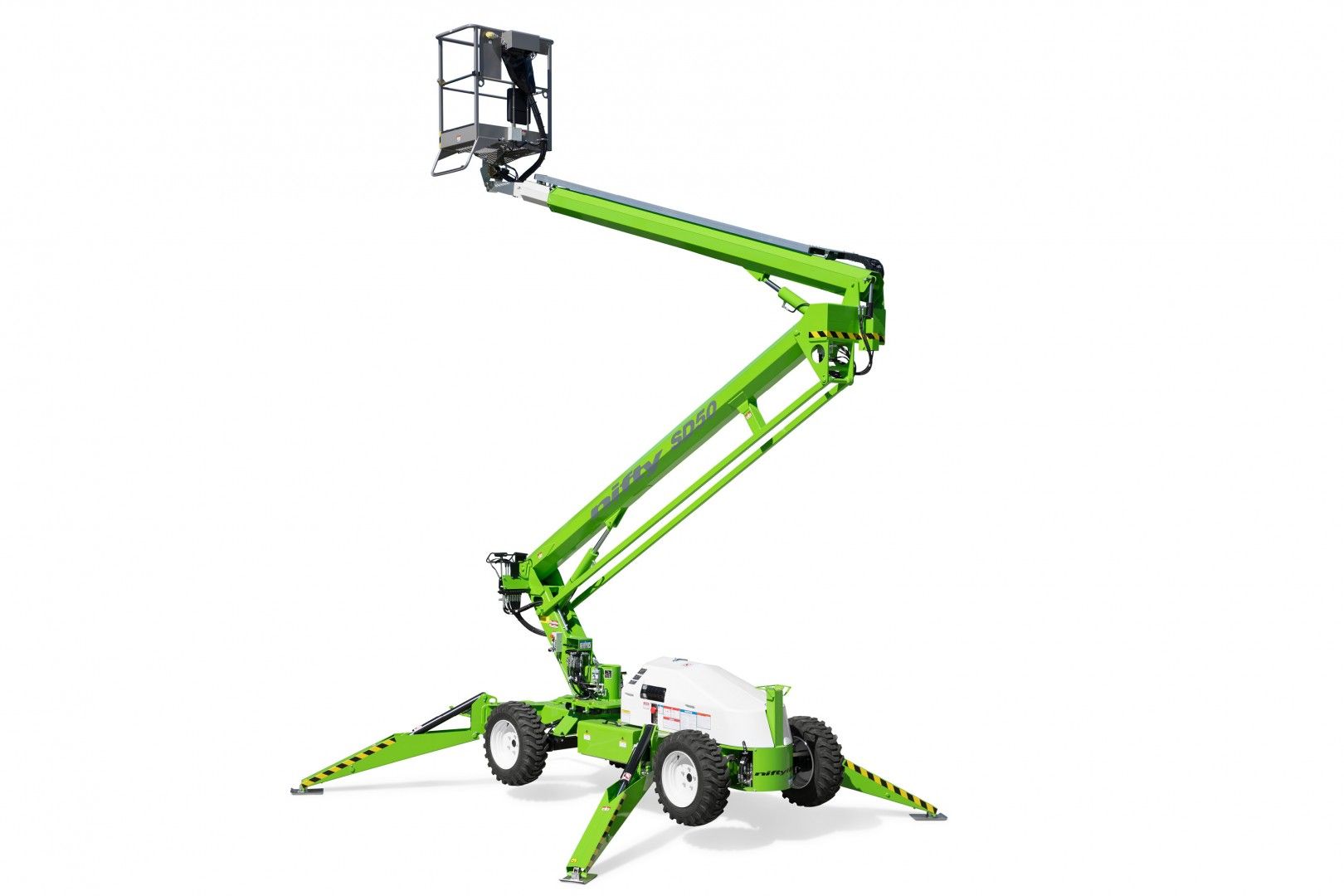

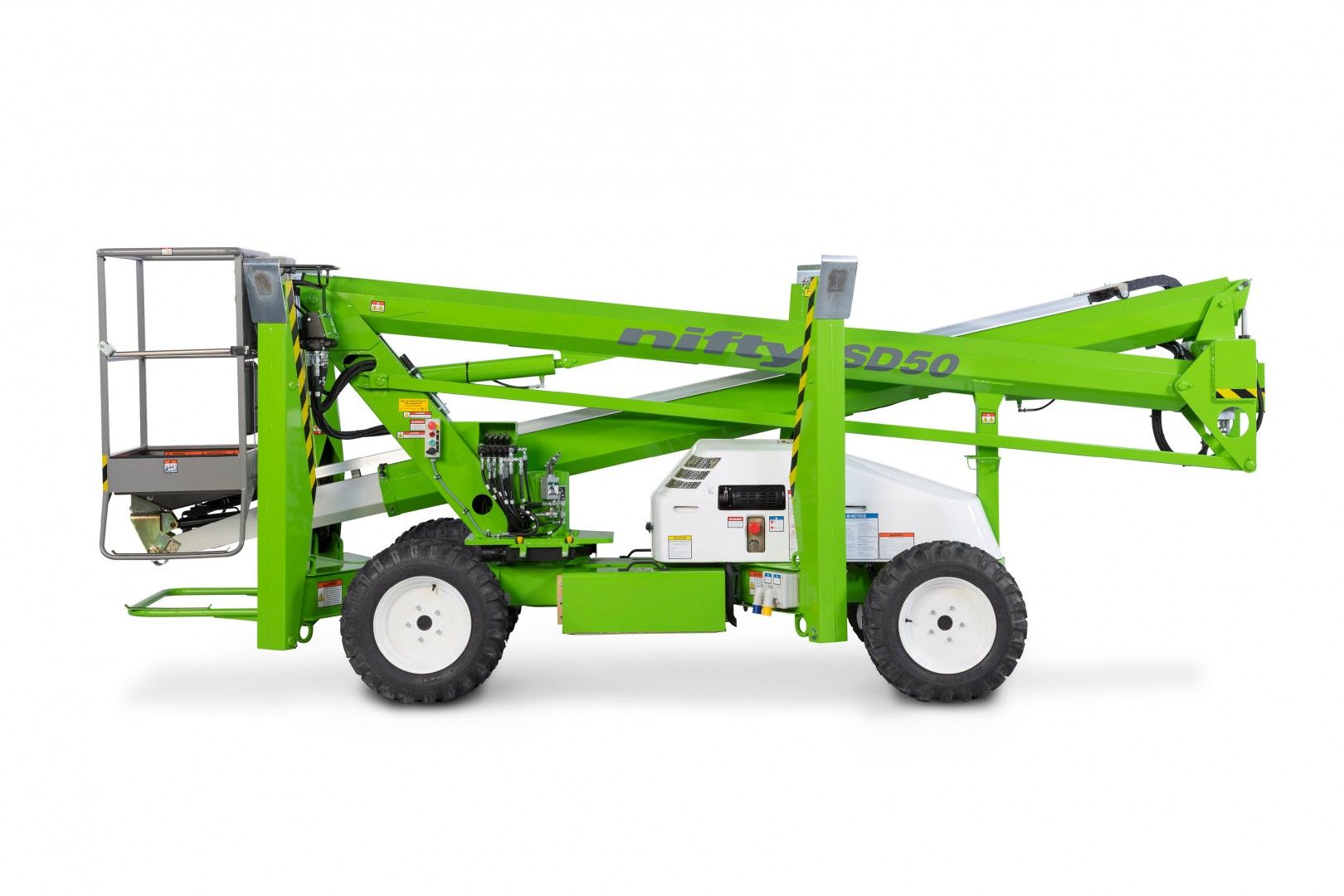

SD50 4x4 Self Drive Work Platform

Working Height

17.1m 56ft

Platform Height

15.1m 49ft 6in

Working Outreach

8.7m 28ft 6in

Safe Working Load

200kg 440lbs500lbs

Minimum Weight

2750kg 6060lbs5950lbs

Inquire Now Download Spec Sheet

The SD50 work platform combines the best of our self-propelled and trailer mounted ranges.

It offers the same impressive reach capabilities as the TM50 but with the versatility of a robust yet very lightweight drivable base.

This allows the user to maneuver, set up and operate the SD50 work platform without leaving the platform, especially on uneven surfaces.

Rough terrain tires and 4WD as standard allow the SD50 work platform to maneuver easily over a wide range of site conditions and its outstanding reach makes it ideal for tree care or construction site work.

For more information regarding the SD50, or any other self-drive work platform, such as the SD64 4x4x4, please go to our inquire now page.

SD50 4x4 Features

Weight Saving Design

Easily transported & maneuvered on site

Telescopic Upper Boom

Greater accuracy when positioning the platform

Bi-Energy Available

Optimising utilization

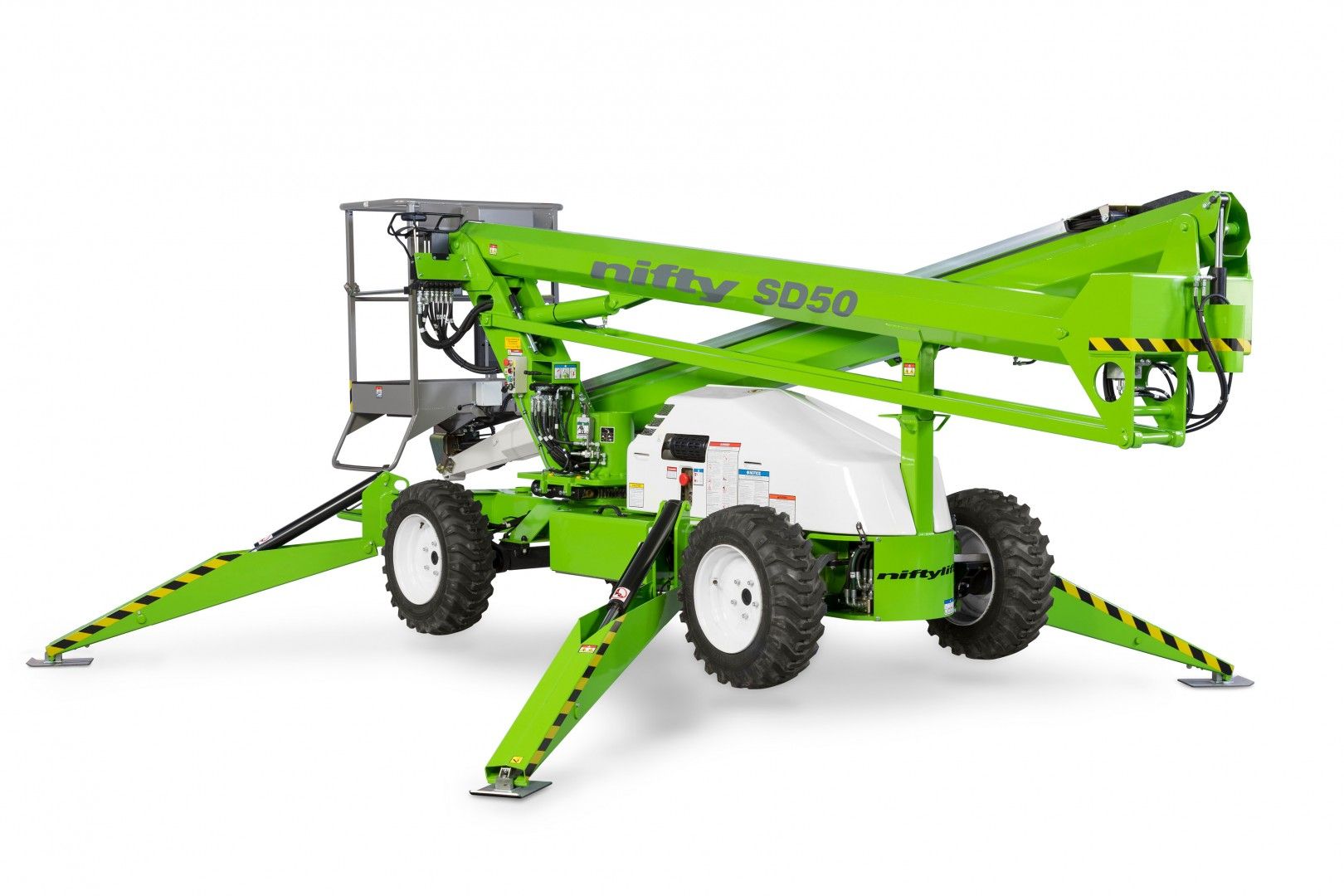

Hydraulic Outriggers

For quick & easy set up

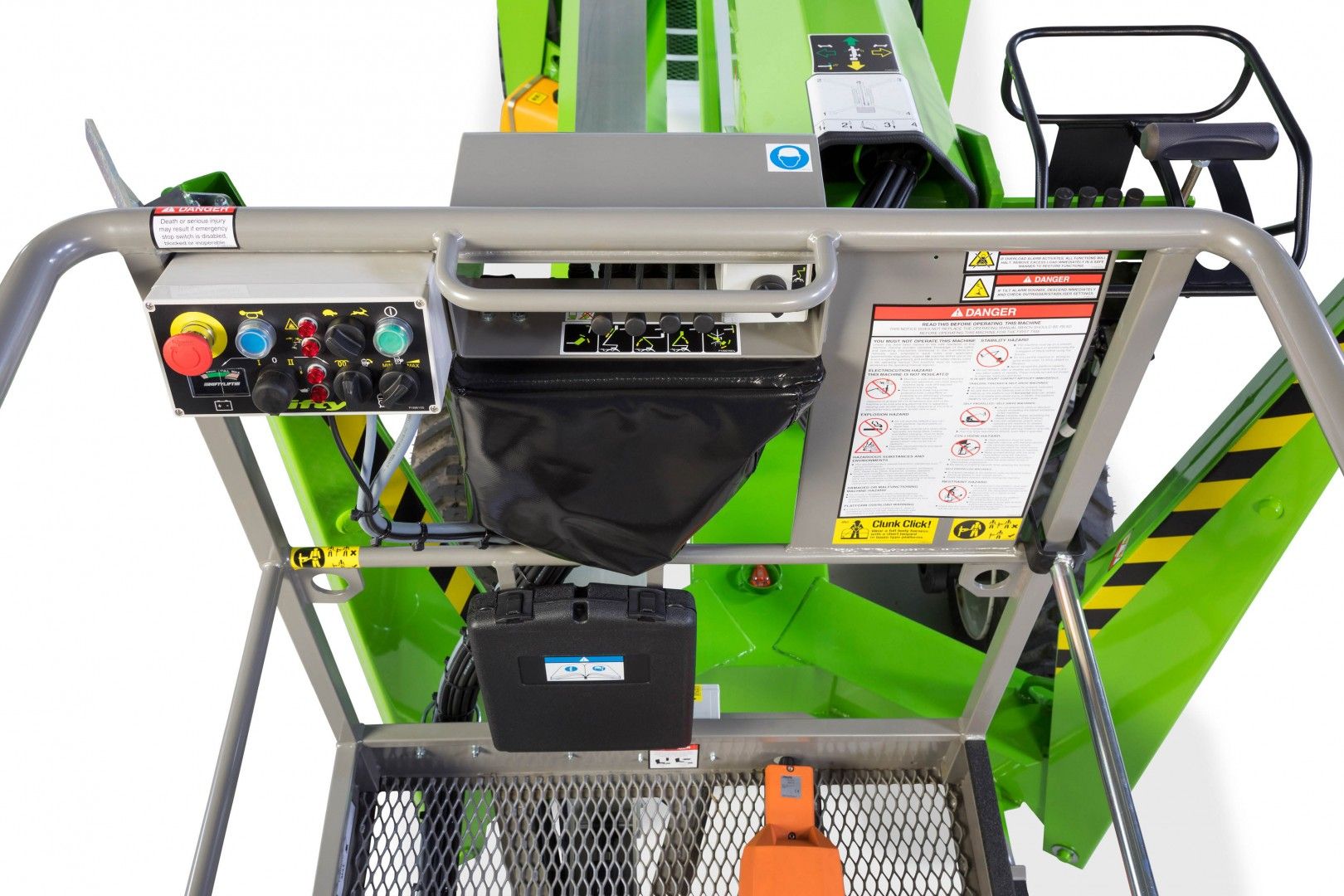

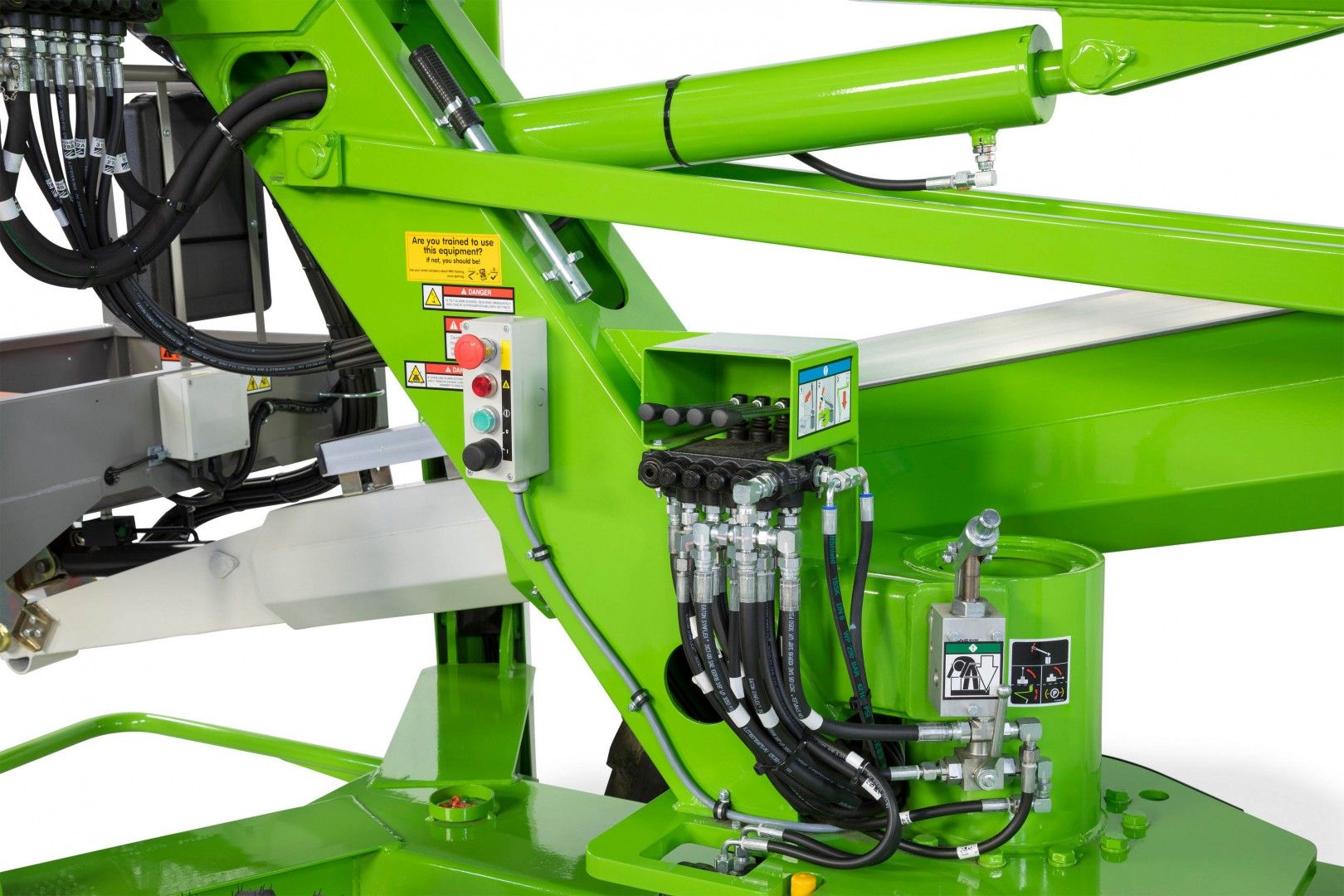

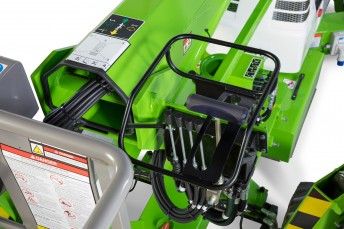

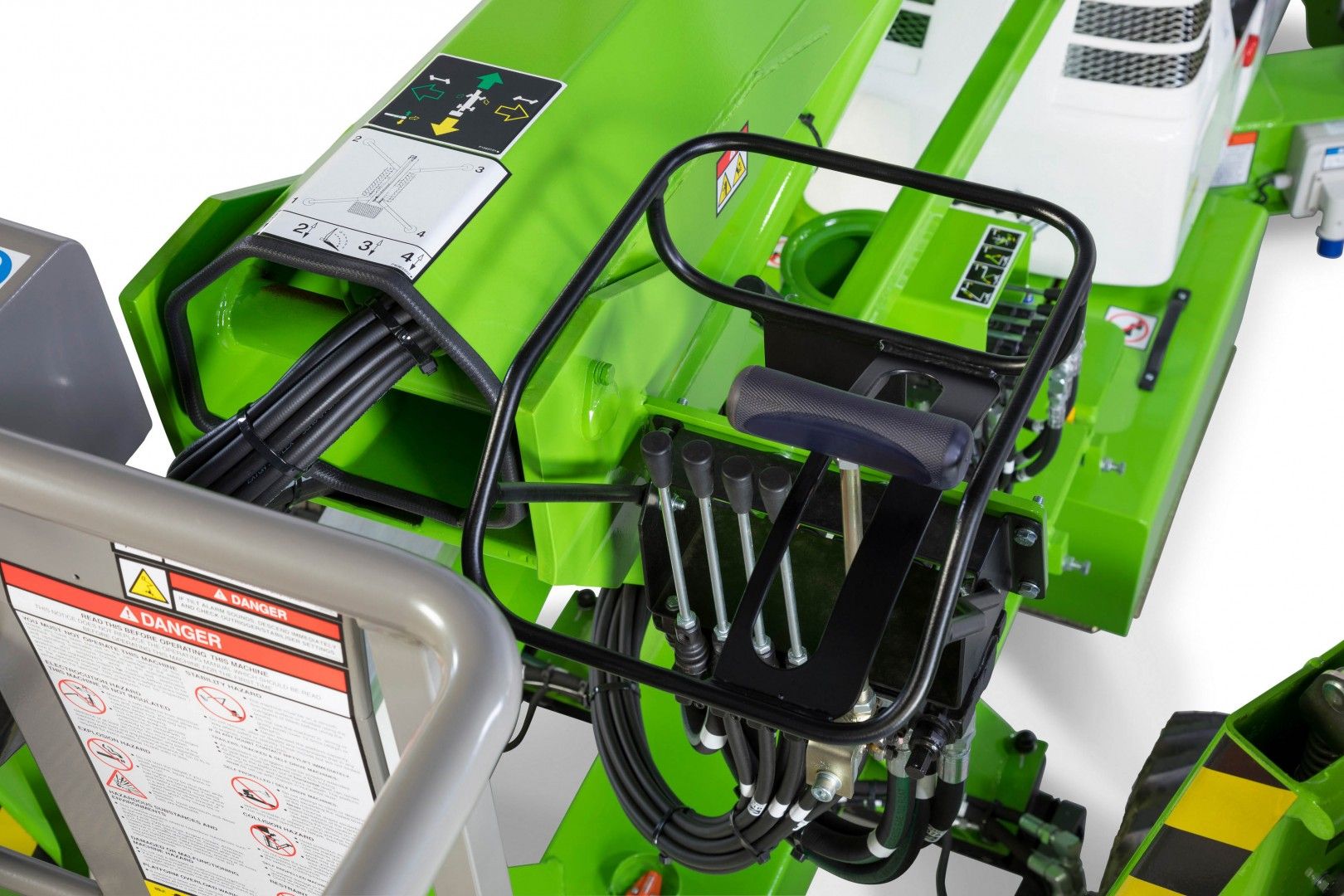

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

SD50 4x4 Specifications

Working Height (A)

17.1m 56ft

Working Outreach (C)

8.7m 28ft 6in

Platform Height (B)

15.1m 49ft 6in

Machine Width (F)

1.6m 5ft 3in

Machine Height (D)

2.2m 7ft 3in

Machine Length (J)

5.6m 18ft 4in

Working Width (G)

4.4m 14ft 5in

Travel Speed

8.3km/h 5.2mph

Gradeability

30% / 17°

Turning Radius

5.95m 19ft 6in

Minimum Weight

2750kg 6060lbs 5950lbs

Safe Working Load

200kg 440lbs 500lbs

Basket Width

1.1m 3ft 7in

Basket Depth

0.65m 2ft 2in

Maximum Slope

9% / 5°

Power Options

Diesel only
Bi-Energy (Engine & Battery)

SD50 4x4 Diagram

Diagram of SD170 4x4
