SP50E | Self Propelled Boom Lift

Working Height

17.2m 56ft 6in

Platform Height

15.2m 50ft

Working Outreach

9.4m 31ft

Safe Working Load

225kg 500lbs500lbs

Minimum Weight

4970kg 10960lbs10960lbs

Inquire Now Download Spec Sheet

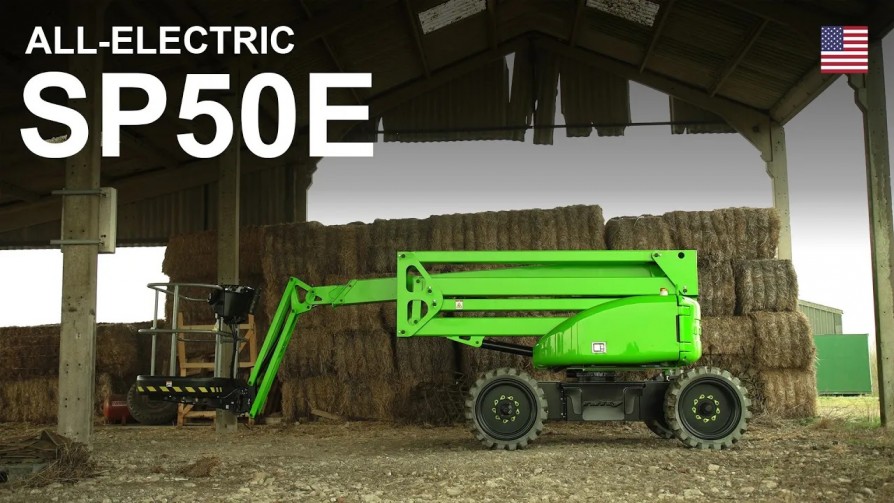

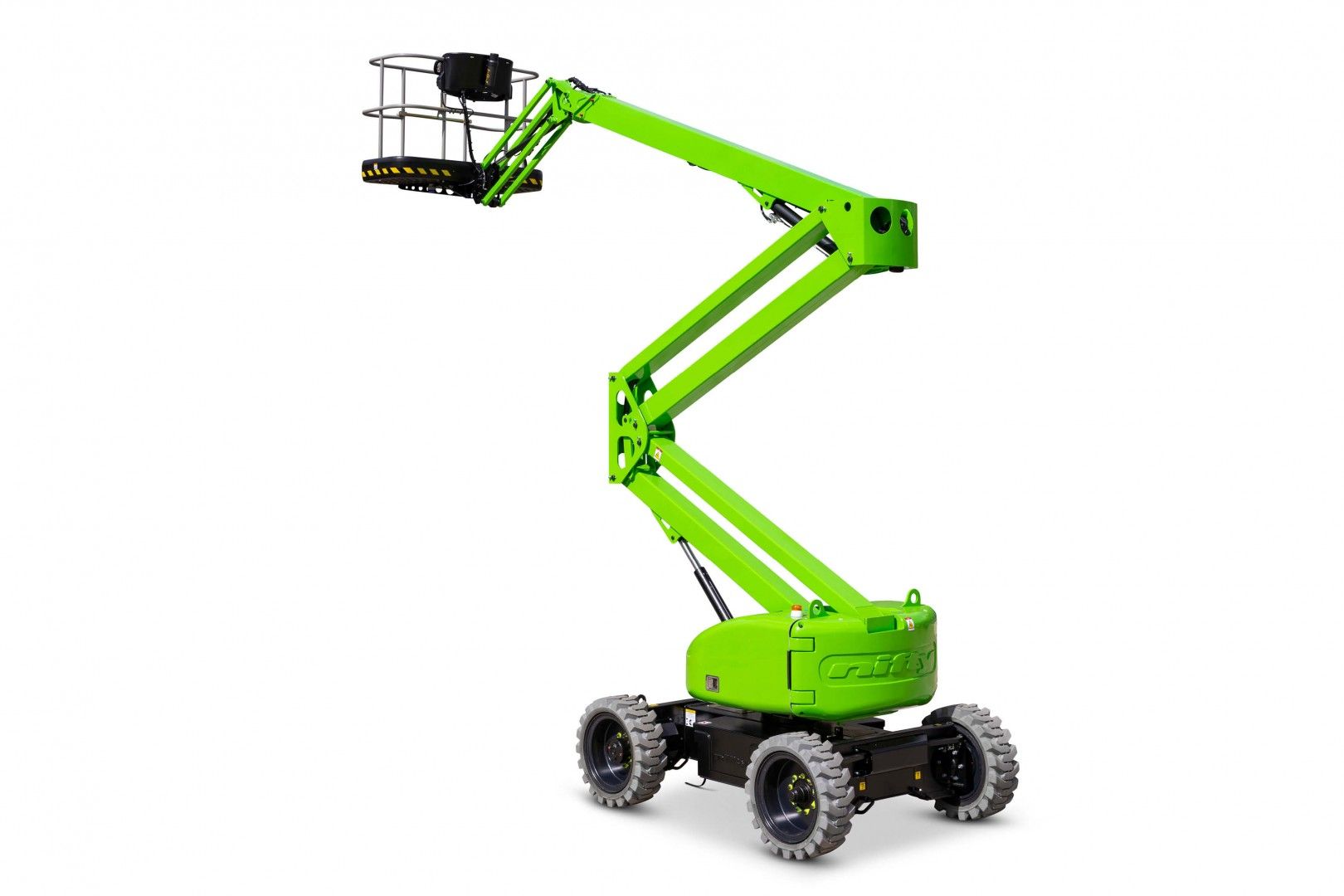

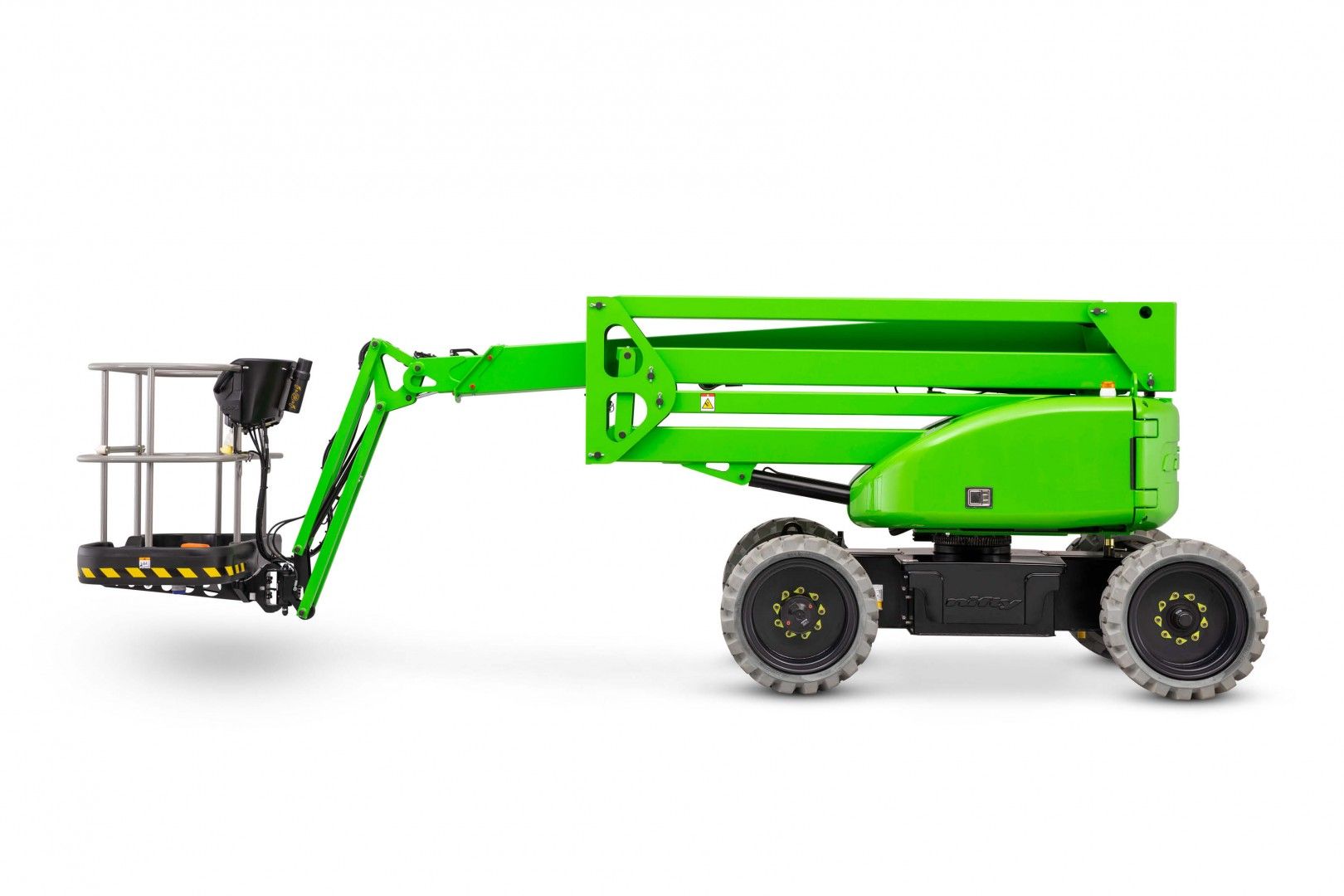

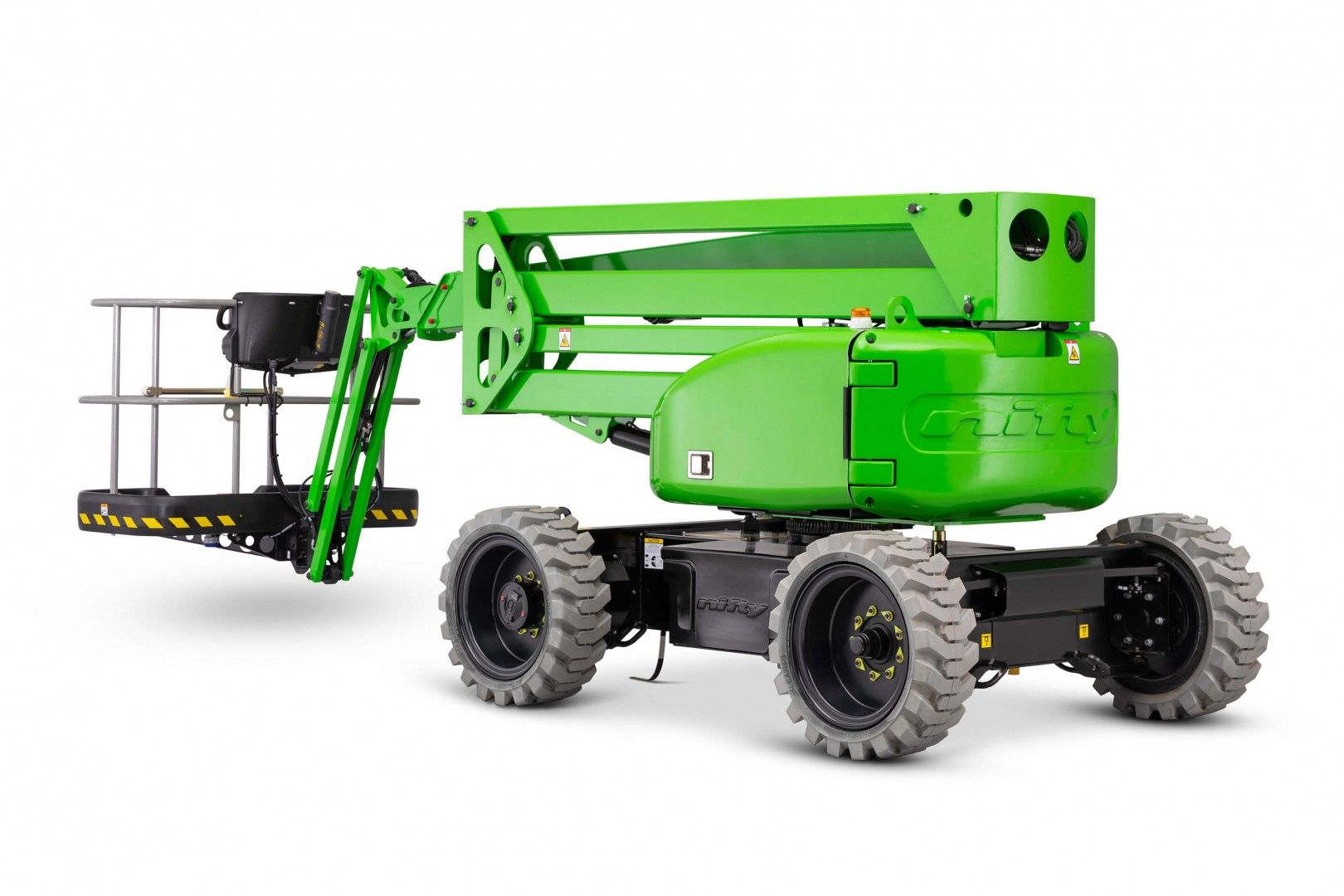

The SP50E is a zero-emission self-propelled boom lift and will lift two persons and their tools to a platform height of 45ft or a working outreach of 31ft.

Weighing just 10,960 lbs, the SP50E combines innovative weight and space-saving design with an excellent turning circle to deliver outstanding maneuverability on-site and lower transportation costs.

The SP50E's 5ft 11in wide ToughCage offers more space for materials and tools, and a 150° jib-boom with 180° cage rotation increases accuracy when positioning the cage. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage give strength and durability, while the multi-award-winning SiOPS® provides built-in operator protection.

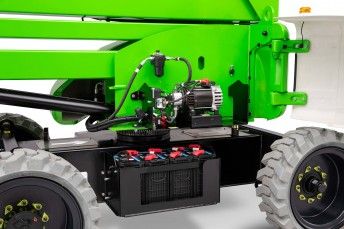

The SP505E utilizes a super-efficient battery power system with an all-electric drive that allows the batteries to work for four times as long, so more work can be completed on a charge and running costs reduced. This makes the SP50E supremely versatile as it's equally happy working inside or out but is particularly effective in locations where emissions or noise need to be limited.

The SP50E is also fitted with Niftylink as standardNiftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights help better understand machine usage, performance and life cycle, and real-time error-code reporting. By maximizing machine 'up-time' and reducing lifetime running costs, Niftylink significantly improves efficiency and profitability, helping you get more from your Niftylift.

For more information regarding the SP50E or any other self-propelled boom lift from Niftylift, including the SP50N and SP50 4x4, please contact Niftylift.

SP50E Features

Zero-emission operation

Clean, quiet and can work anywhere

All-Electric Drive

Outstanding battery performance

Maintenance-Free Batteries

Reducing maintenance downtime

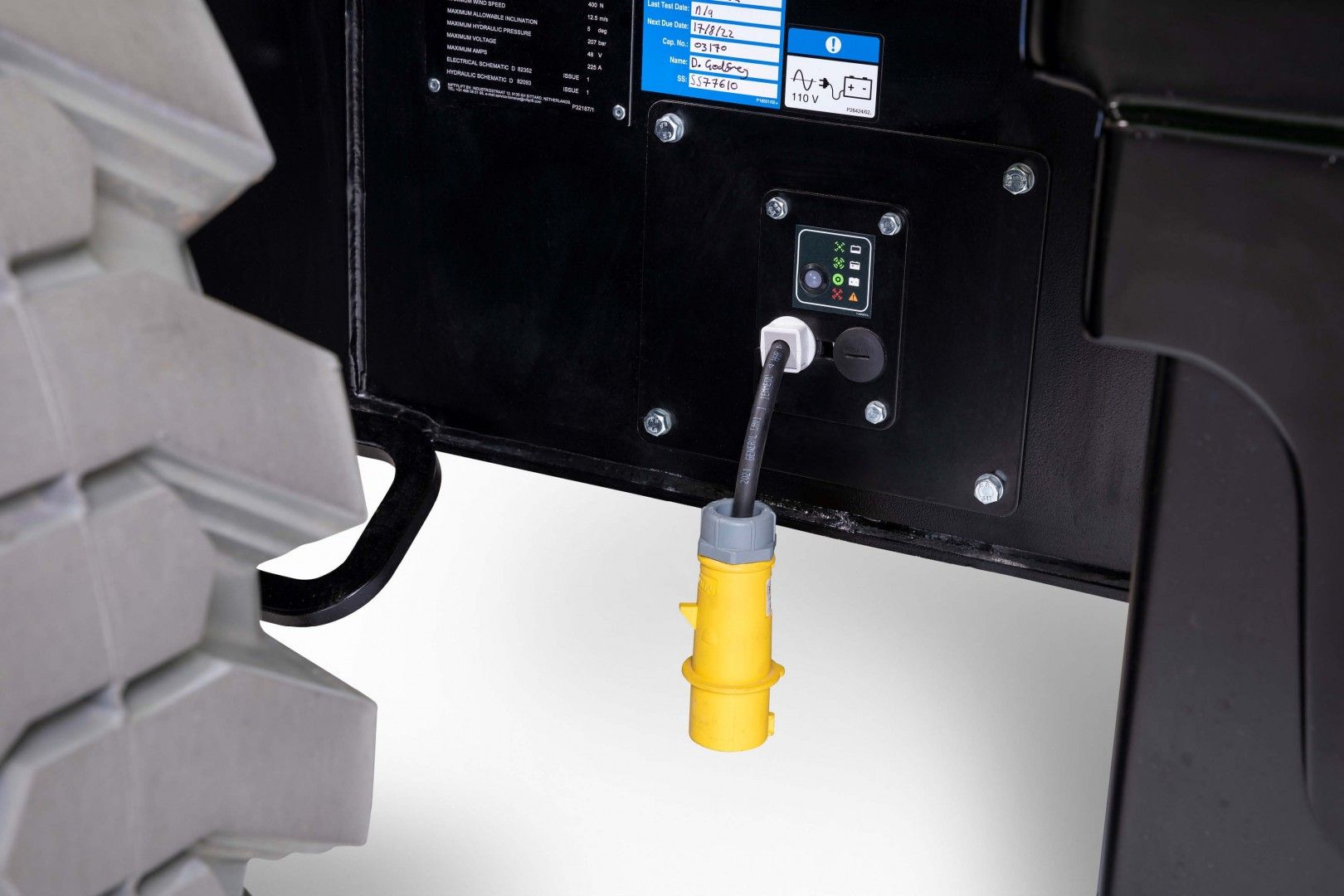

Full Battery Monitoring & Protection

Increasing battery life and lowering costs

GVW Only 10,960 lbs

Lightest in its class

180° Platform Rotation & Jib-Boom

Improved access to applications

35% Gradeability

Impressive 2WD performance

Superb Maneuverability

12ft 2in outside turning radius

ToughCage with SiOPS®

Multi-award winning operator protection

Niftylink® as Standard

Advanced Telematics for your Niftylift

SP50E Specifications

Working Height (A)

17.2m 56ft 6in

Working Outreach (C)

9.4m 31ft

Platform Height (B)

15.2m 50ft

Machine Width (F)

2m 6ft 7in

Machine Height (D)

2.1m 6ft 11in

Machine Length (J)

6.35m 20ft 10in

Transport Length (H)

4.8m 15ft 9in

Travel Speed

6km/h 3.7mph



Turning Radius

3.7m 12ft 2in

Minimum Weight

4970kg 10960lbs 10960lbs

Safe Working Load

225kg 500lbs 500lbs

Jib Boom Arc


Basket Rotation


Basket Width

1.8m 5ft 11in

Basket Depth

0.85m 2ft 9in

Power Options


SP50E Diagram

Diagram of HR17E
