SP50N | Self Propelled Boom Lift

Working Height

17m 56ft

Platform Height

15m 49ft 6in

Working Outreach

9.7m 32ft

Safe Working Load

225kg 500lbs 500lbs

Minimum Weight

7780 (E)/7650 (H) kg 17155 (E)/16870 (H) lbs

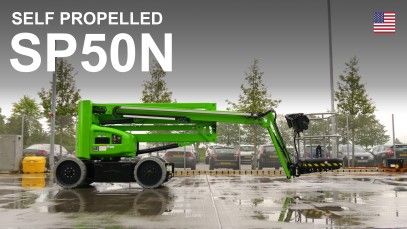

The new SP50N will lift 2 men and their tools to a platform height of 49ft 6in or a working outreach of 32ft. Its useful 180° rotating cage and jib-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks easier and quicker to complete.

An impressive working outreach with zero-tail-swing helps the SP50N to reach awkward jobs, even when space is limited, and its efficient power system allows the batteries to work for longer, so more work can be completed and running costs reduced.

The SP50N also incorporates Niftylift's ToughCage and multi-award-winning SiOPS® safety system which eliminates sustained involuntary operation by instantly halting machine movement if the user is pushed against the control console.

The SP50N's 4ft 11in width and 6ft 6in height enable travel through restricted spaces. Optional non-marking tyres mean that it can work both inside and out making it ideal for maintenance or industrial work.

For more information regarding the SP50N or any other self-propelled boom lift, including the SP34N and SP45N, please contact us.

Features

4ft 11in Narrow Chassis

Allowing operation in confined areas

180° Platform Rotation with Jib-Boom

Improving user access

ToughCage with SiOPS® as Standard

Multi-award9winning user protection

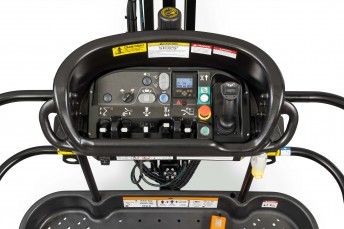

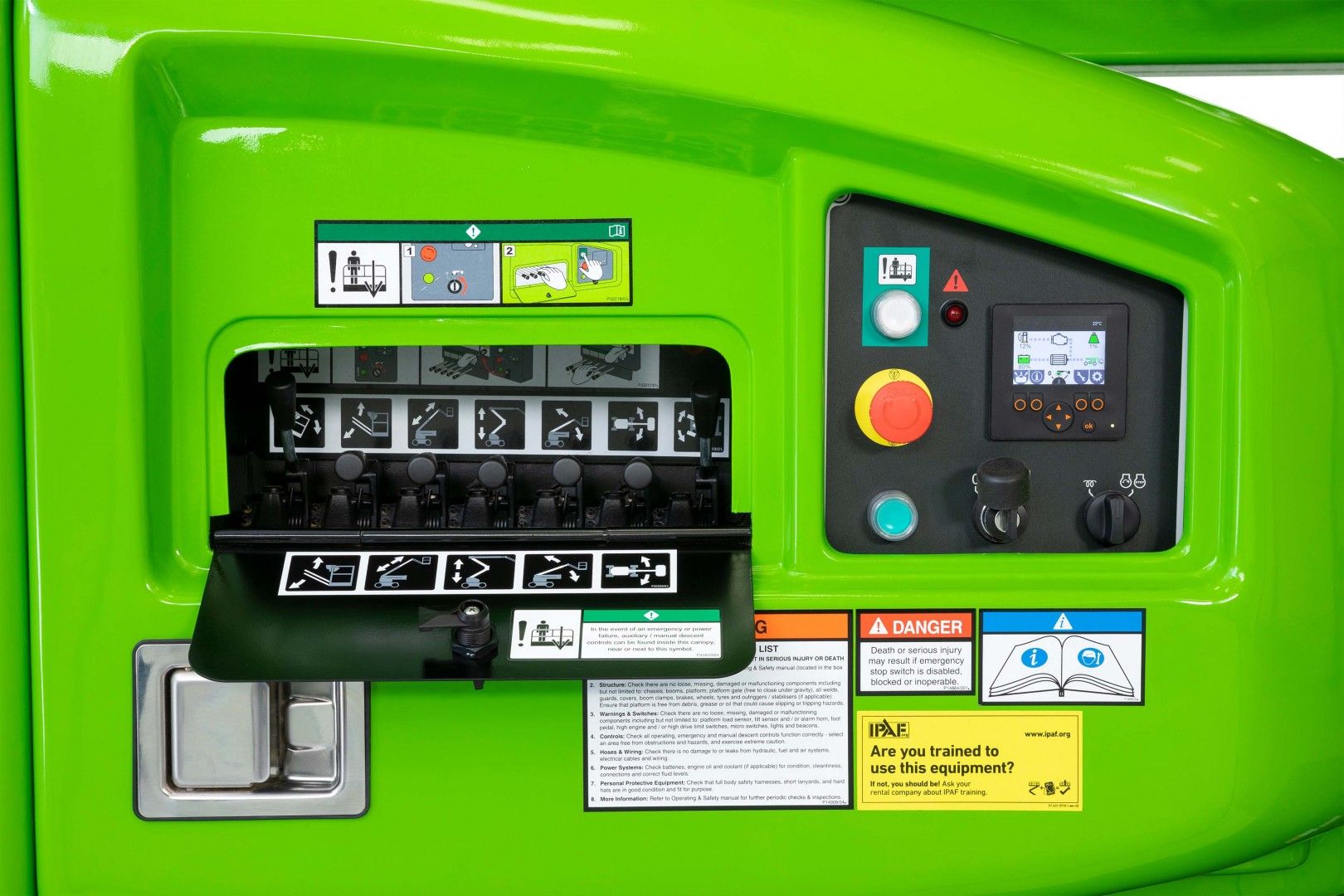

Proportional Multi-Function Control

Fast & precise operation

Super-Efficient Power System

Maximising battery output to do more with each charge

Specifications

Working Height (A)

17m 56ft

Working Outreach (C)

9.7m 32ft

Platform Height (B)

15m 49ft 6in

Machine Width (F)

1.5m 4ft 11in

Machine Height (D)

1.99m 6ft 6in

Machine Length (J)

6.4m 21ft

Transport Length (H)

4.93m 16ft 2in

Travel Speed

3.5km/h 2.2mph

Gradeability

25%

Gradeability

14°

Turning Radius

3.5m 11ft 6in

Minimum Weight

7780 (E)/7650 (H) kg 17155 (E)/16870 (H) lbs

Safe Working Load

225kg 500lbs 500lbs

Jib Boom Arc

150°

Basket Rotation

180°

Basket Width

1.5m 4ft 11in

Basket Depth

0.8m 2ft 8in

Power Options

Battery only
Hybrid (Battery & Diesel)

Diagram

Diagram of HR17N
