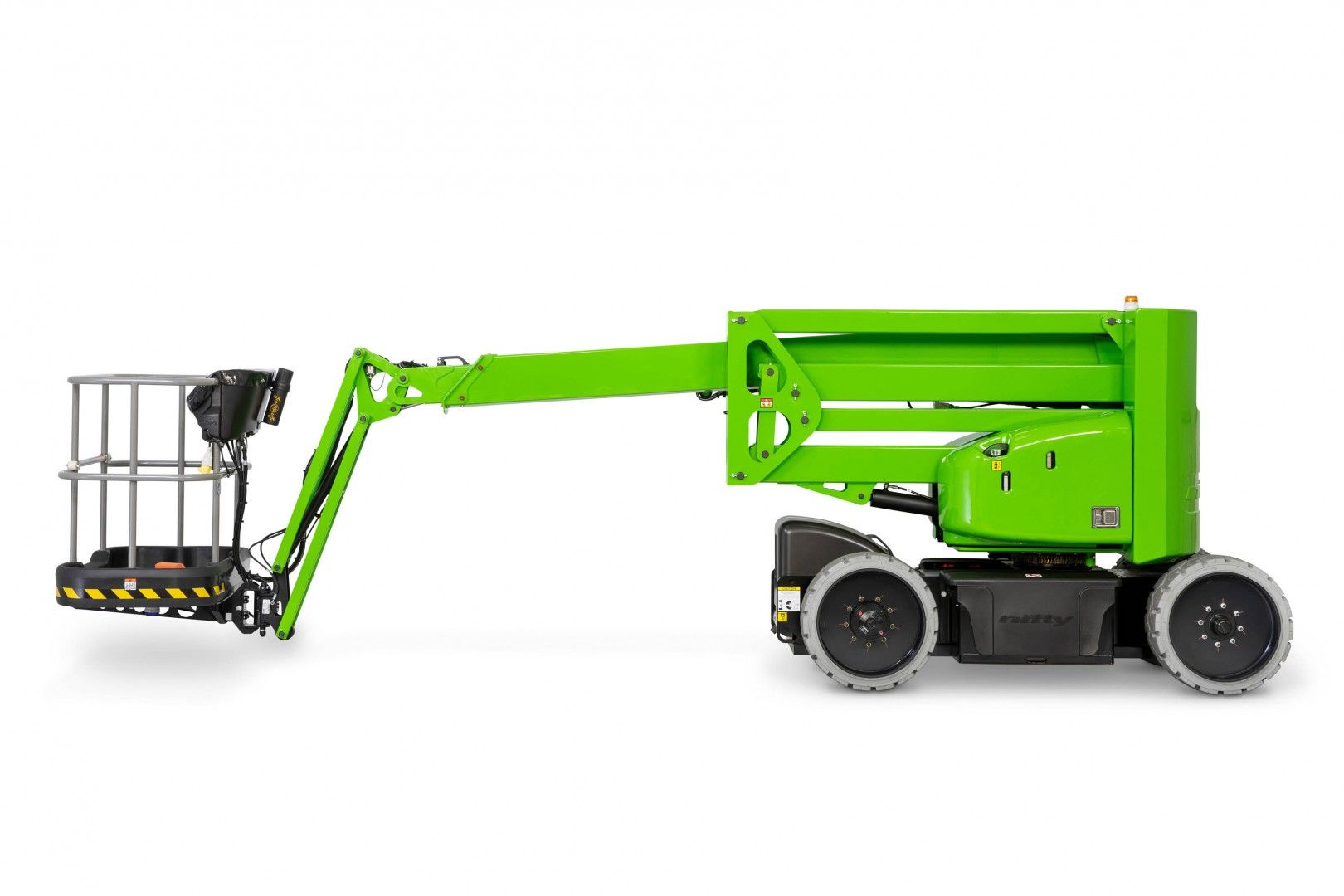

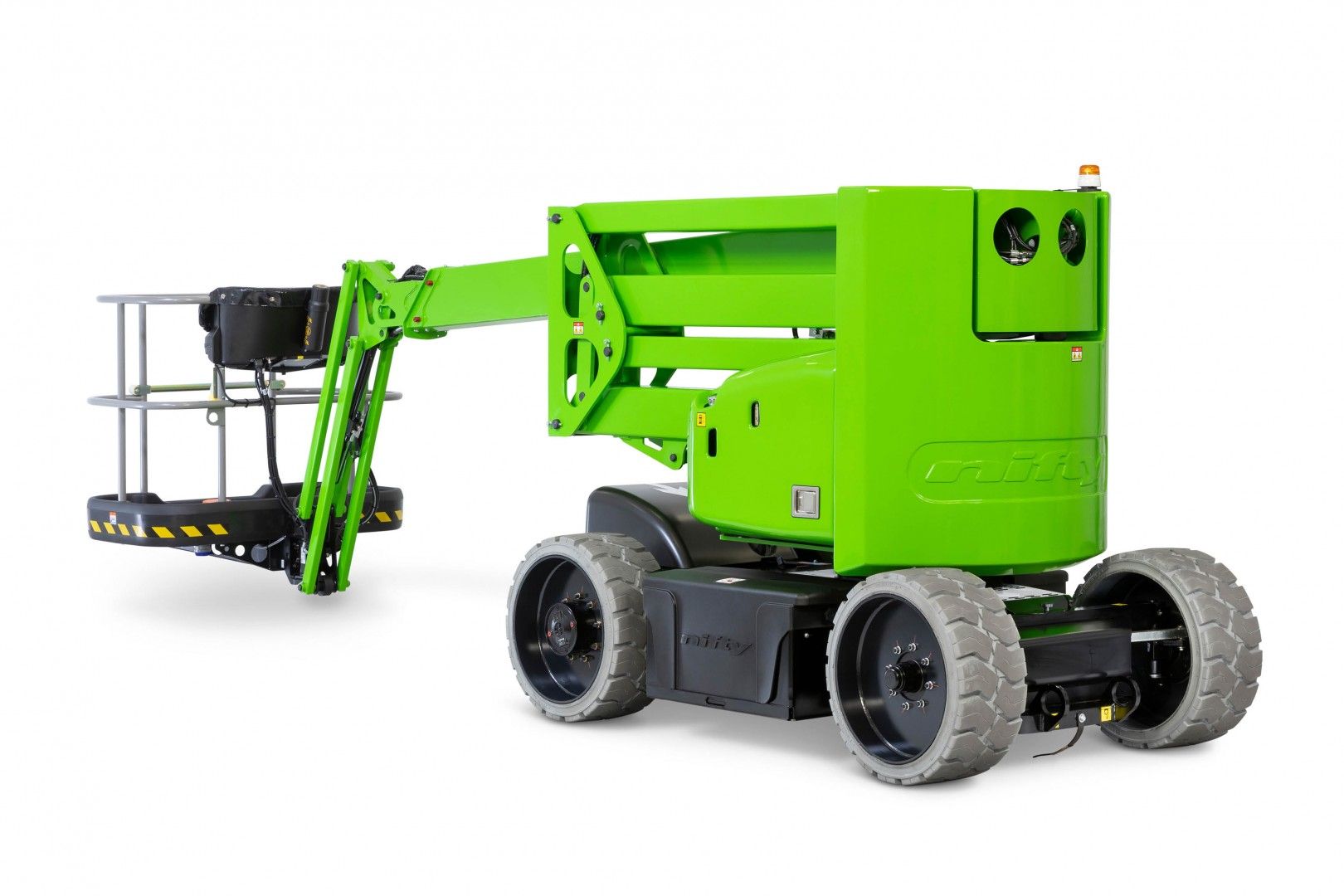

SP45N | Self Propelled Boom Lift

Working Height

15.5m 51ft

Working Outreach

9.7m 32ft

Safe Working Load

225kg 500lbs 500lbs

Minimum Weight

7250kg 15980lbs

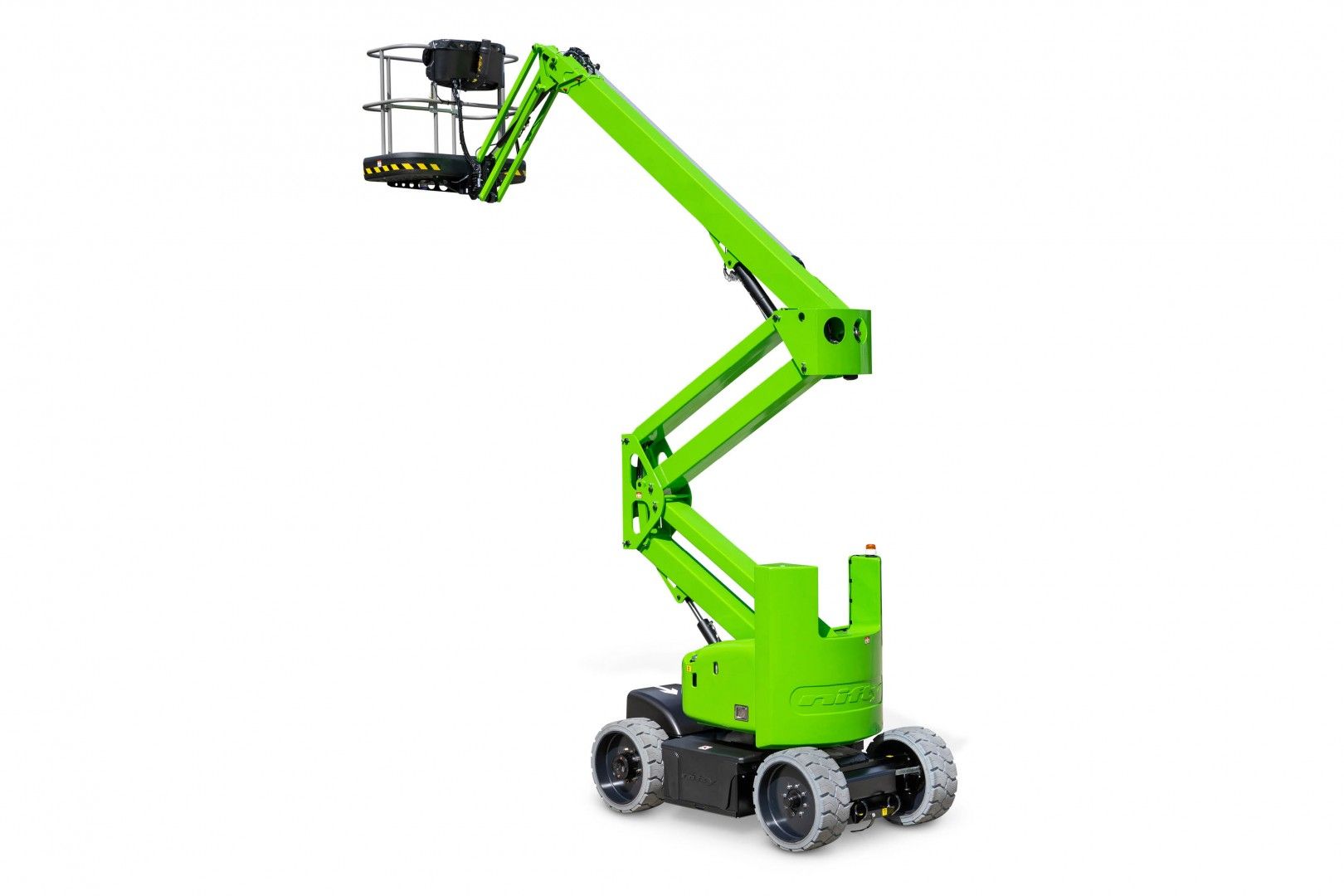

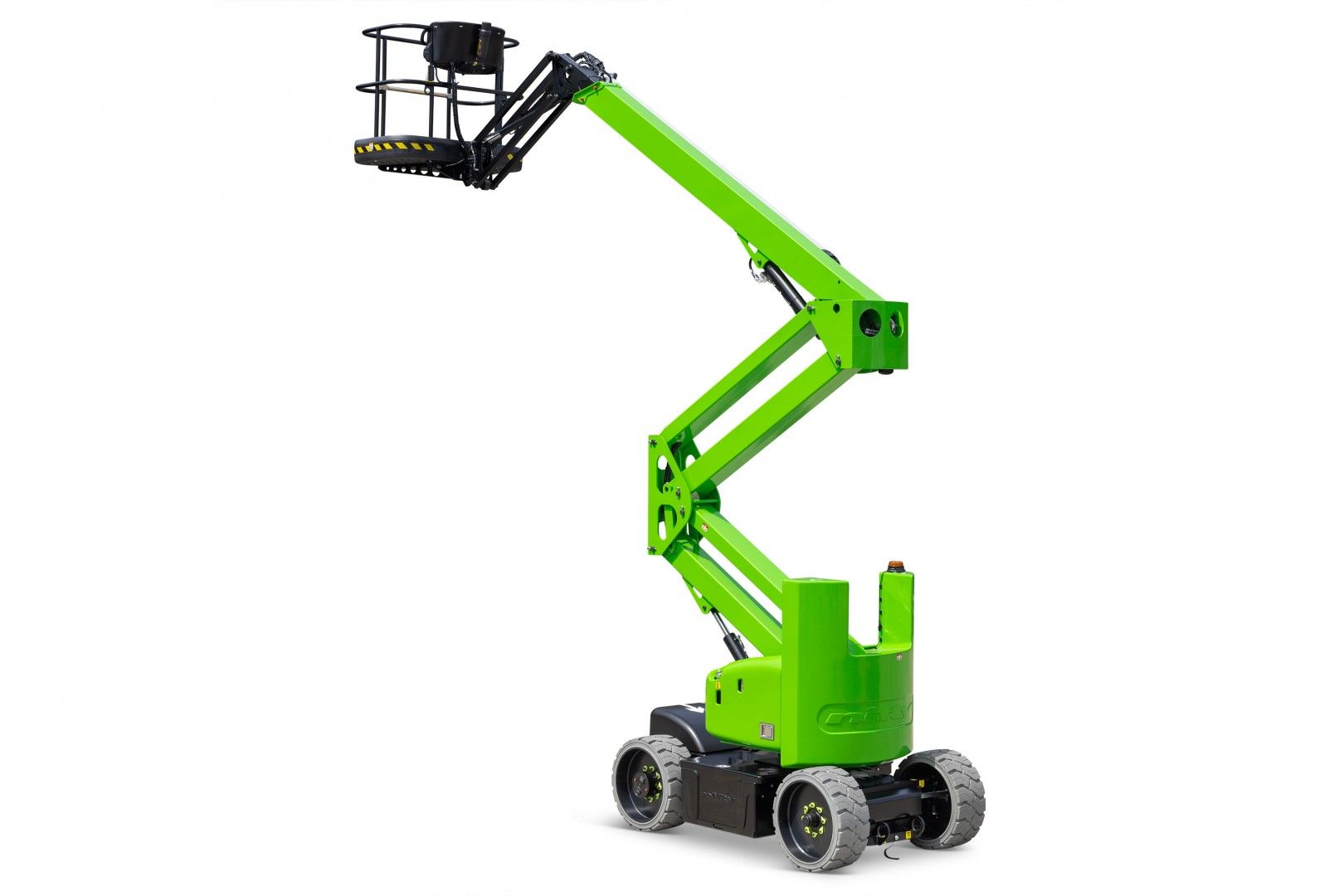

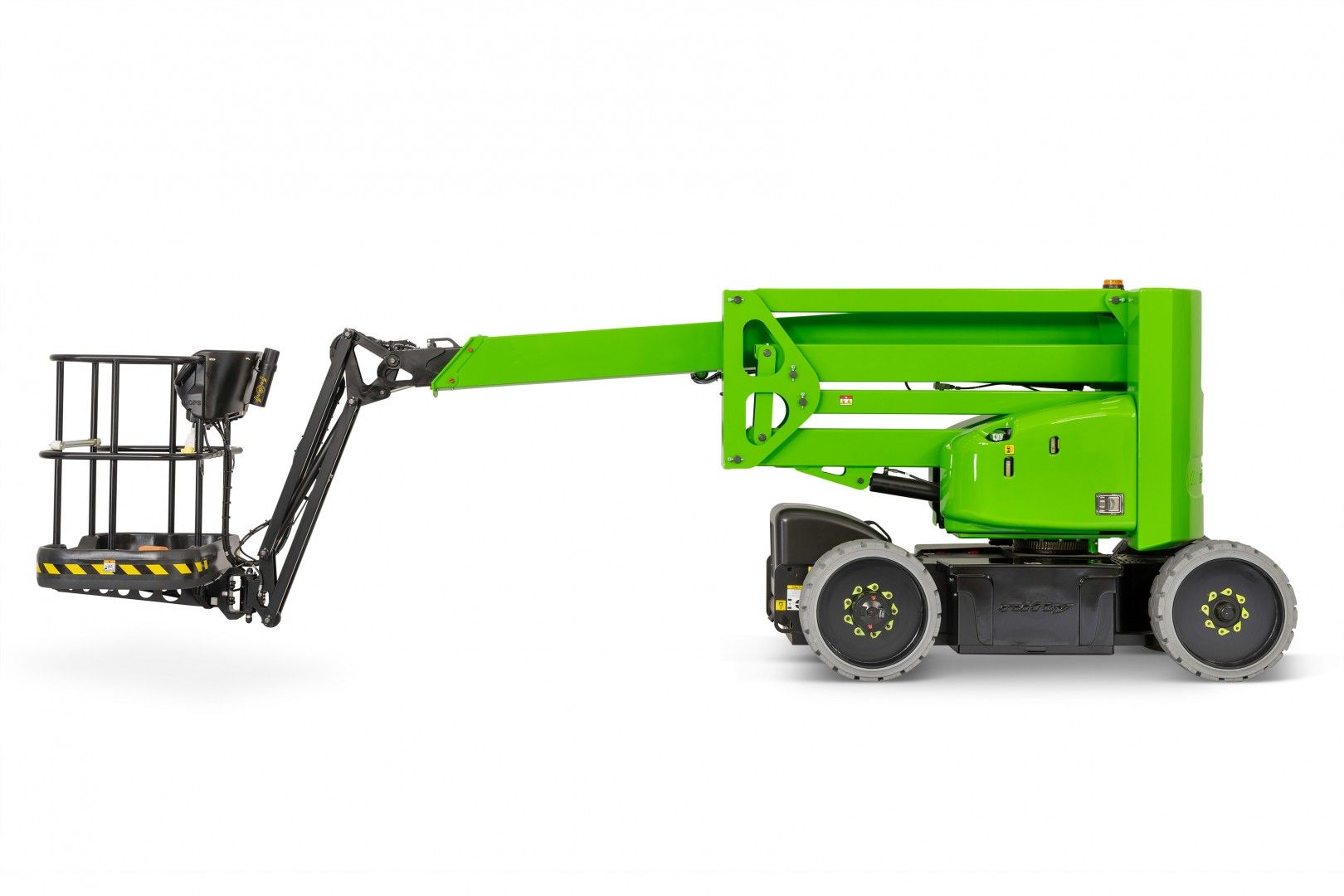

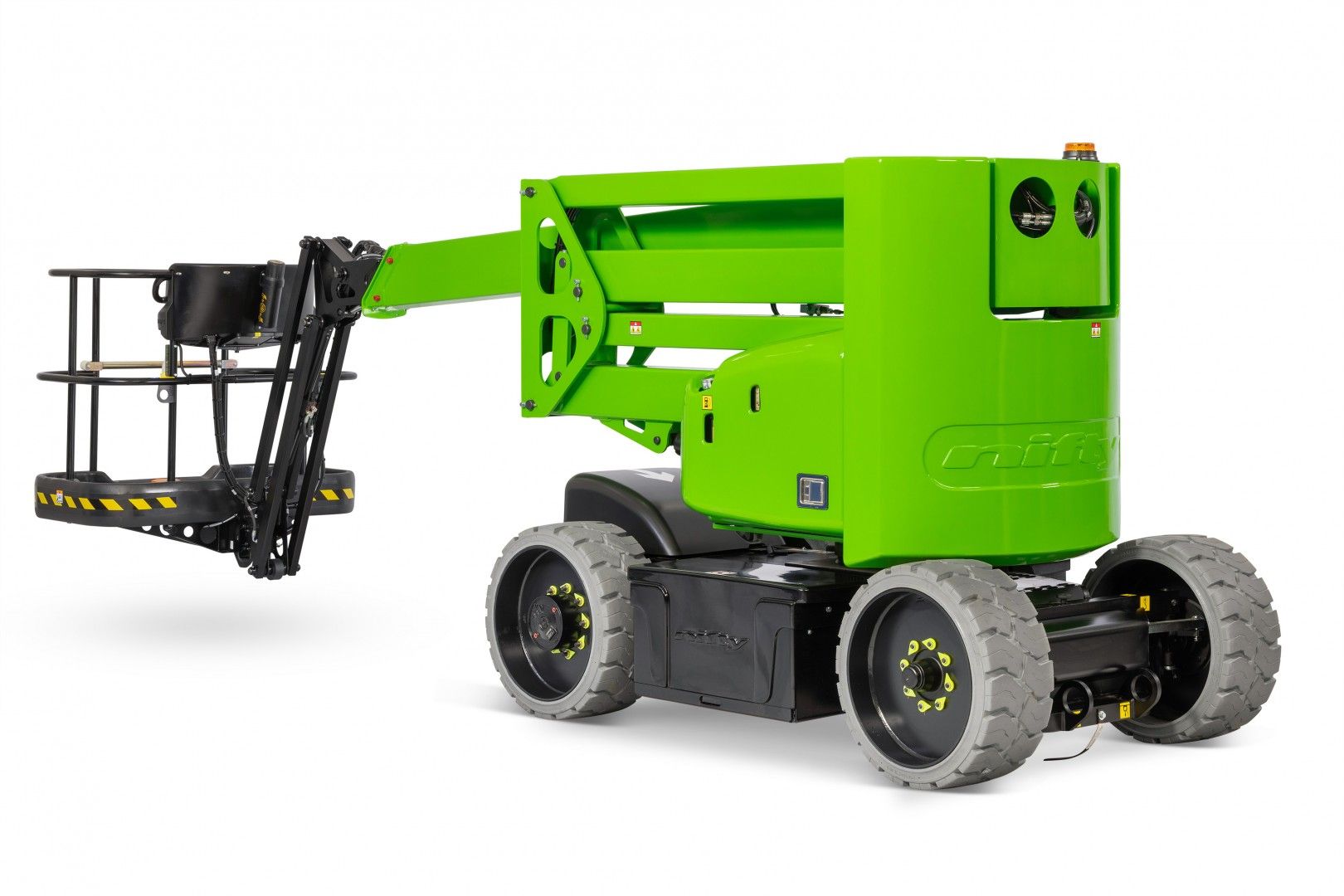

The new SP45N will lift 2 men and their tools to a platform height of 44ft or a working outreach of 32ft. Its practical 180° rotating cage and jib-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks quicker and easier to perform.

An impressive working outreach with zero tail-swing helps the SP45N to reach awkward jobs, especially when space is limited, and its super-efficient power system allows the batteries to work for longer, so more tasks can be completed and running costs reduced.

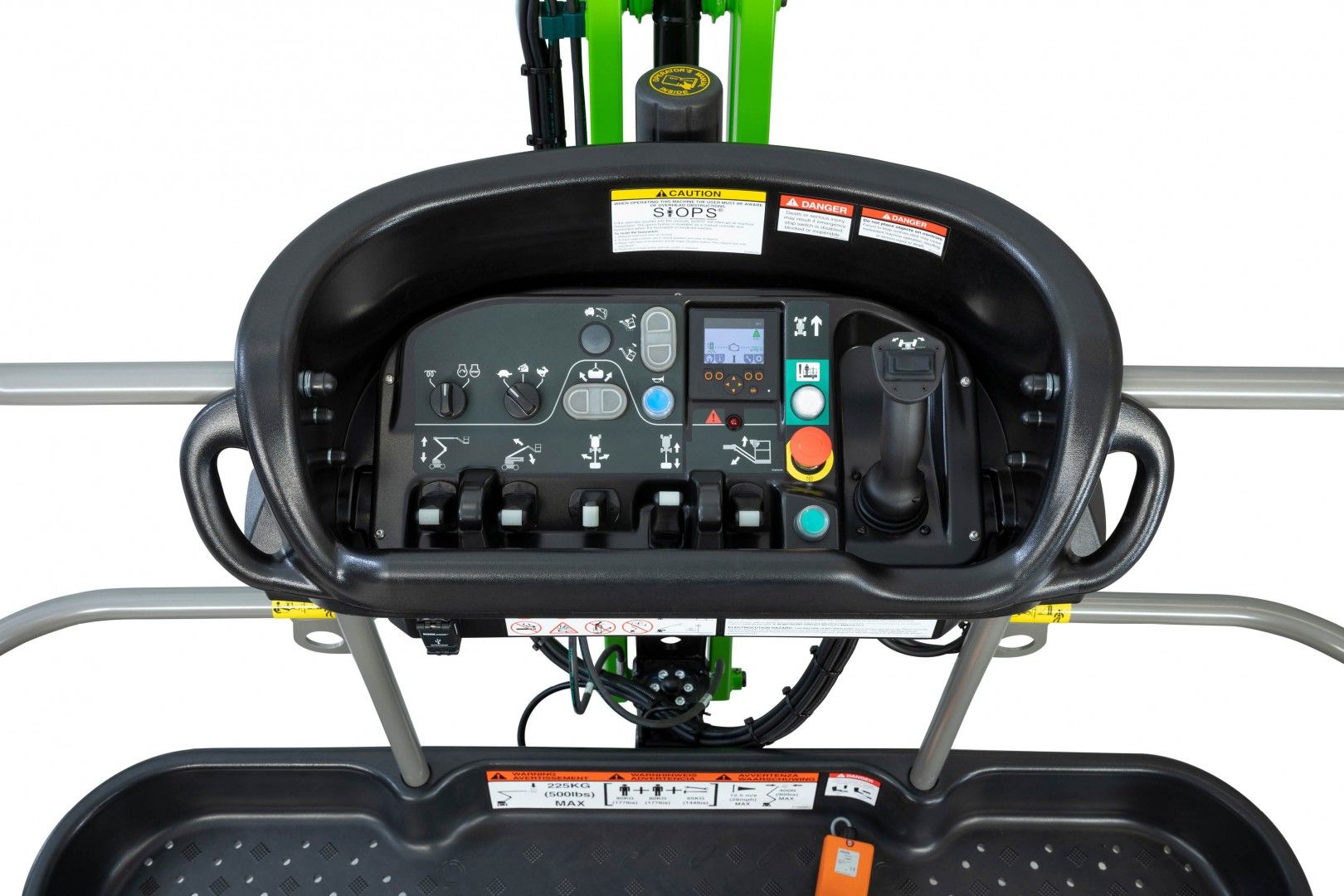

The SP45N also incorporates Niftylift's ToughCage, and multi-award winning SiOPS® safety system which eliminates sustained involuntary operation by instantly stopping machine movement if the operator is pushed onto the control console.

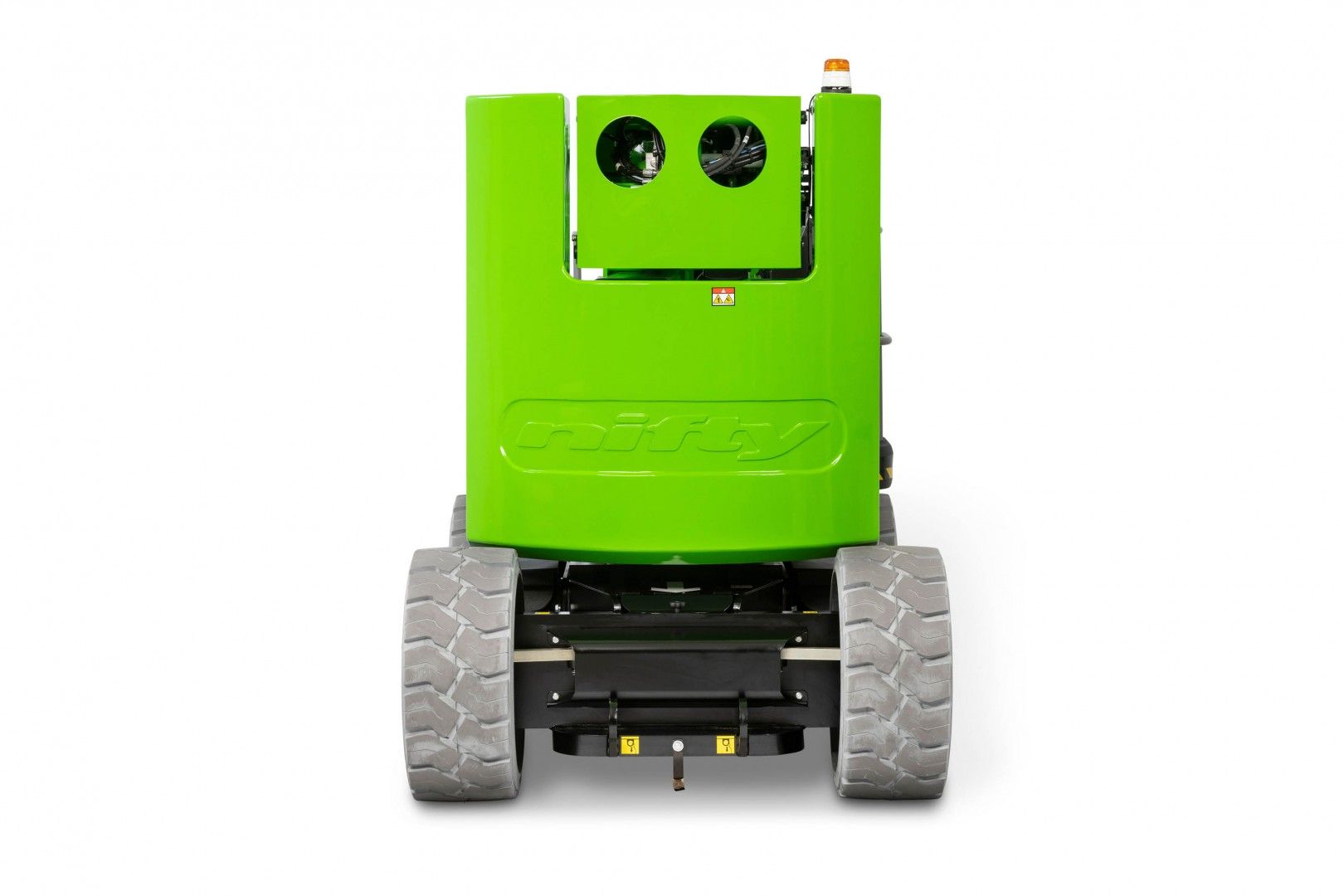

The SP45N's 4ft 11in width and 6ft 6in height enables travel through restricted spaces. Optional non-marking tyres mean that it can work both inside and out making it ideal for industrial or maintenance work.

For more information regarding the SP45N or any other self propelled cherry picker, including the SP34N and SP50N, please contact us.

Features

4ft 11in Narrow Chassis

Allowing operation in confined areas

180° Platform Rotation with Fly-Boom

Improving operator access

ToughCage with SiOPS® as Standard

Multi-award winning operator protection

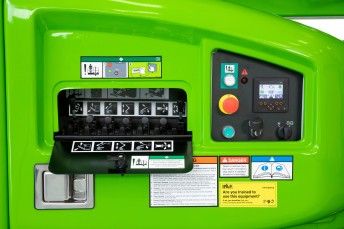

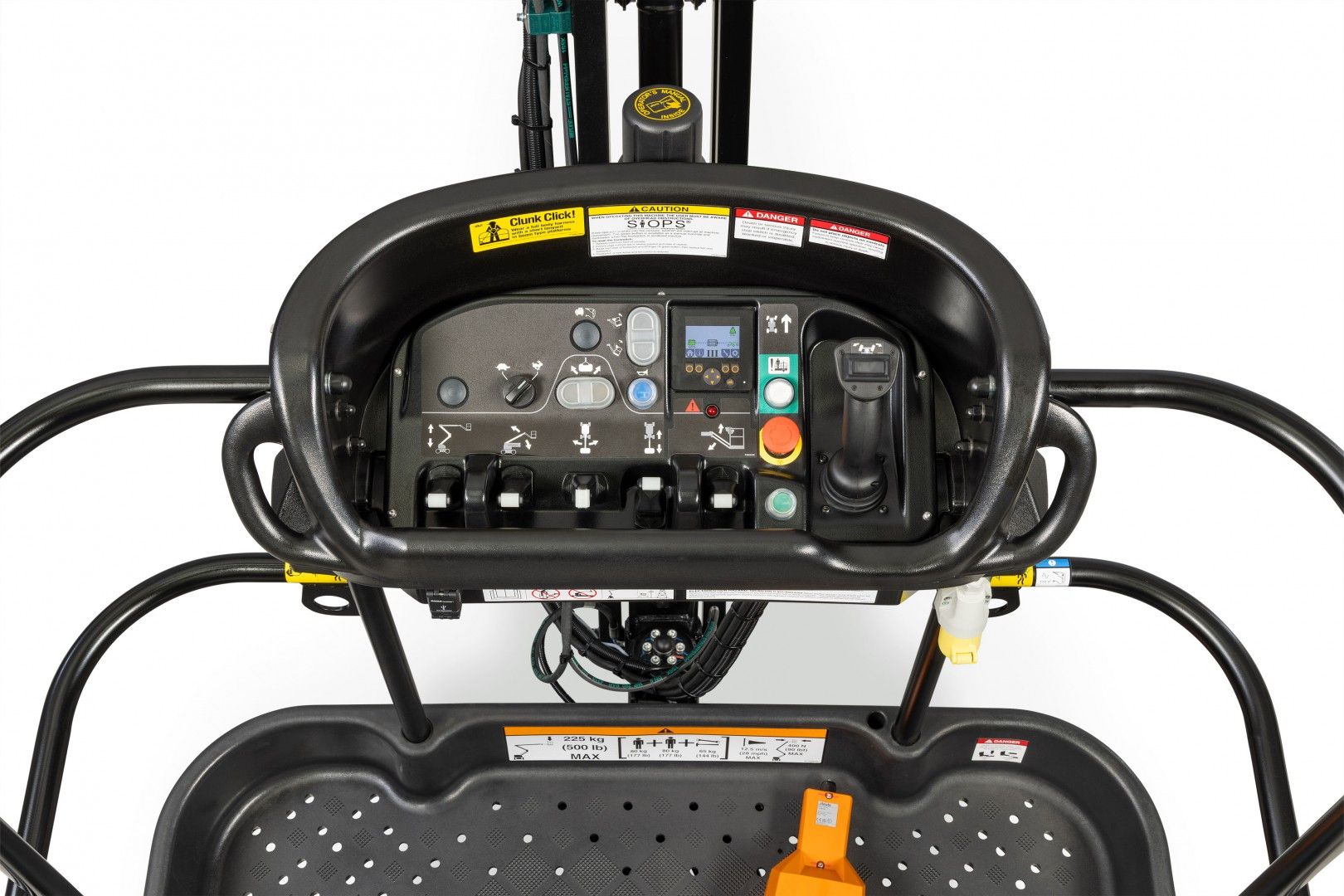

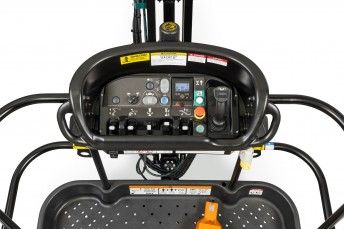

Proportional Multi-Function Control

Fast & precise operation

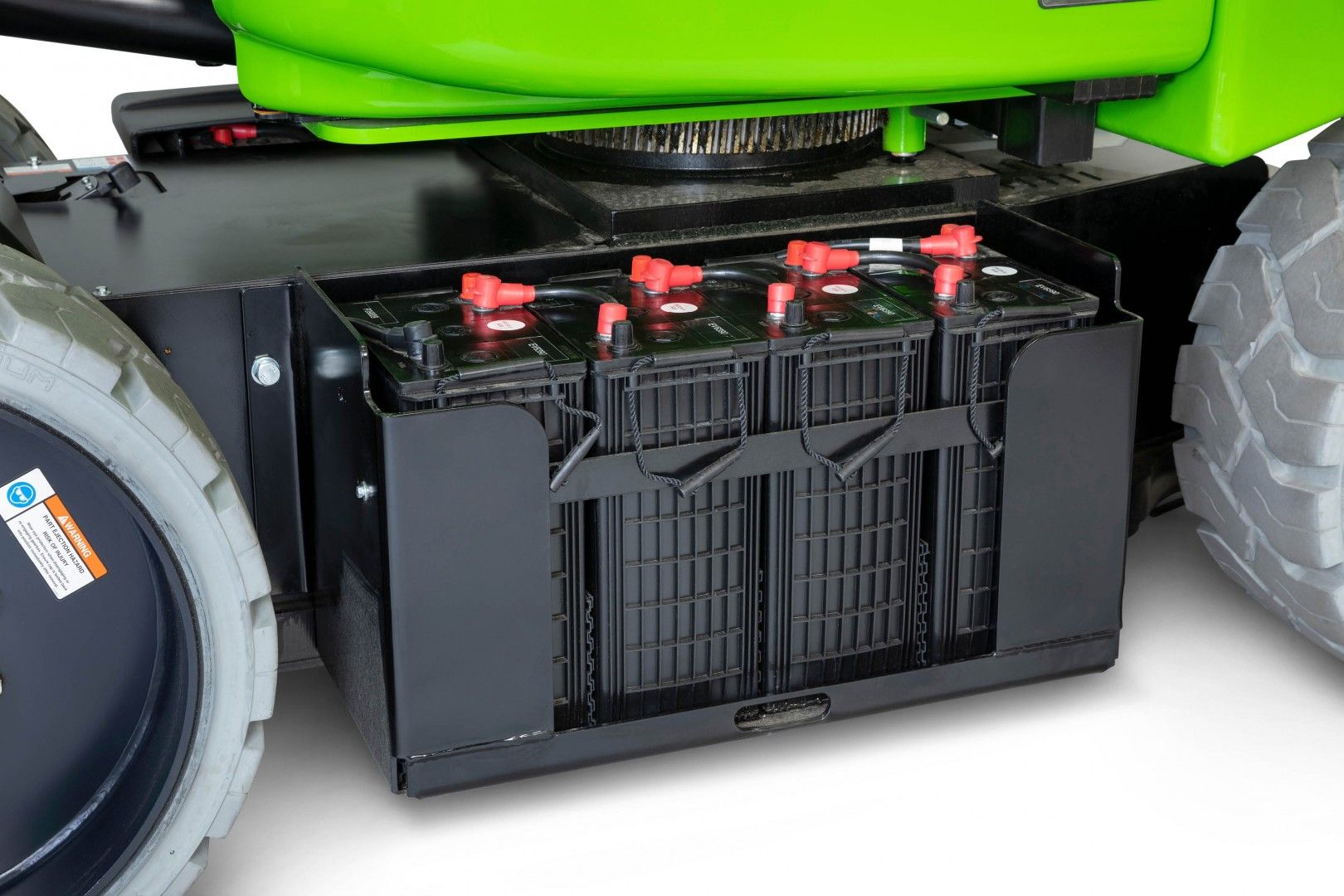

Super-Efficient Power System

Maximising battery output to do more with each charge

Specifications

Working Height (A)

15.5m 51ft

Working Outreach (C)

9.7m 32ft

Platform Height (B)

13.5m 44ft

Machine Width (F)

1.5m 4ft 11in

Machine Height (D)

1.99m 6ft 6in

Machine Length (J)

6.4m 21ft

Transport Length (H)

4.93m 16ft 2in

Travel Speed

3.5km/h 2.2mph

Gradeability

25%

Gradeability

14°

Turning Radius

3.5m 11ft 6in

Minimum Weight

7250kg 15980lbs

Safe Working Load

225kg 500lbs 500lbs

Fly Boom Arc

150°

Cage Rotation

180°

Cage Width

1.5m 4ft 11in

Cage Depth

0.8m 2ft 8in

Power Options

Battery only

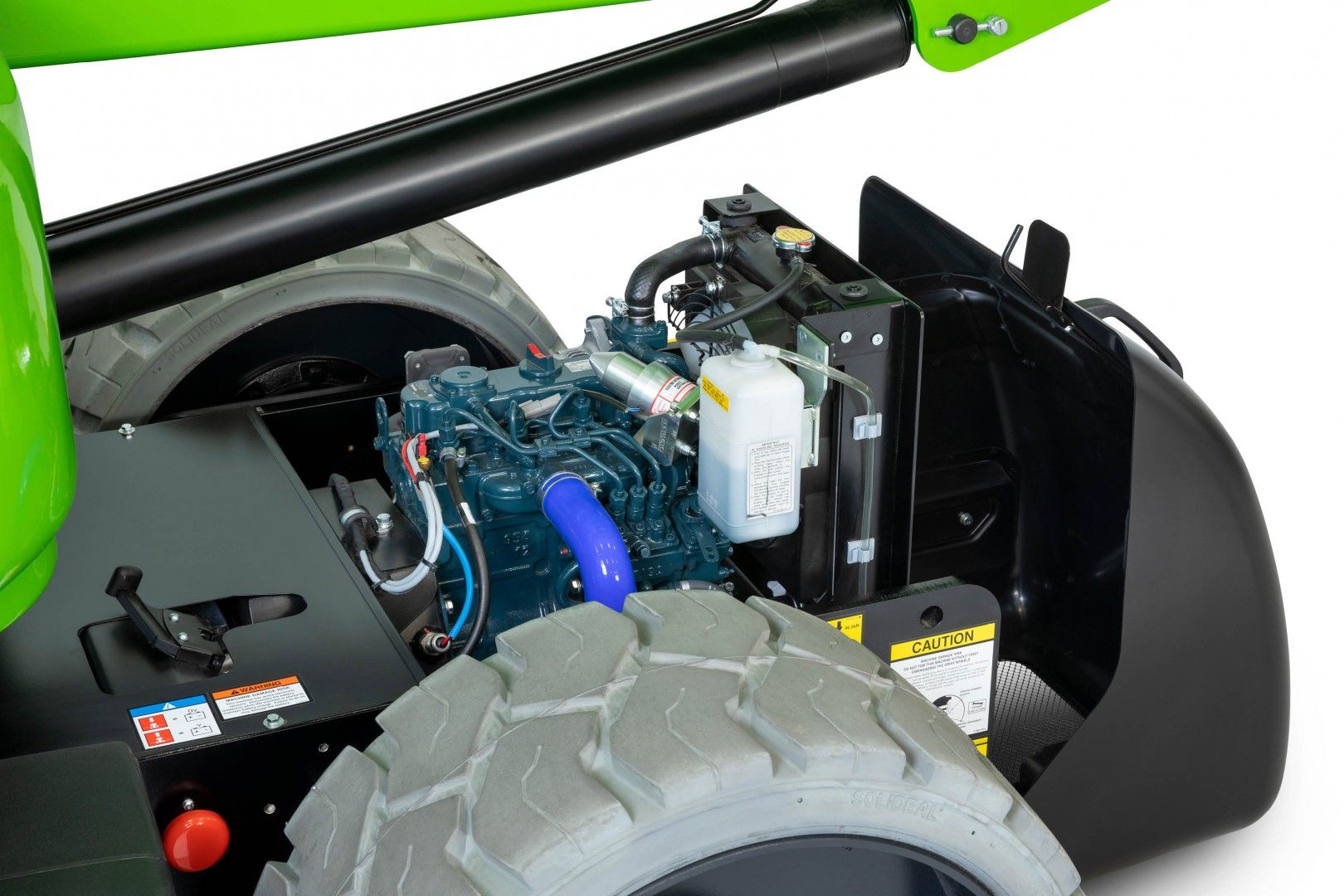

Hybrid (Battery & Diesel)

Diagram

Diagram of HR15N
