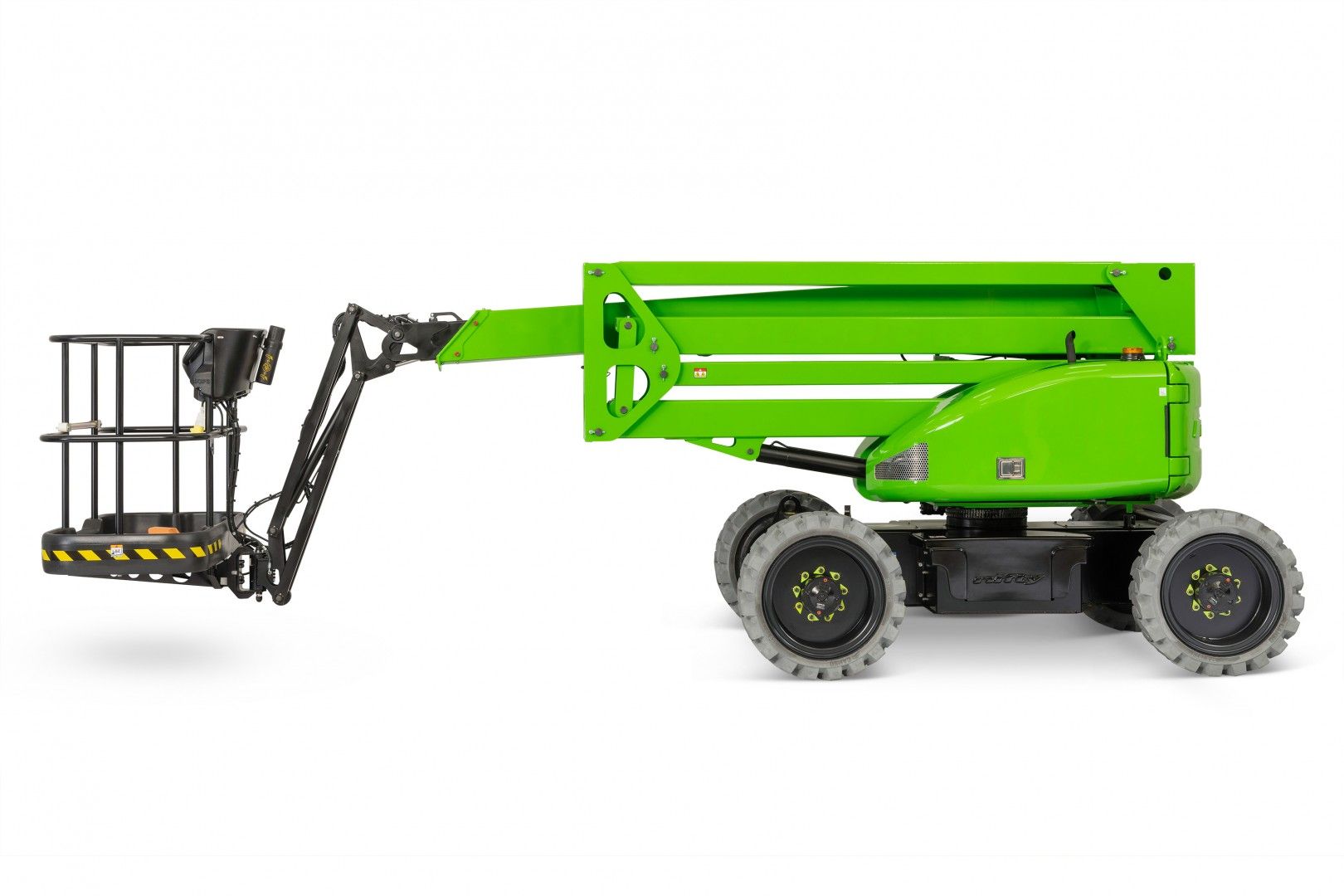

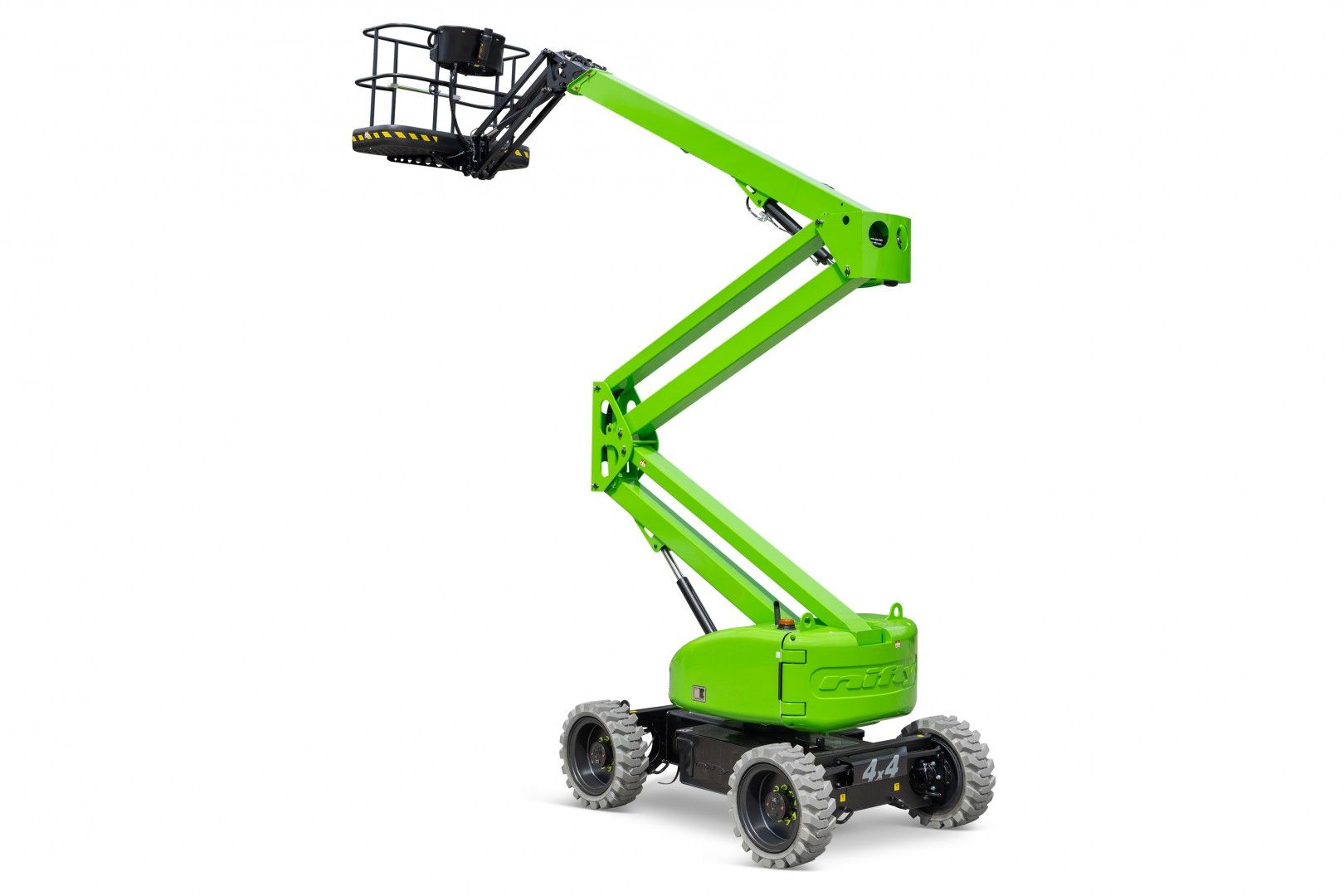

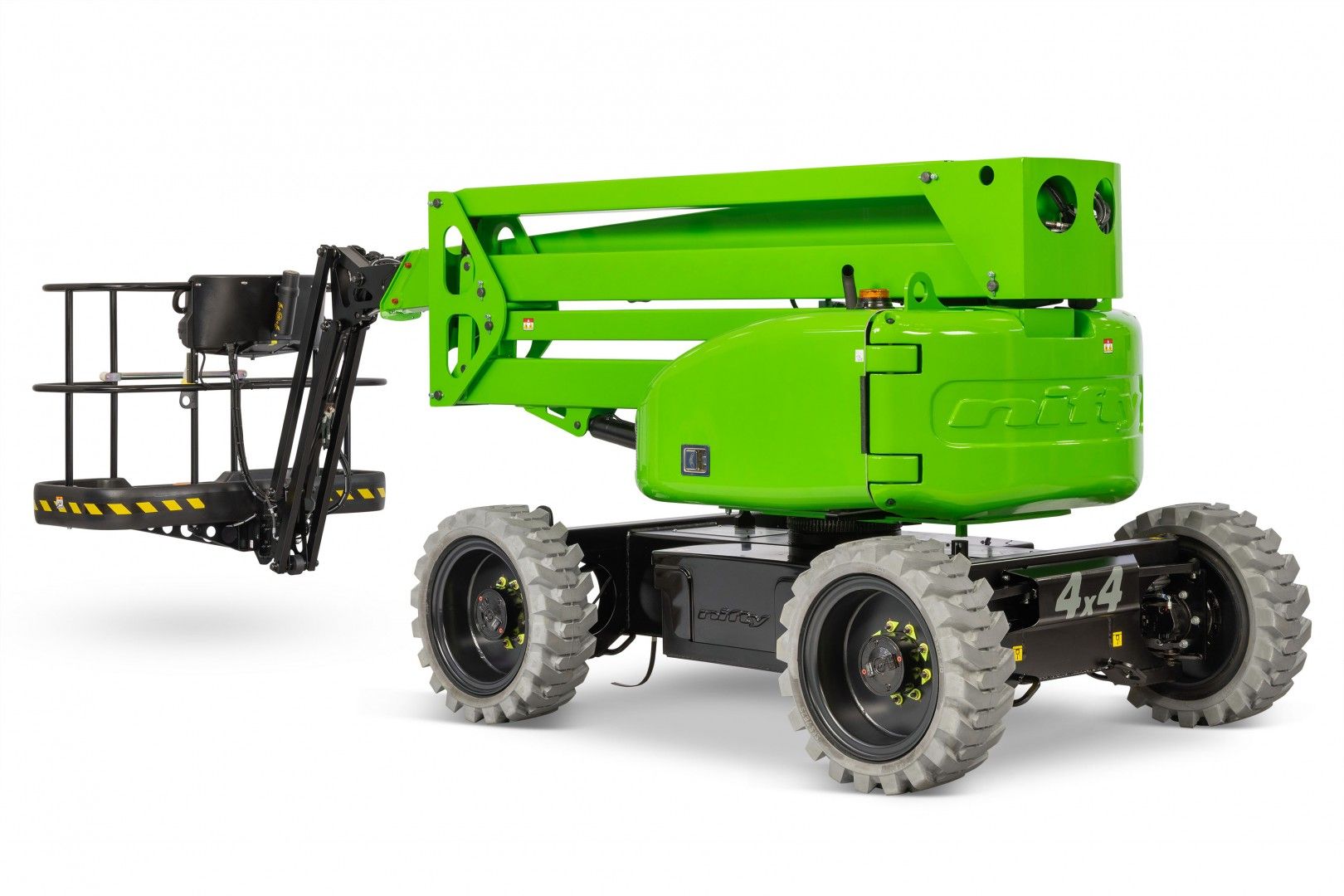

SP50 4x4 | Self Propelled Boom Lift

Working Height

17.2m 56ft 6in

Platform Height

15.2m 50ft

Working Outreach

9.4m 31ft

Safe Working Load

225kg 500lbs500lbs

Minimum Weight

5000kg 11020lbs11290lbs

Inquire Now Download Spec Sheet

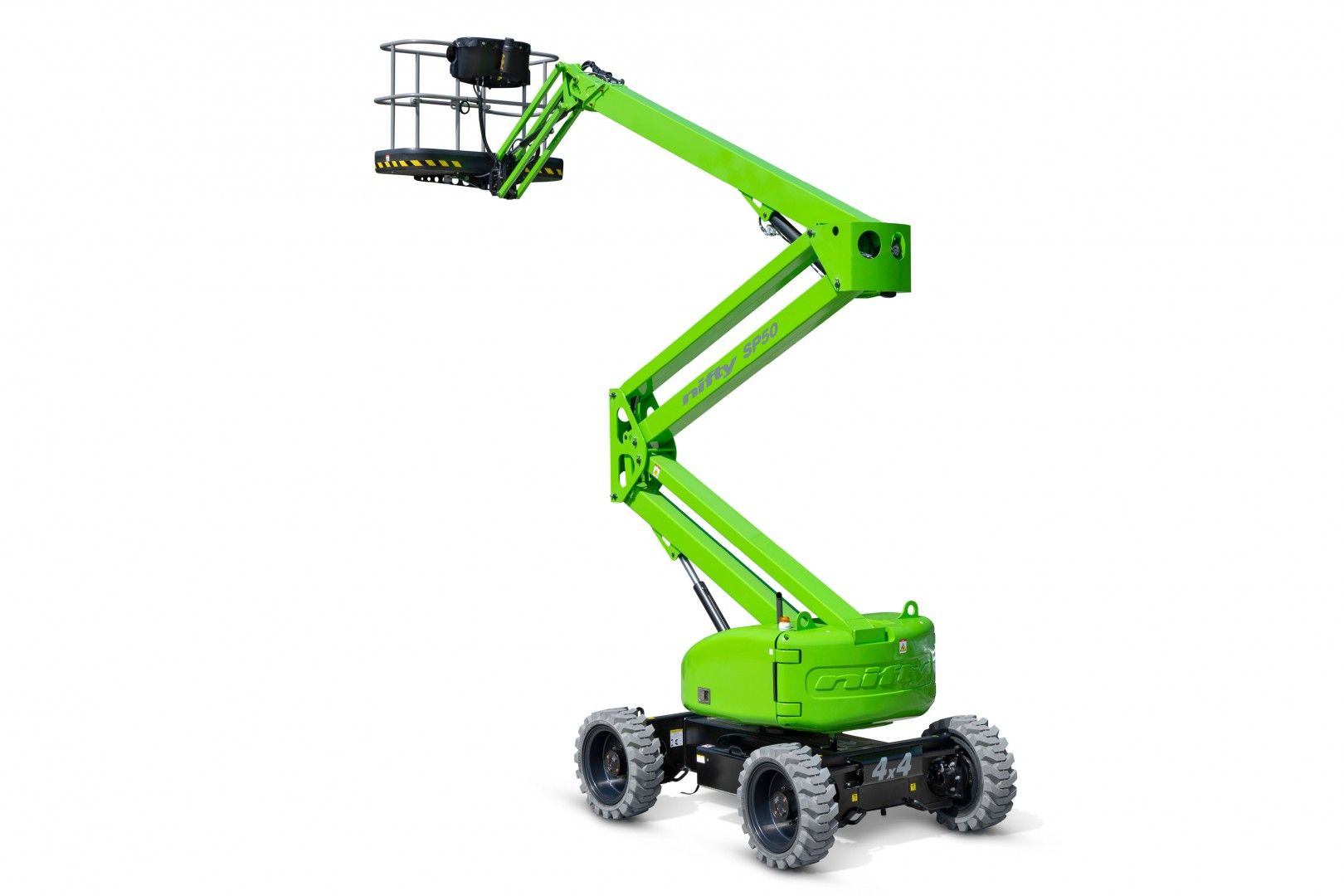

The SP50 4x4 offers one of the most impressive working envelopes in its class.

Its compact base allows it to maneuver easily in enclosed spaces, and its extremely low overall weight helps minimize transportation costs.

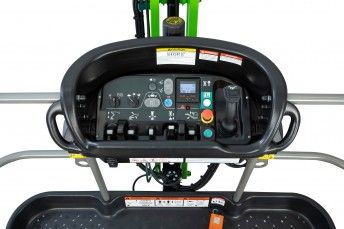

The SP50 4x4's 5ft 11in wide ToughCage offers more space for materials and tools and a 150° jib-boom with 180° cage rotation increases accuracy when positioning the cage. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage give strength and durability, while the multi-award-winning SiOPS® provides additional user protection.

The SP50 4x4 is available with two power options, Diesel-only or Hybrid power:

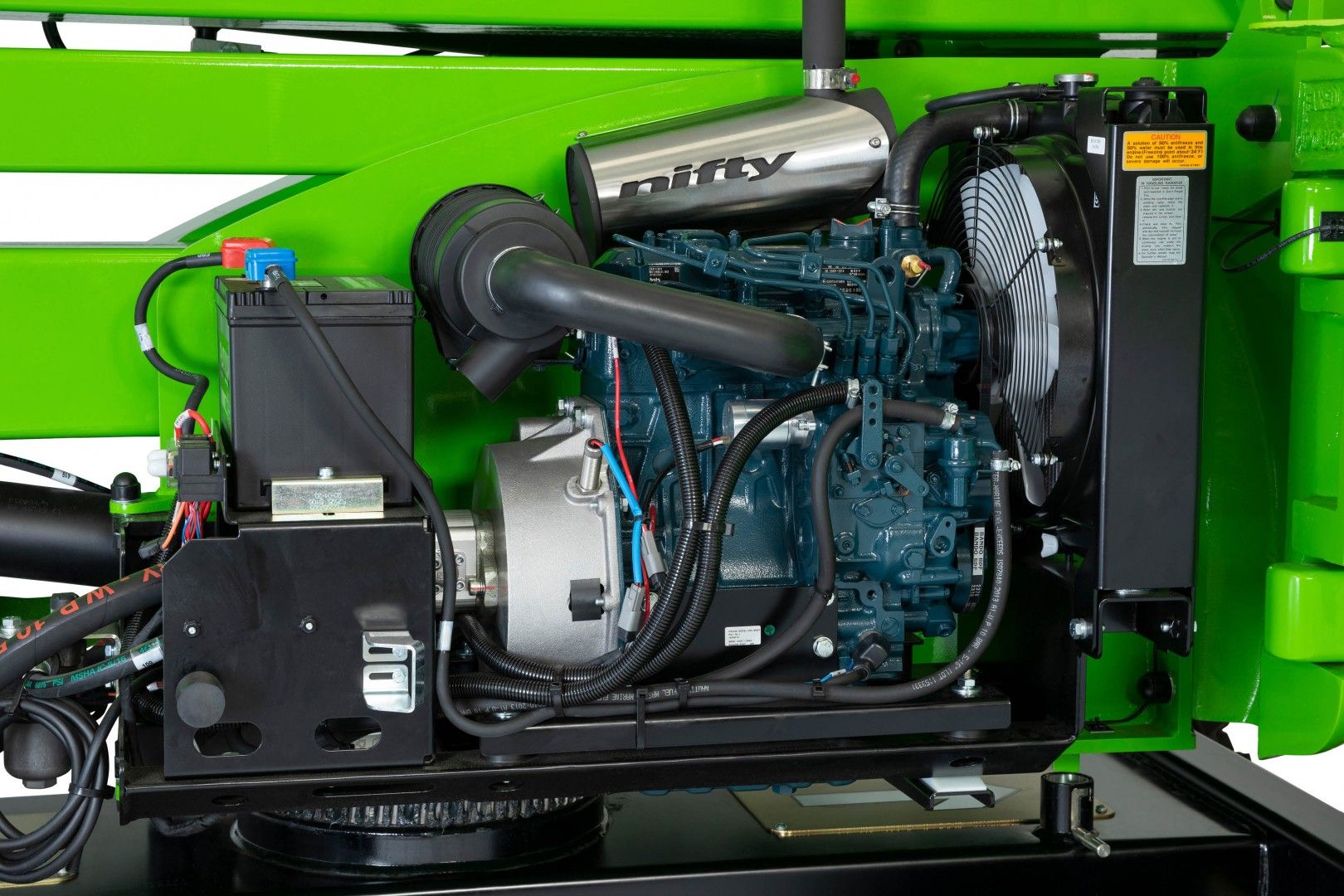

The Diesel-only option incorporates a versatile and efficient Tier 4 Final-compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground.

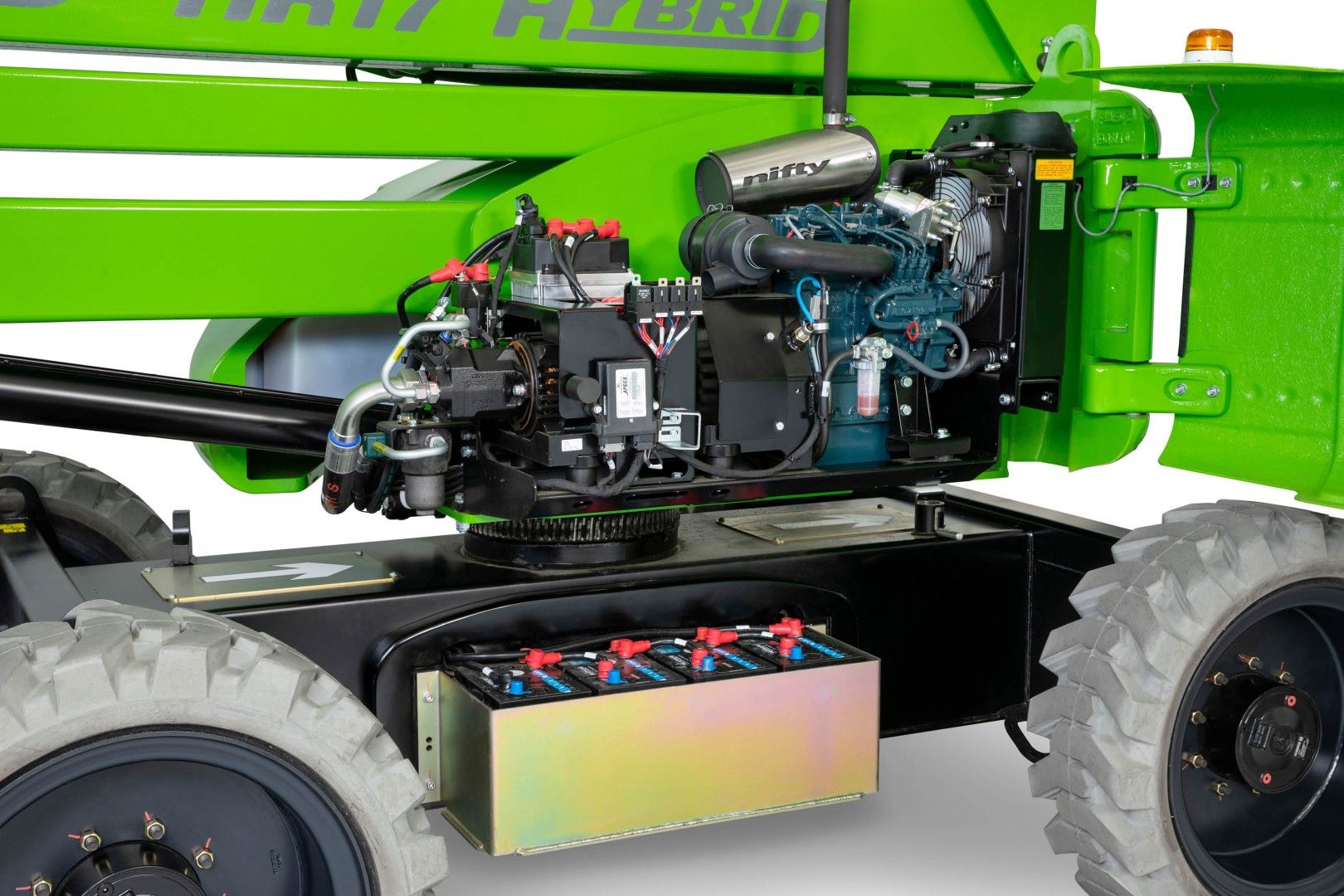

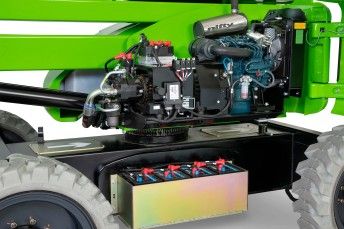

The Hybrid option incorporates a smaller, power-optimized Tier 4 Final compliant engine supported by the machine's electric motor for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries, giving a 'fast charge' whenever the machine is idle and the engine is running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use or quiet, clean operation.

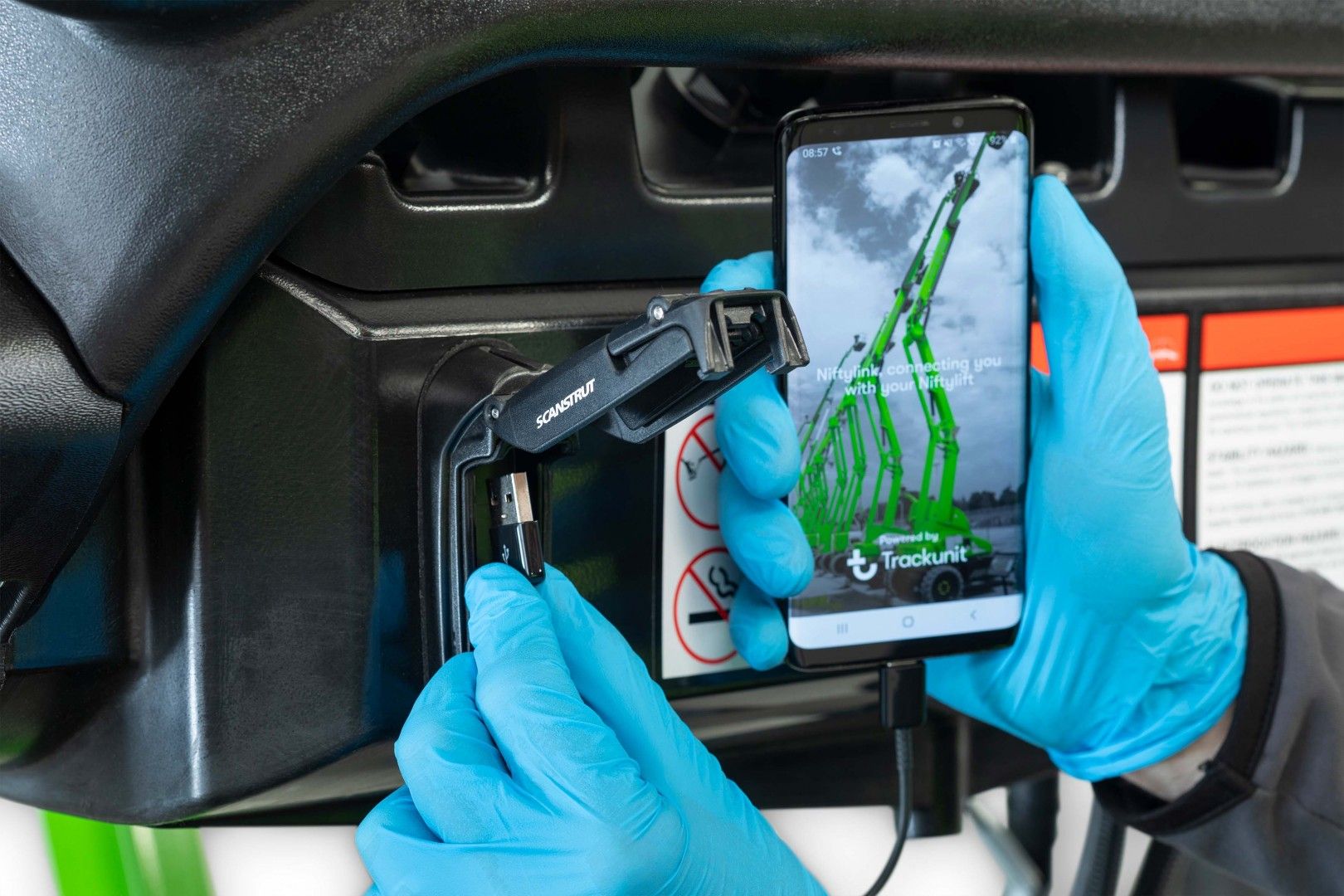

All SP50 4x4s manufactured since January 1st, 2020, are also fitted with Niftylink as standardNiftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life cycle, as well as real-time error-code reporting. By maximizing machine ‘up-time’ and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.

For more information regarding the SP50 4x4 or any other self-propelled boom lift from Niftylift, including the SP45 4x4 and SP64 4x4, please contact Niftylift USA.

SP50 4x4 Features

Second-Generation Hybrid Power

Smart, efficient, environmentally conscious power

Tier 4 Final Compliant Engine

Lowered emissions for greener performance

GVW Only 11,020lbs

Lowest weight in its class

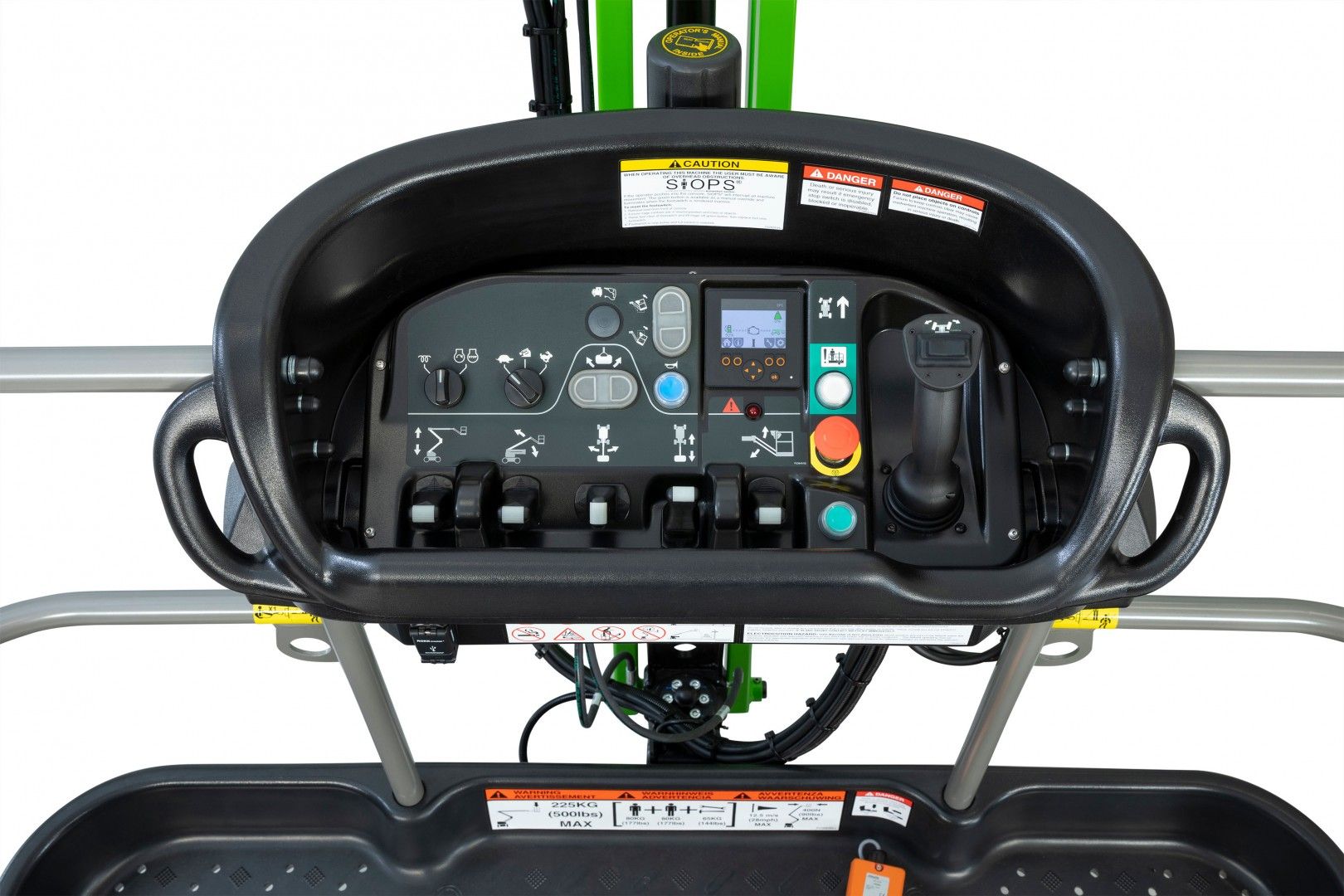

ToughCage with SiOPS®

Multi-award-winning user protection

180° Platform Rotation & Jib-Boom

Improved access to applications

45% Gradeability

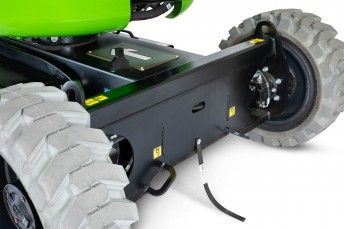

4WD for rough terrain

Superb Maneuverability

12ft 2in outside turning radius

Maintenance-Free Batteries

Reducing maintenance downtime

Full Battery Monitoring & Protection

Increasing battery life and lowering costs

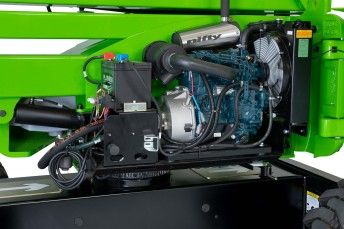

Swing-Out Engine Tray

Quick & easy to service

SP50 4x4 Specifications

Working Height (A)

17.2m 56ft 6in

Working Outreach (C)

9.4m 31ft

Platform Height (B)

15.2m 50ft

Machine Width (F)

2m 6ft 7in

Machine Height (D)

2.1m 6ft 11in

Machine Length (J)

6.35m 20ft 10in

Transport Length (H)

4.8m 15ft 9in

Travel Speed

6km/h 3.7mph

Gradeability

45% / 24°

Turning Radius

3.7m 12ft 2in

Minimum Weight

5000kg 11020lbs 11290lbs

Safe Working Load

225kg 500lbs 500lbs

Jib Boom Arc

150°

Basket Rotation

180°

Basket Width

1.8m 5ft 11in

Basket Depth

0.85m 2ft 9in

Power Options

Diesel only (Kubota 1105 - 25Hp/18.5kW)
Hybrid (Battery & Diesel Kubota 722 - 18Hp/14kW)

SP50 4x4 Diagram

Diagram of HR17 4x4
