SP64E | Self Propelled Boom Lift

Working Height

20.8m 68ft 6in

Platform Height

18.8m 62ft

Working Outreach

13m 42ft 8in

Safe Working Load

250kg 550lbs550lbs

Minimum Weight

6640kg 14640lbs14730lbs

Inquire Now Download Spec Sheet

The SP64E is a self-propelled boom lift and will lift 2 persons and their tools to a platform height of 62ft or a working outreach of 42ft 8in.

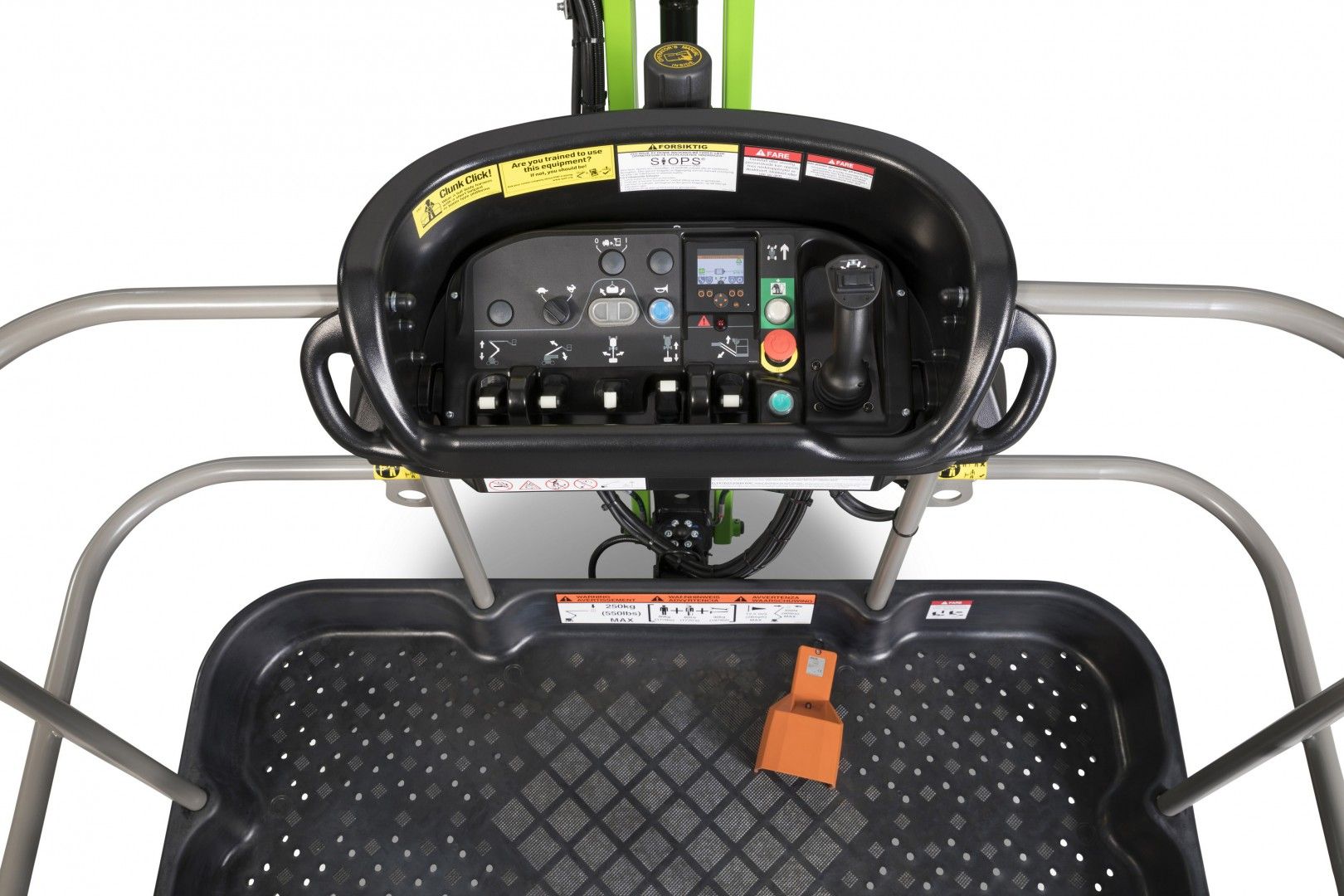

Proportional controls deliver smooth, measured operation while 160º cage rotation and 150º fly-boom allow precise positioning anywhere in its vast working envelope.

Weighing just 14,730lbs, the SP64E combines innovative weight and space-saving design with an excellent turning circle to deliver outstanding maneuverability on-site and lower transportation costs.

The SP64E's 5ft 11in wide ToughCage offers more space for materials and tools and the tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage also give strength and durability, while the multi-award-winning SiOPS® provides additional user protection.

The SP64E utilizes a super-efficient battery power system with an all-electric drive, making it ideal for indoor use, or for quiet, clean operation. It allows the batteries to work for longer, so more work can be completed on a charge and running costs are reduced.

All SP64Es manufactured since the first of January, 2020 are also fitted with Niftylink as standardNiftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life-cycle, as well as real-time error-code reporting. By maximizing machine up-time and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.

For more information regarding the SP64E or any other self-propelled boom lift, including the SP50 4x4 and SP64 4x4, please contact us.

SP64E Features

All-Electric Drive

Outstanding battery performance

Maintenance-Free Batteries

Reducing maintenance downtime

Full Battery Monitoring & Protection

Increasing battery life and lowering costs

GVW Only 14,730lbs

Lightest in its class

160º Platform Rotation & Fly-Boom

Improved access to applications

25% Gradeability

Impressive 2WD performance

Superb Manoeuvrability

12ft 9in outside turning radius

ToughCage with SiOPS®

Multi-award winning operator protection

Niftylink® as Standard

Advanced Telematics for your Niftylift

SP64E Specifications

Working Height (A)

20.8m 68ft 6in

Working Outreach (C)

13m 42ft 8in

Platform Height (B)

18.8m 62ft

Machine Width (F)

2.27m 7ft 5in

Machine Height (D)

2.18m 7ft 2in

Machine Length (J)

6.62m 22ft

Transport Length (H)

5.47m 17ft 11in

Travel Speed

6km/h 3.7mph

Gradeability

25% / 14°

Turning Radius

3.89m 12ft 9in

Minimum Weight

6640kg 14640lbs 14730lbs

Safe Working Load

250kg 550lbs 550lbs

Jib Boom Arc

150°

Basket Rotation

160°

Basket Width

1.80m 5ft 11in

Basket Depth

0.8m 2ft 8in

Power Options

Battery only

SP64E Diagram

Diagram of HR21E
