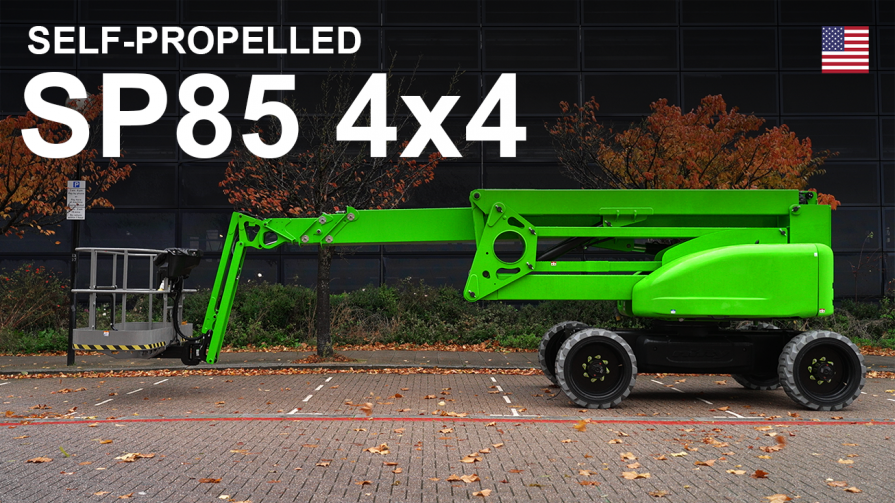

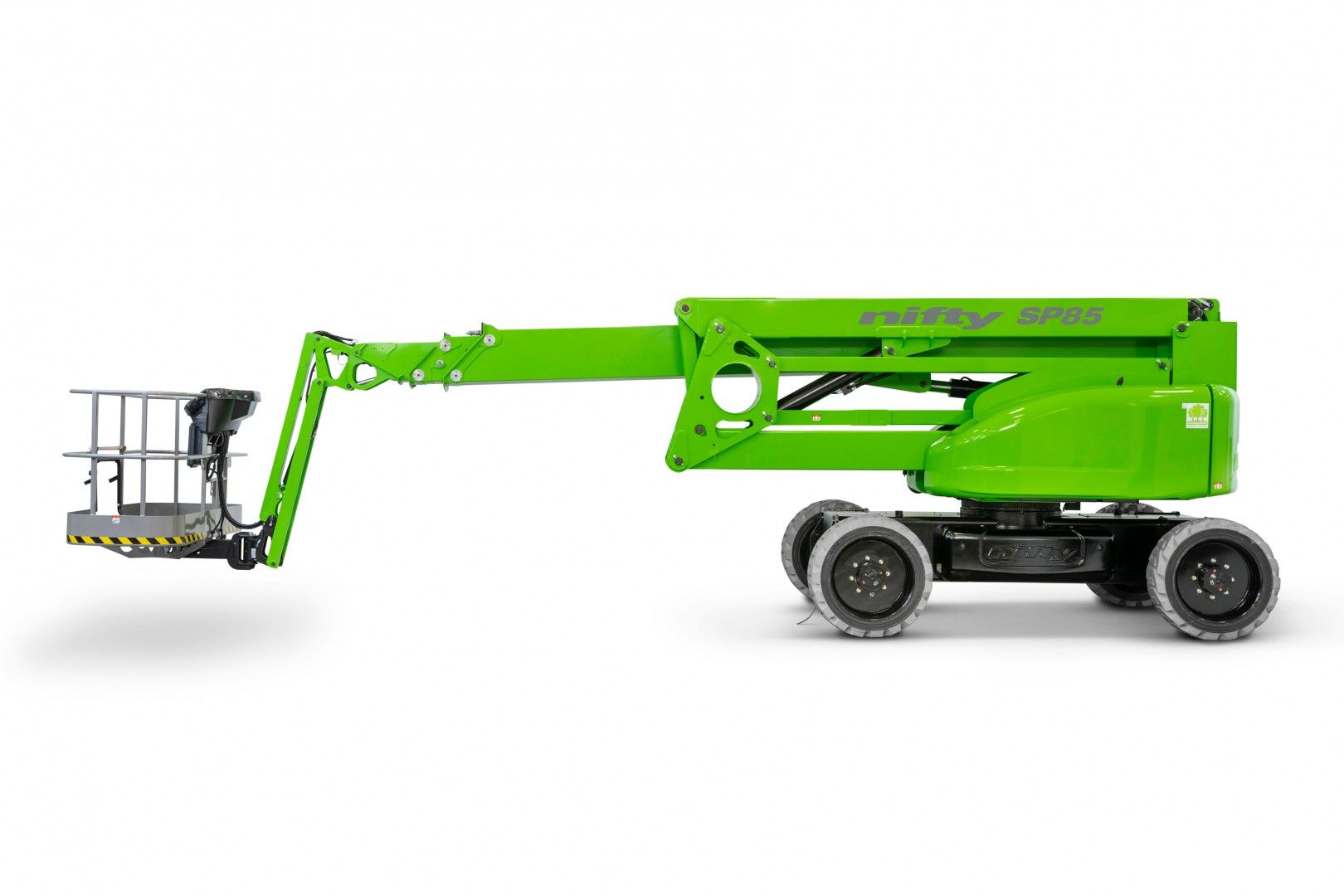

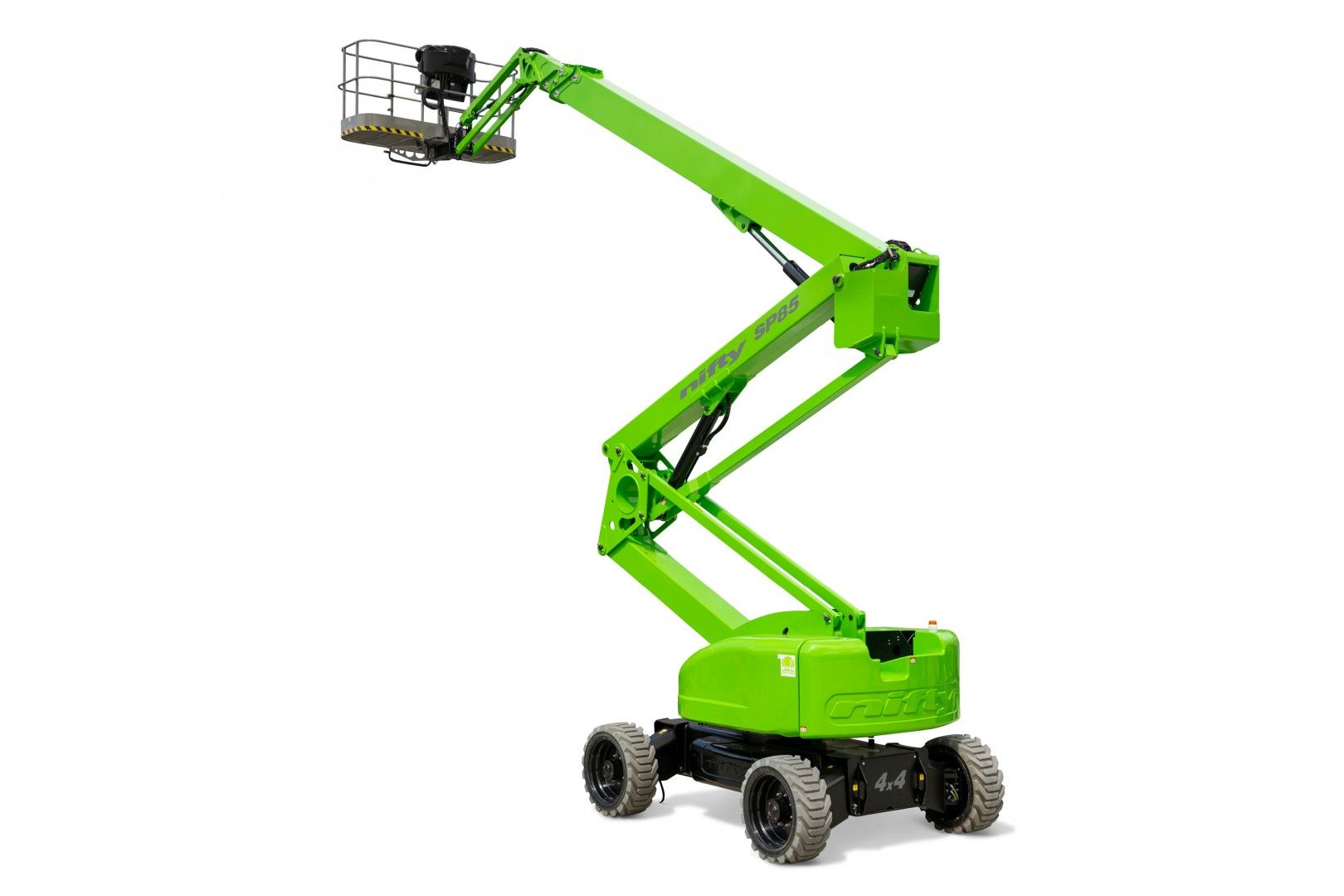

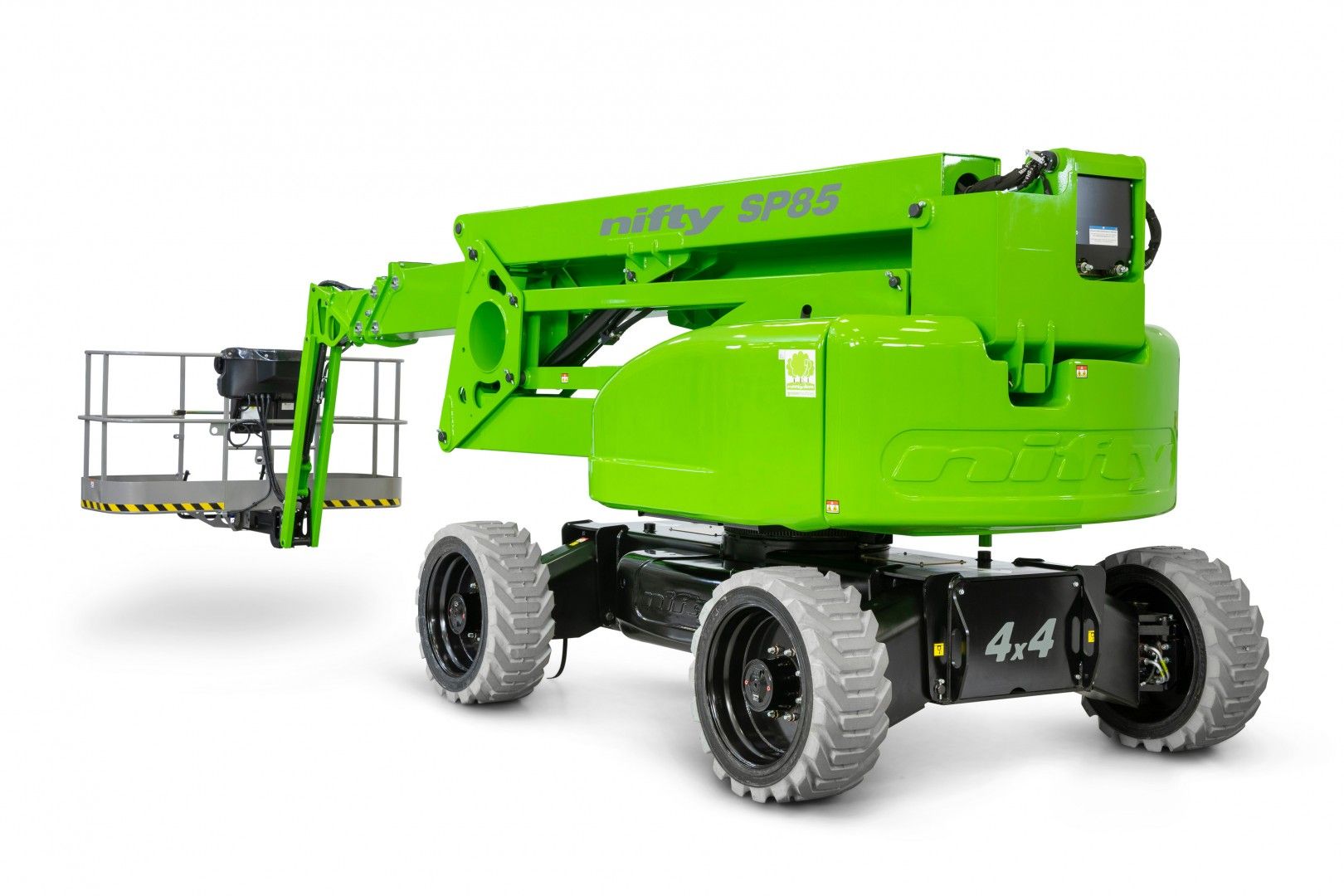

SP85 4x4 | Self Propelled Boom Lift

Working Height

28m 92ft

Platform Height

26m 85ft 6in

Working Outreach

19m 62ft

Safe Working Load

280kg 620lbs 620lbs

Minimum Weight

14650kg 32300lbs

Inquire Now Download Spec Sheet

The SP85 Four-Wheel-Drive (4x4) is one of a new generation of environmentally conscious work platforms from Niftylift. Combining advanced power-source technology with efficient four-wheel-drive, it delivers outstanding performance from a compact and low-weight design.

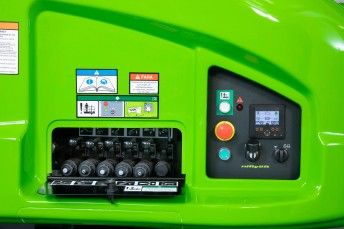

Proportional controls deliver smooth, measured operation while 180º cage rotation and a 150º jib-boom allow precise positioning anywhere in its vast working envelope.

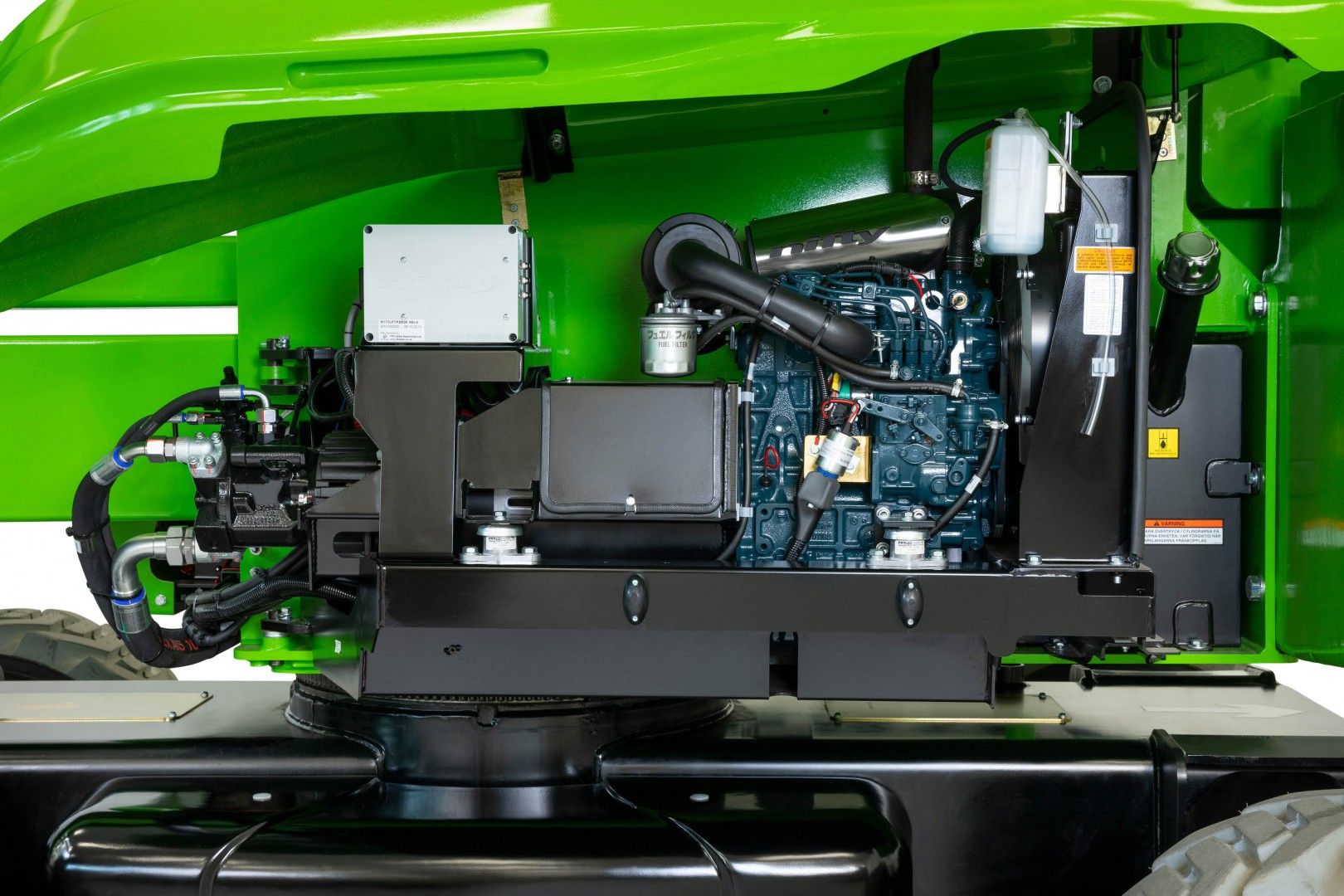

Its revolutionary second-generation Hybrid power system incorporates a smaller, power-optimized Tier 4 Final compliant Diesel engine, supported by the machine's electric motor when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries, giving a 'fast-charge' whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.

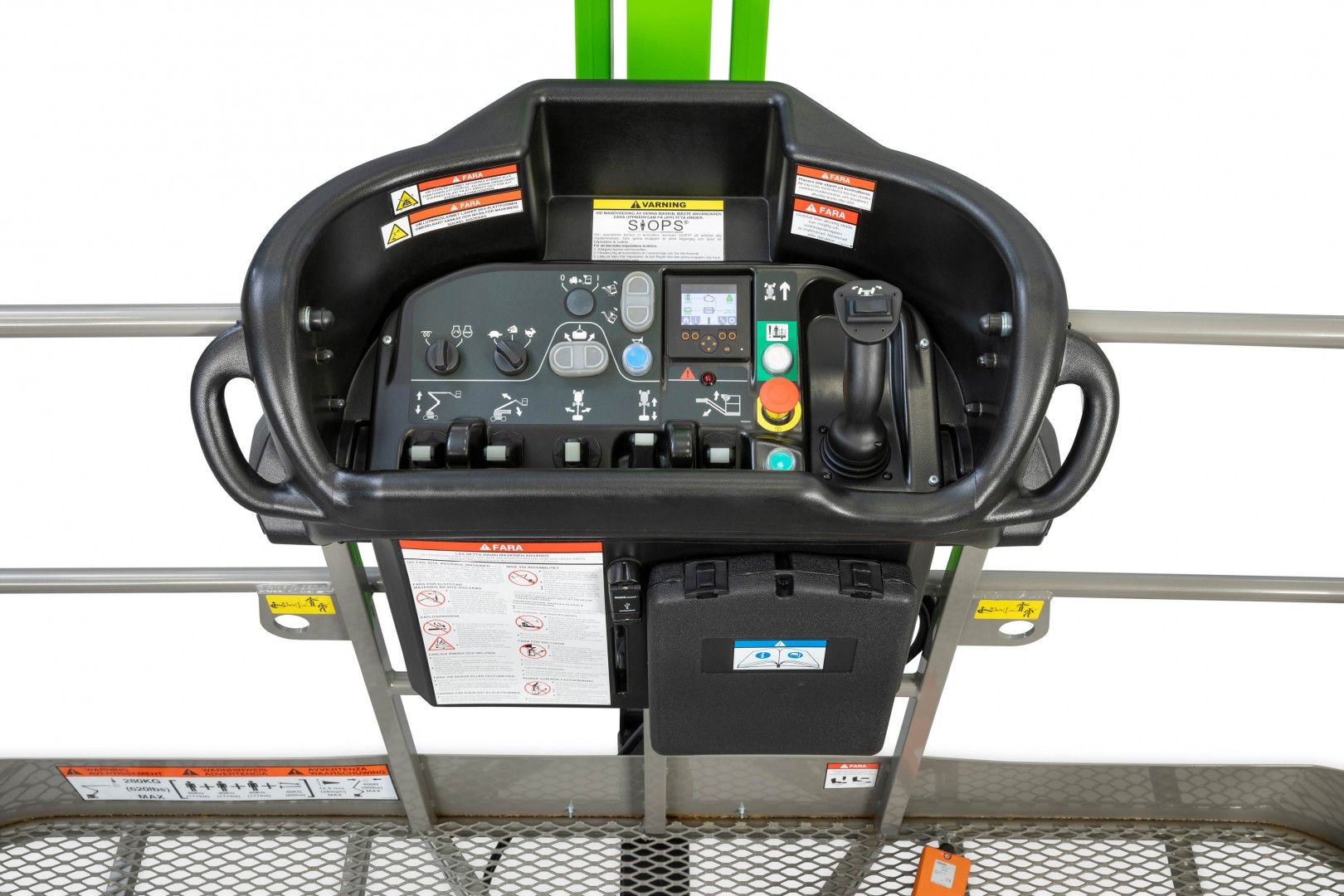

The HR28 Hybrid also includes Niftylift's multi-award-winning SiOPS®, a safety system that eliminates sustained involuntary operation by instantly stopping machine movement if the user is pushed onto the control console, allowing them to safely recover their situation.

For more information regarding the SP85 4x4 or any other self-propelled boom lift from Niftylift, including the SP64 4x4,  please contact Niftylift USA.

SP85 4x4 Features

Second-Generation Hybrid Power

Smart, efficient, environmentally conscious power

EU Stage V Compliant Engine

Lowered emissions for greener performance

GVW Only 32,300lbs*

Lightest in its class

SiOPS® as Standard

Multi-award winning user protection

180° Cage Rotate & Jib-Boom

Improved access to applications

360º Continuous Slew

Better access to applications

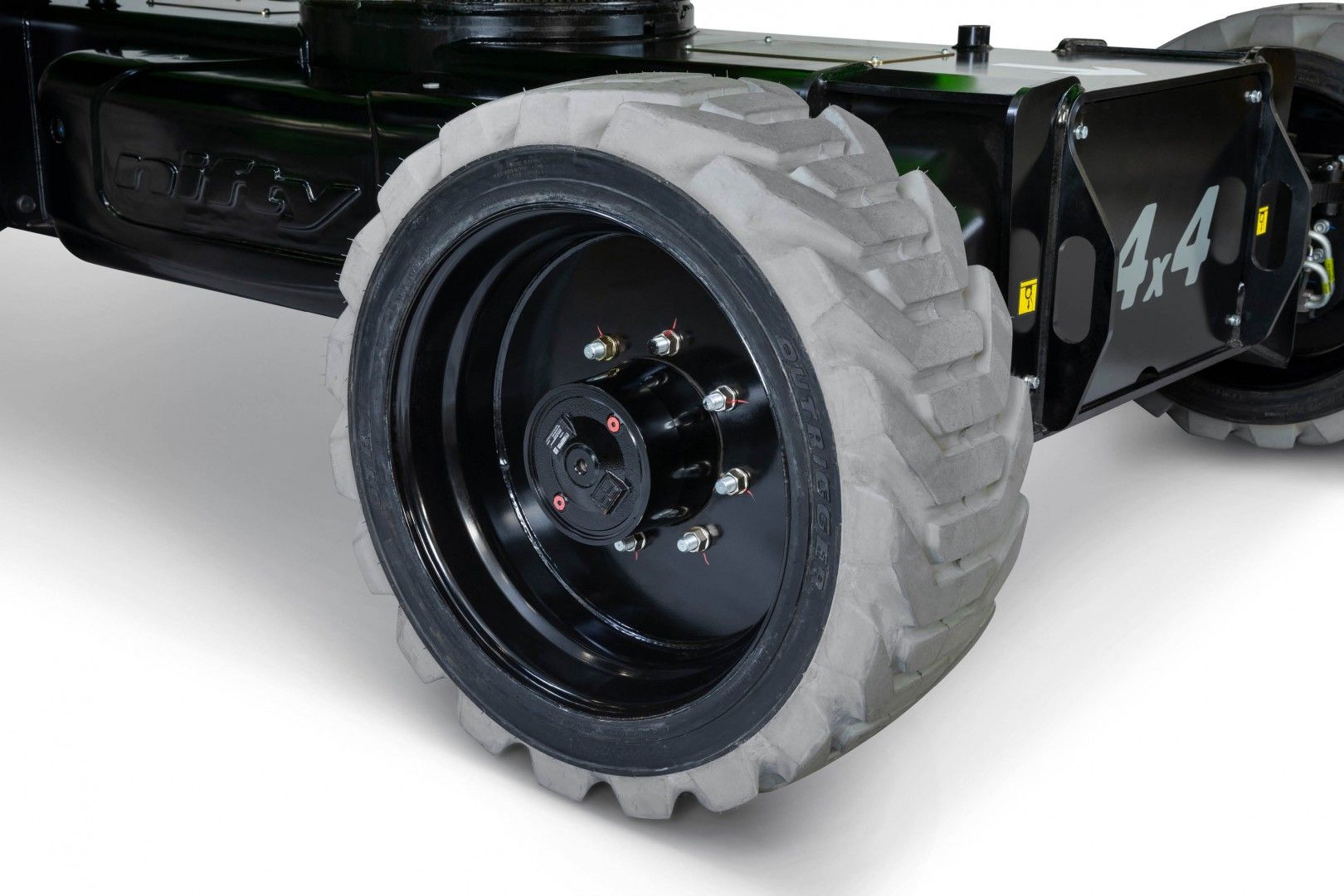

40% Gradeability

4WD for rough terrain

Superb Manoeuvrability

19ft 4in outside turning radius

SP85 4x4 Specifications

Working Height (A)

28m 92ft

Working Outreach (C)

19m 62ft

Platform Height (B)

26m 85ft 6in

Machine Width (F)

2.49m 8ft 2in

Machine Height (D)

2.7m 8ft 10in

Machine Length (J)

9.28m 30ft 5in

Transport Length (H)

7.3m 23ft 11in

Travel Speed

4.7km/h 3mph

Gradeability

40%

Gradeability

22°

Turning Radius

5.9m 19ft 4in

Minimum Weight

14650kg 32300lbs

Safe Working Load

280kg 620lbs 620lbs

Jib Boom Arc

150°

Basket Rotation

180°

Basket Width

2.4m 7ft 10in

Basket Depth

0.9m 2ft 11in

Power Options

Hybrid (Battery & Kubota D1105)

SP85 4x4 Diagram

Diagram of HR28 4x4
