SP34N | Self Propelled Boom Lift
Working Height
12.2m 40ft
Platform Height
10.2m 33ft 6in
Working Outreach
6.1m 20ft
Safe Working Load
200kg 440lbs500lbs
Minimum Weight
3435kg 7575lbs

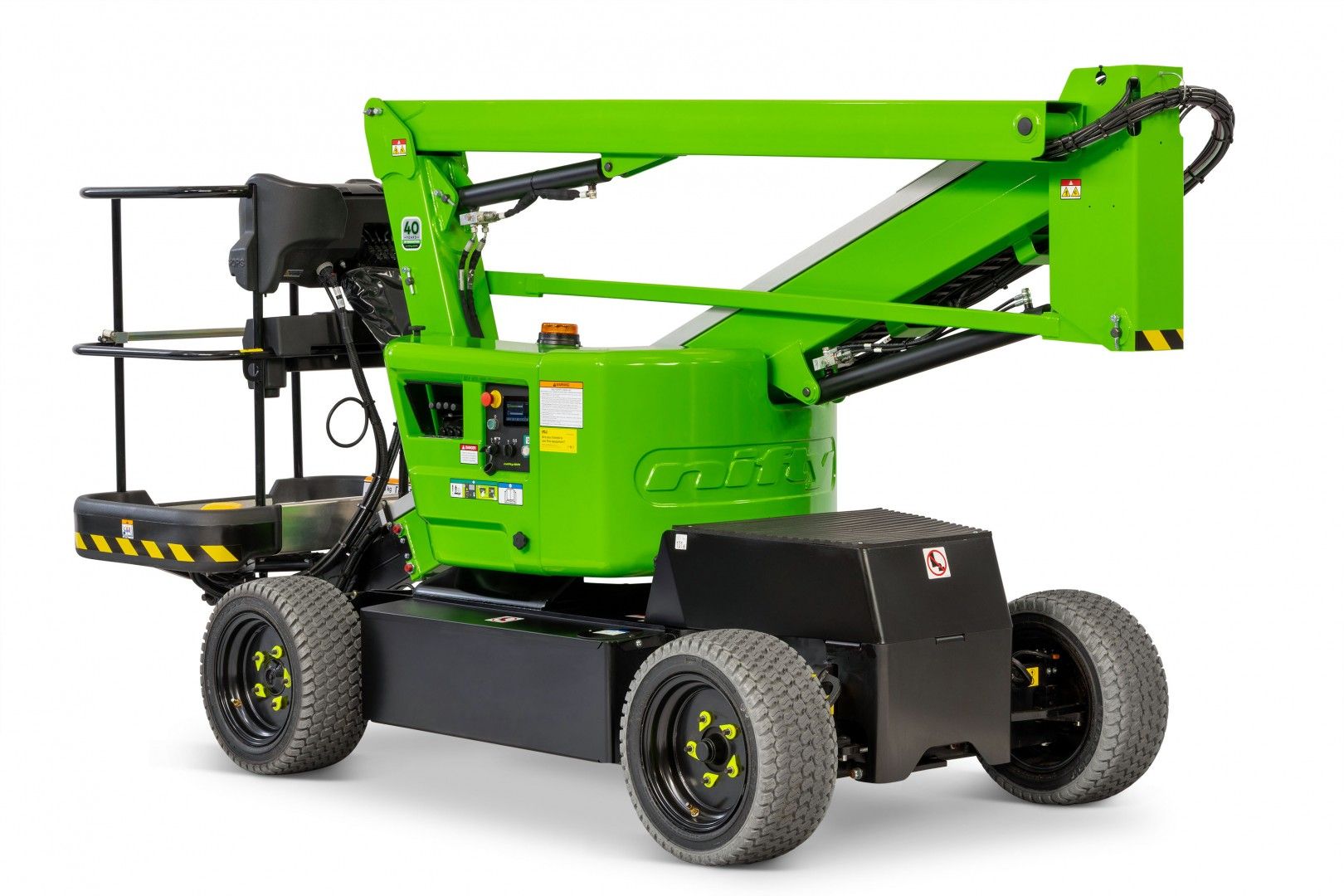

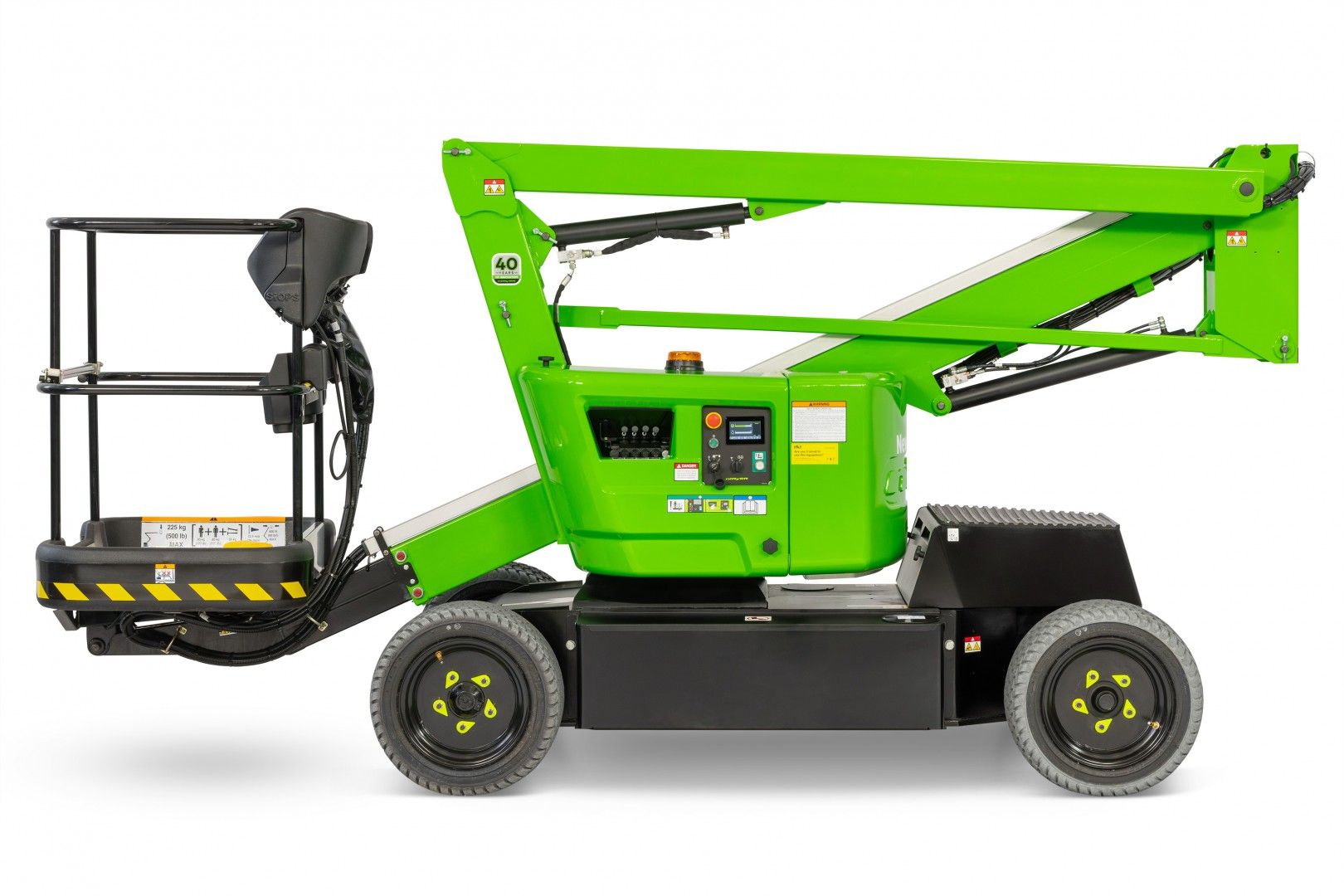

The SP34N boom lift is one of the most versatile and reliable machines in its class.
It is specifically designed to give maximum reach performance from the lightest, most compact base possible. A telescopic upper boom gives the SP34N boom lift improved accuracy when positioning the platform and superb maneuverability makes it ideal for a wide range of applications.
With a 4ft 11in narrow chassis, the SP34N boom lift is ideal for working in factories, warehouses or anywhere that space is restricted.

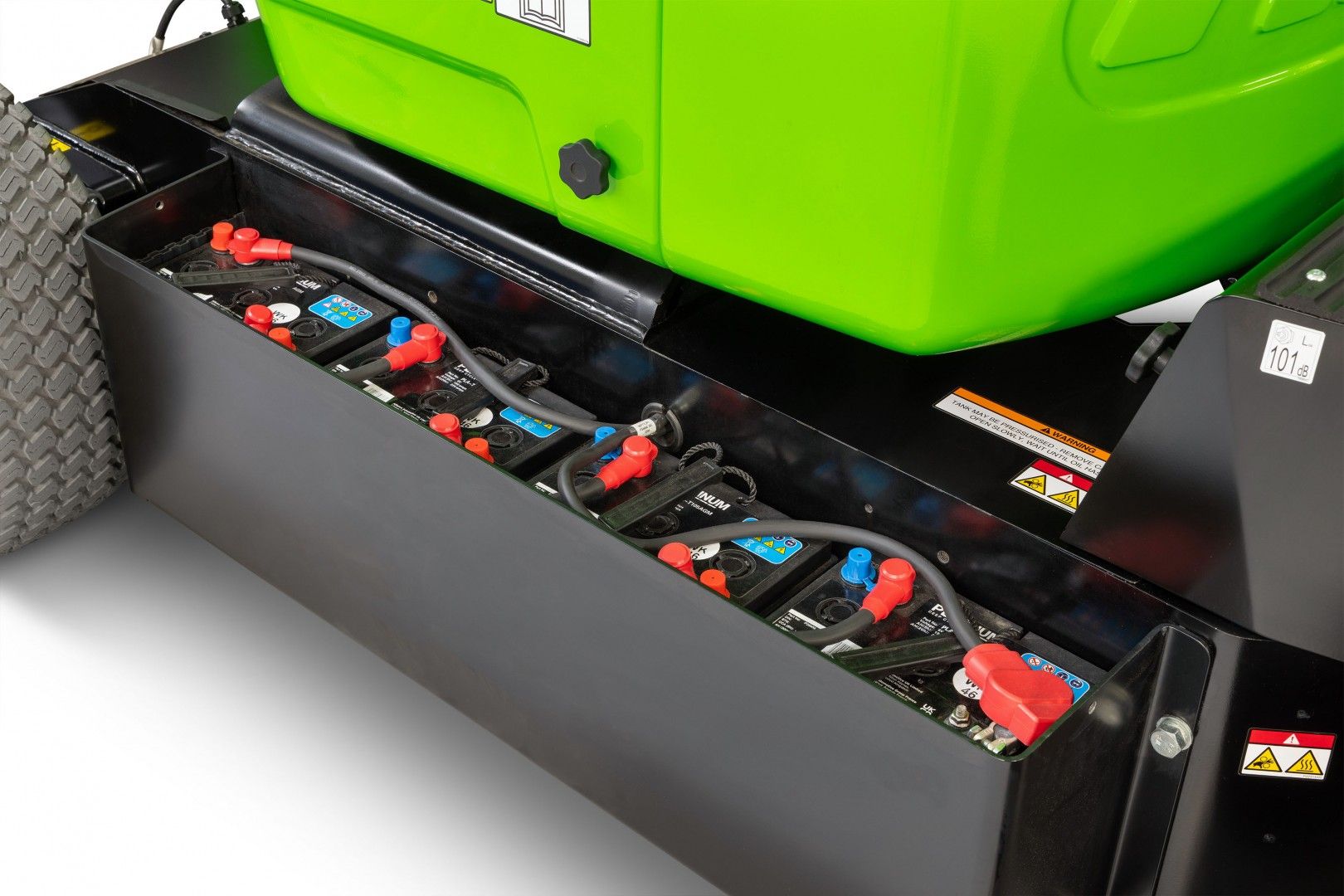

Its Bi-Energy option allows the SP34N boom lift to work for extended periods inside and outside, making it the perfect all-rounder.
For more information regarding the SP34N or any other self-propelled cherry picker, including the SP45N and SP50N, please got to our inquire now page.
SP34N Features

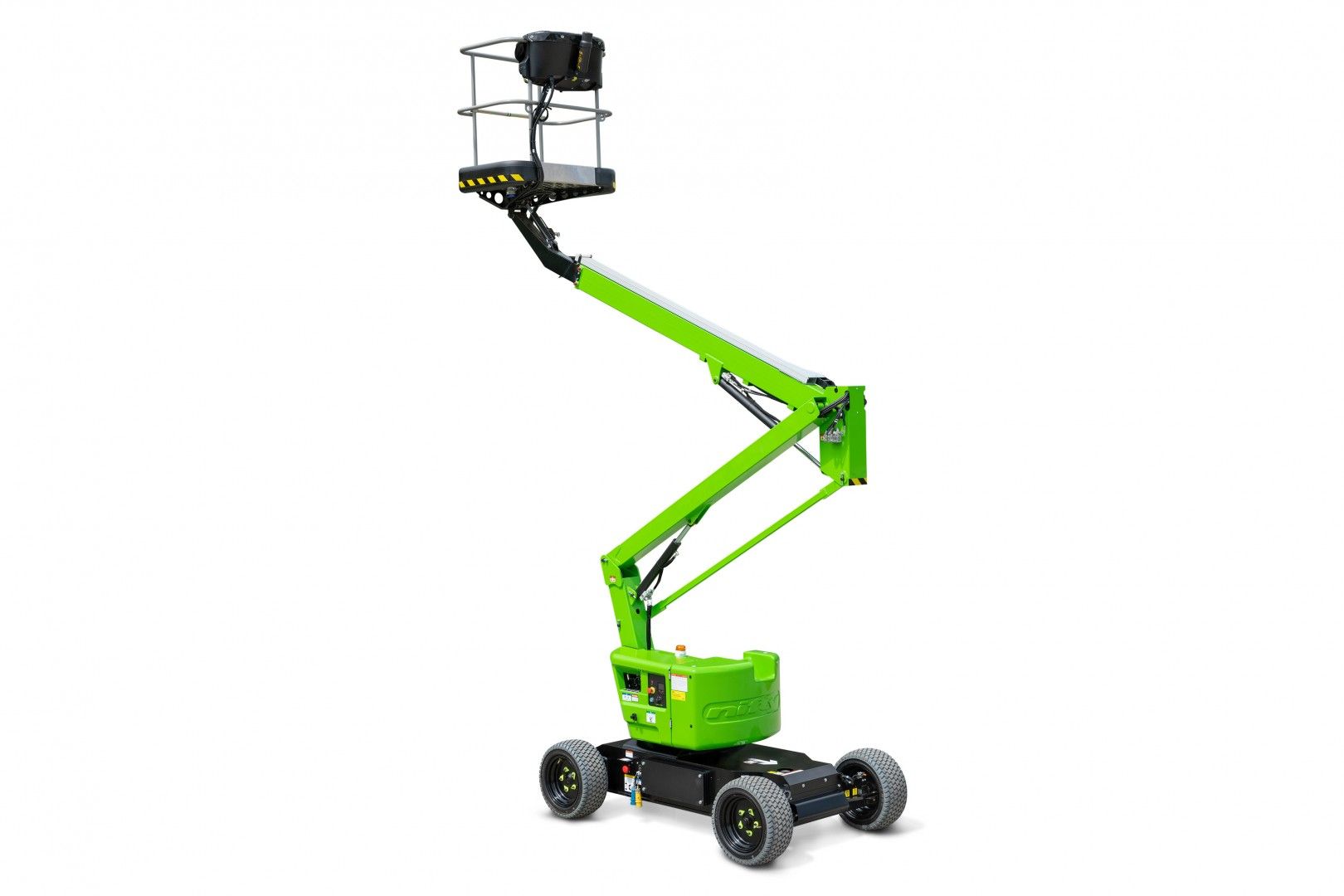

Telescopic Upper Boom
Greater accuracy when positioning platform
Weight Only 7,575lbs

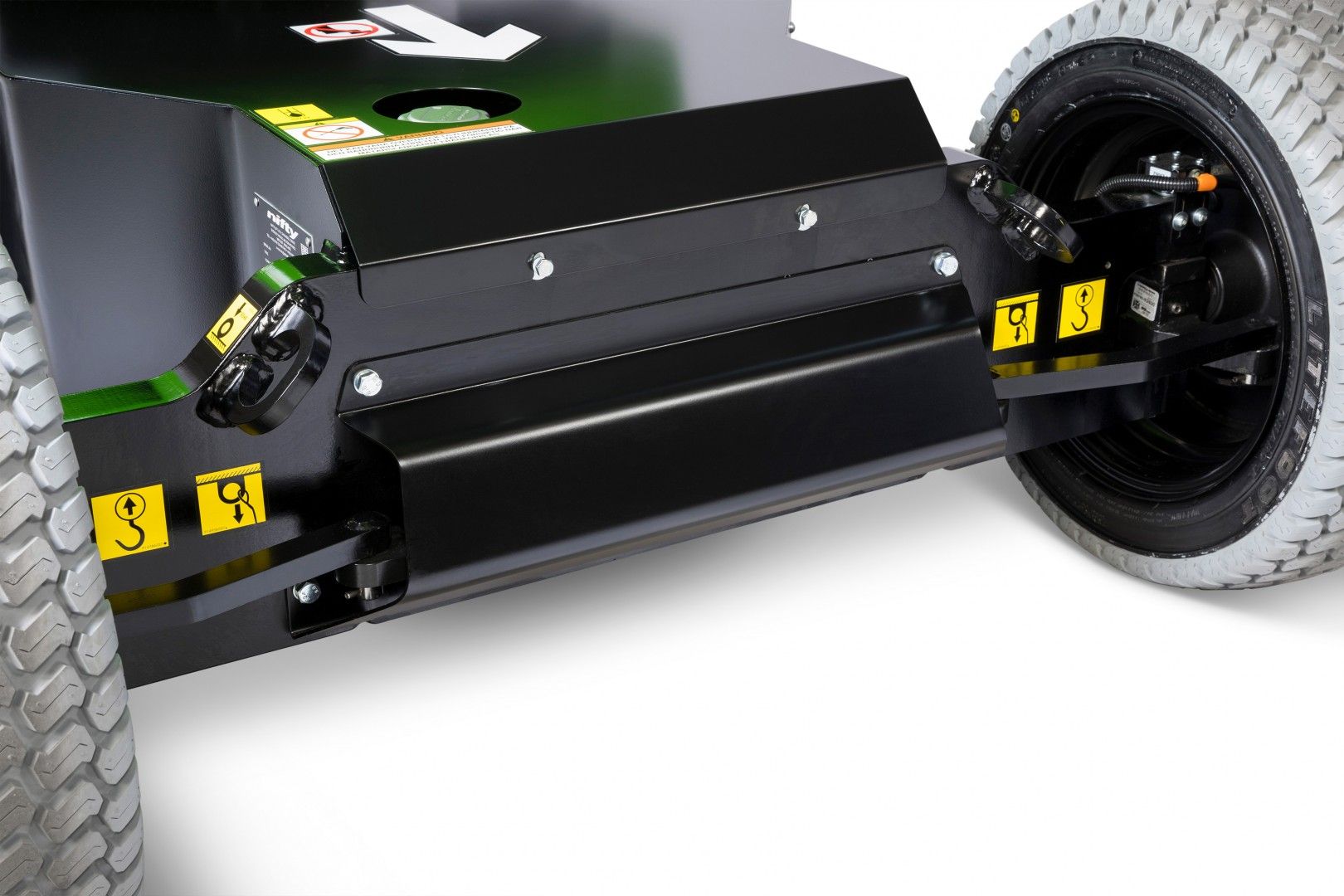

Low cost transportation

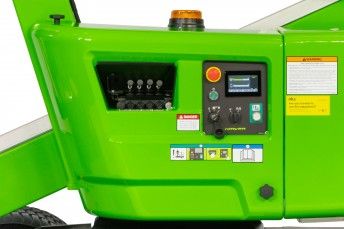

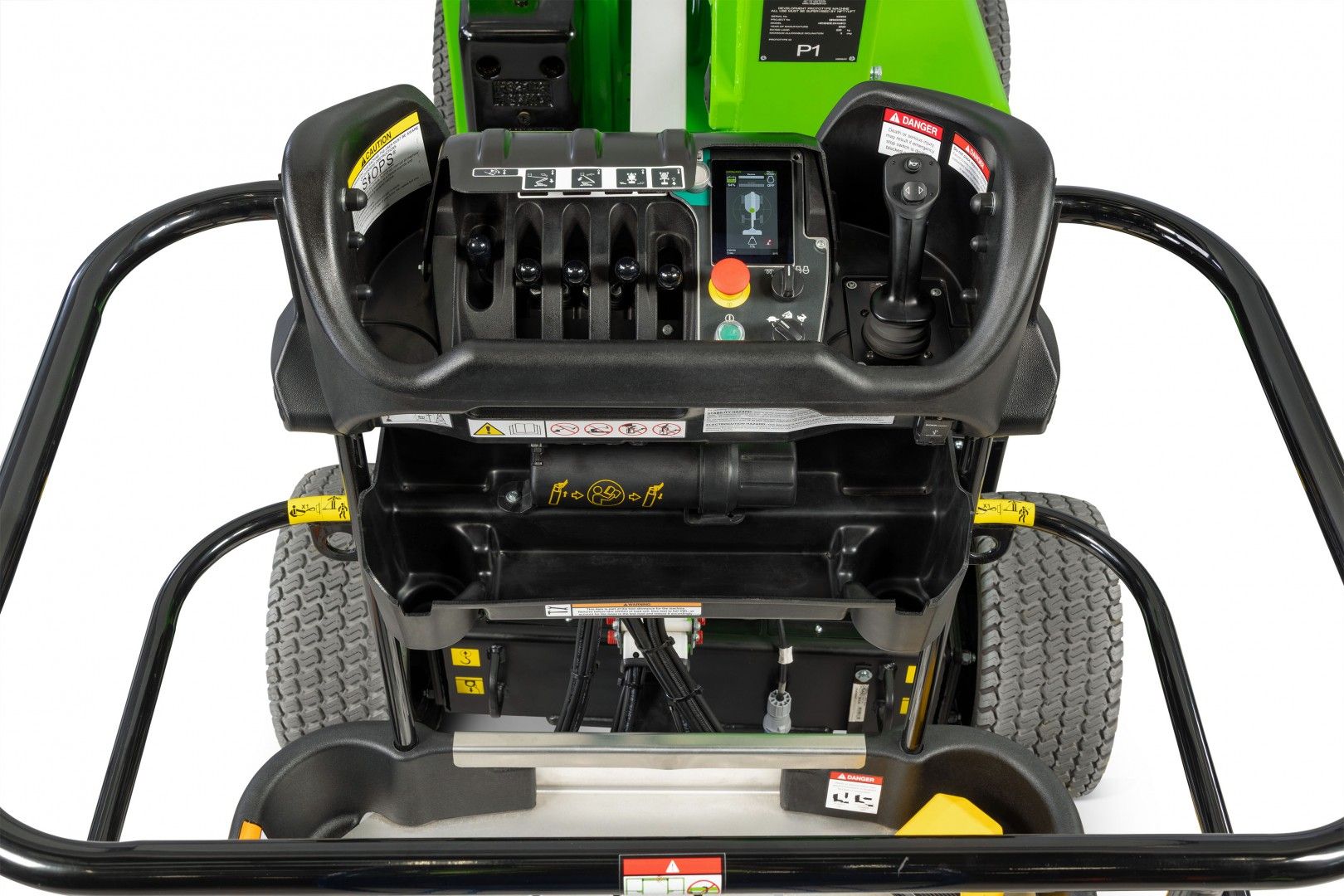

Fully Proportional Hydraulic Controls
Simple, reliable & easy to maintain

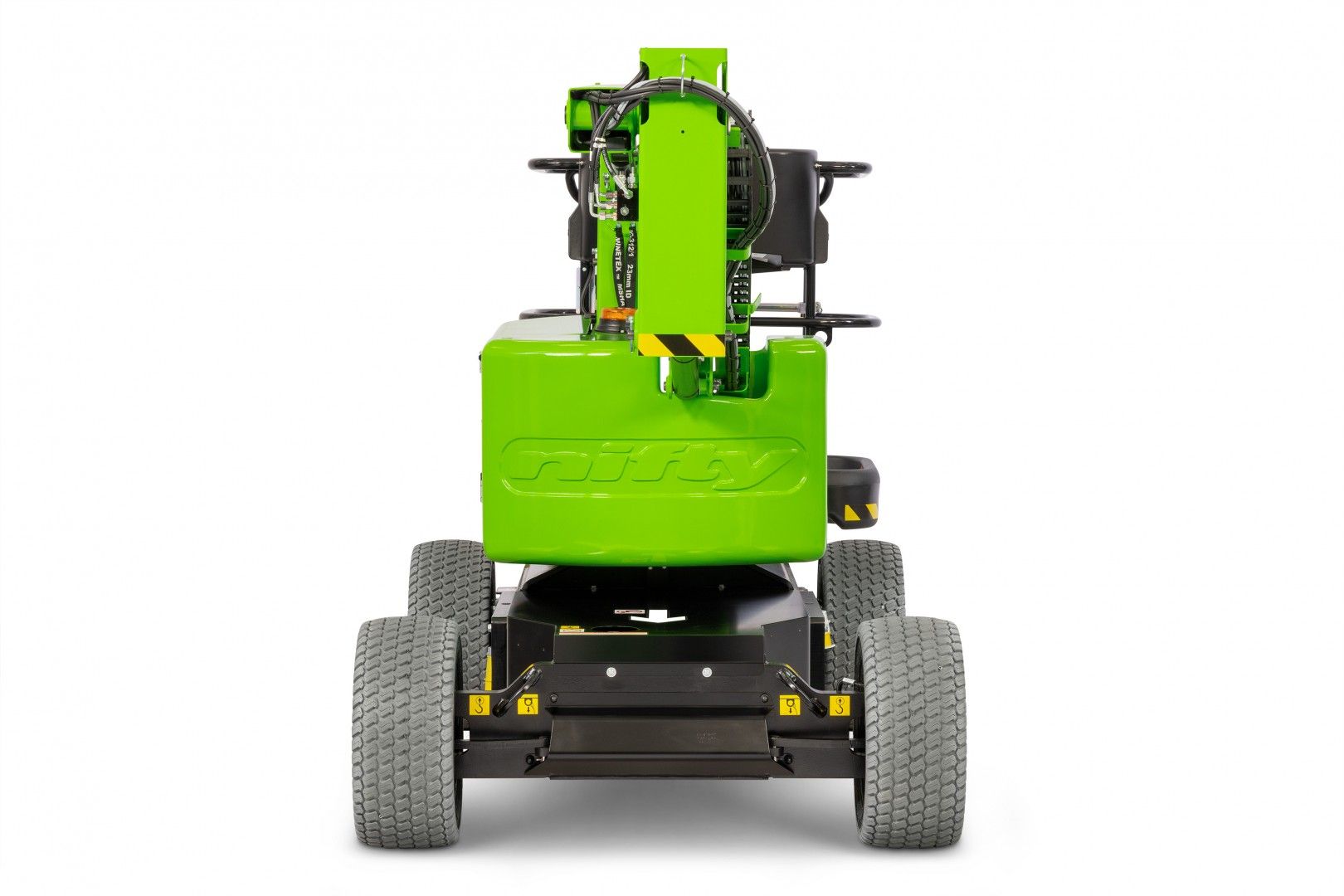

4ft 11in Chassis Available
Improved narrow aisle access

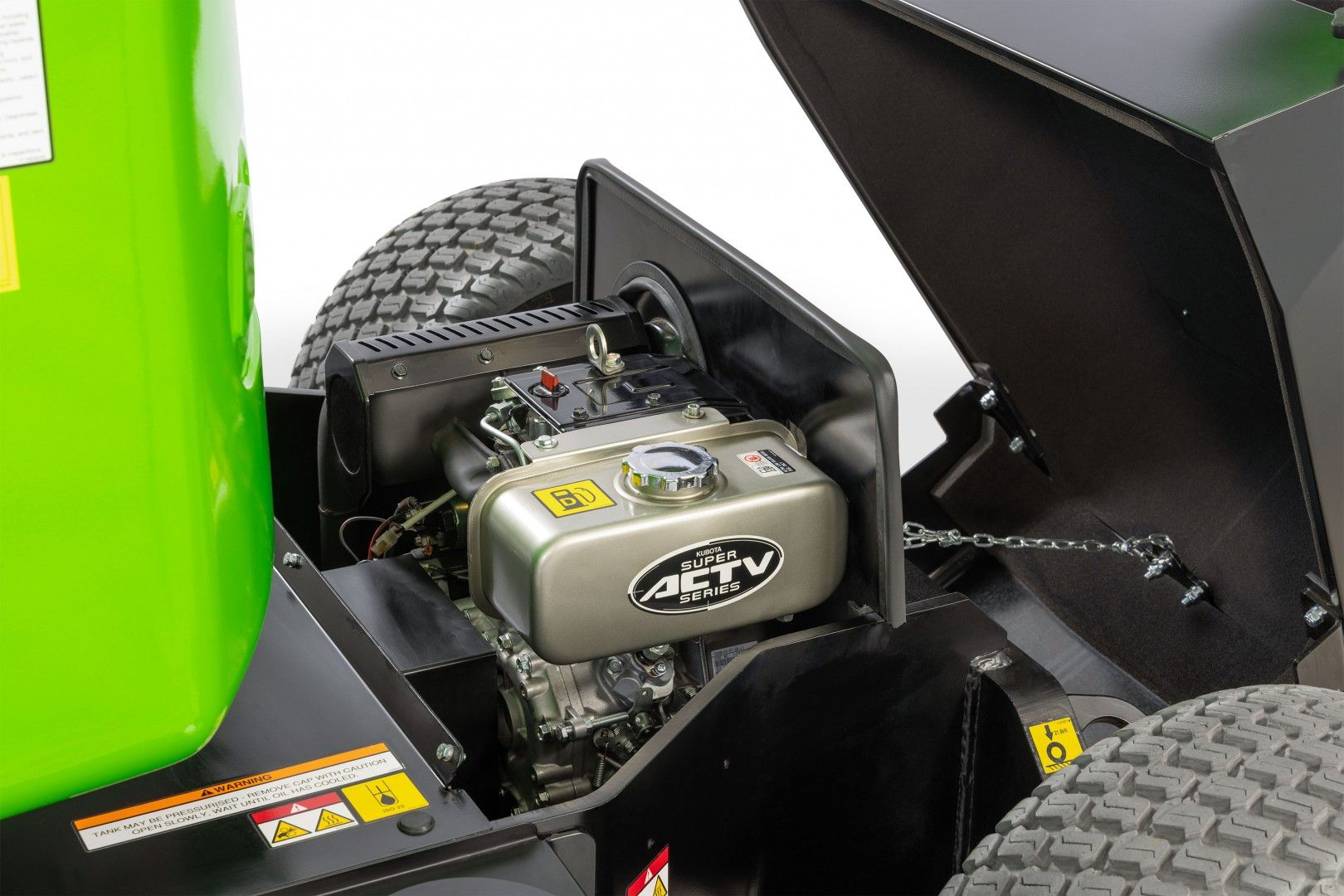

Bi-Energy Available
Optimising utilization
SP34N Specifications
Working Height (A)
12.2m 40ft
Working Outreach (C)
6.1m 20ft
Platform Height (B)
10.2m 33ft 6in
Machine Width (F)
1.5m 4ft 11in
Machine Height (D)
1.9m 6ft 3in
Machine Length (J)
4.1m 13ft 5in
Travel Speed
3.4km/h 2.1mph
Gradeability
25% / 14°
Turning Radius
4.2m 13ft 9in
Minimum Weight
3435kg 7575lbs
Safe Working Load
200kg 440lbs 500lbs
Basket Width
1.1m 3ft 7in
Basket Depth
0.65m 2ft 2in
SP34N Diagram
