Quick Specifications
Working Height
20.8m 68ft 6in
Platform Height
18.8m 62ft
Working Outreach
13m 42ft 8in
Safe Working Load
250kg 550lbs550lbs
Minimum Weight
6680kg 14,730lbs14,790lbs
Full Specifications
Complete technical data for this machine.
Working Height (A)
20.8m 68ft 6in
Working Outreach (C)
13m 42ft 8in
Platform Height (B)
18.8m 62ft
Machine Width (F)
2.27m 7ft 5in
Machine Height (D)
2.18m 7ft 2in
Machine Length (J)
6.62m 22ft
Transport Length (H)
5.47m 17ft 11in
Travel Speed
6km/h 3.7mph
Gradeability
45% / 24°
Turning Radius
3.89m 12ft 9in
Minimum Weight
6680kg 14,730lbs 14,790lbs
Safe Working Load
250kg 550lbs 550lbs
Jib Boom Arc
150°
Basket Rotation
160°
Basket Width
1.8m 5ft 11in
Basket Depth
0.8m 2ft 8in

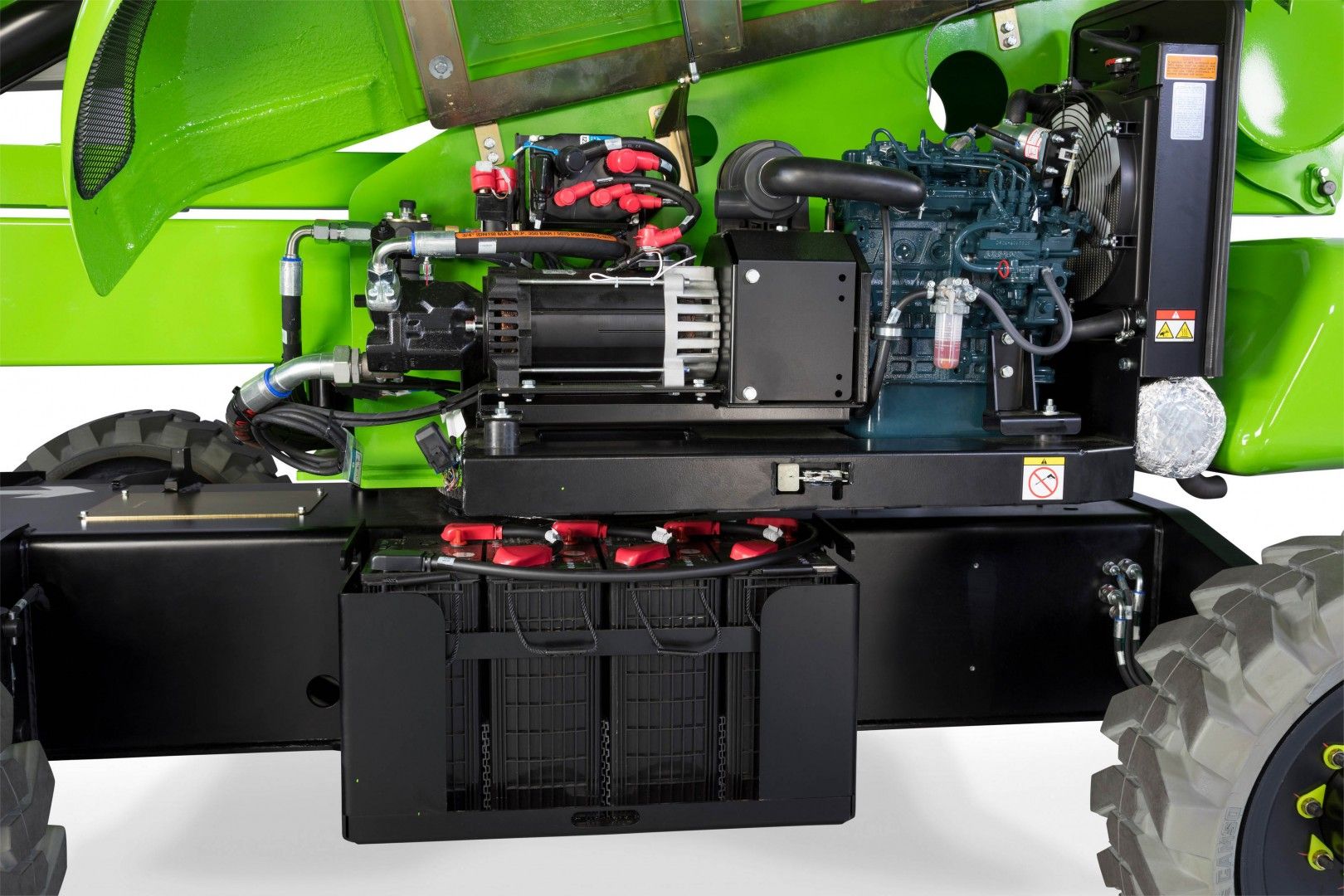

Power Options
Key Features
Engineered for performance and safety, these key features help you work smarter and more efficiently at height.
