HR12 4x4 (MK2) | 12.1m Self Propelled

Working Height

12.1m 39ft 6in

Platform Height

10.1m 33ft

Working Outreach

6.4m 21

Safe Working Load

227kg 500lbs500lbs

Minimum Weight

3450kg 7605lbs7605lbs

Enquire Now Download Spec Sheet

Environmentally Conscious Design

The new HeightRider 12 Four-by-Four (HR12 4x4) from Niftylift represents the next generation of environmentally conscious, self-propelled work platforms. Designed with sustainability in mind, it is perfect for both indoor and outdoor applications and offers versatility and efficiency.

Exceptional Manoeuvrability and Performance

The HR12 4x4 can be operated directly from the cage while elevated, offering a remarkable working envelope from its stable and agile chassis. Its compact dimensions make it perfect for diverse work environments and allow for quick repositioning from one site to another.

Superior Mobility and Efficiency

Equipped with powerful four-wheel-drive motors, the HR12 4x4 ensures excellent grip and gradability. Its compact turning circle and robust traction make it easy to manoeuvre on slopes and uneven surfaces. The machine's low overall weight allows operation on various surfaces, reducing both running costs and emissions through lower fuel consumption.

Cost-Effective Transportation

Thanks to its low weight and compact design, the HR12 4x4 lowers transportation costs by enabling the use of smaller, more efficient site-to-site transport vehicles.

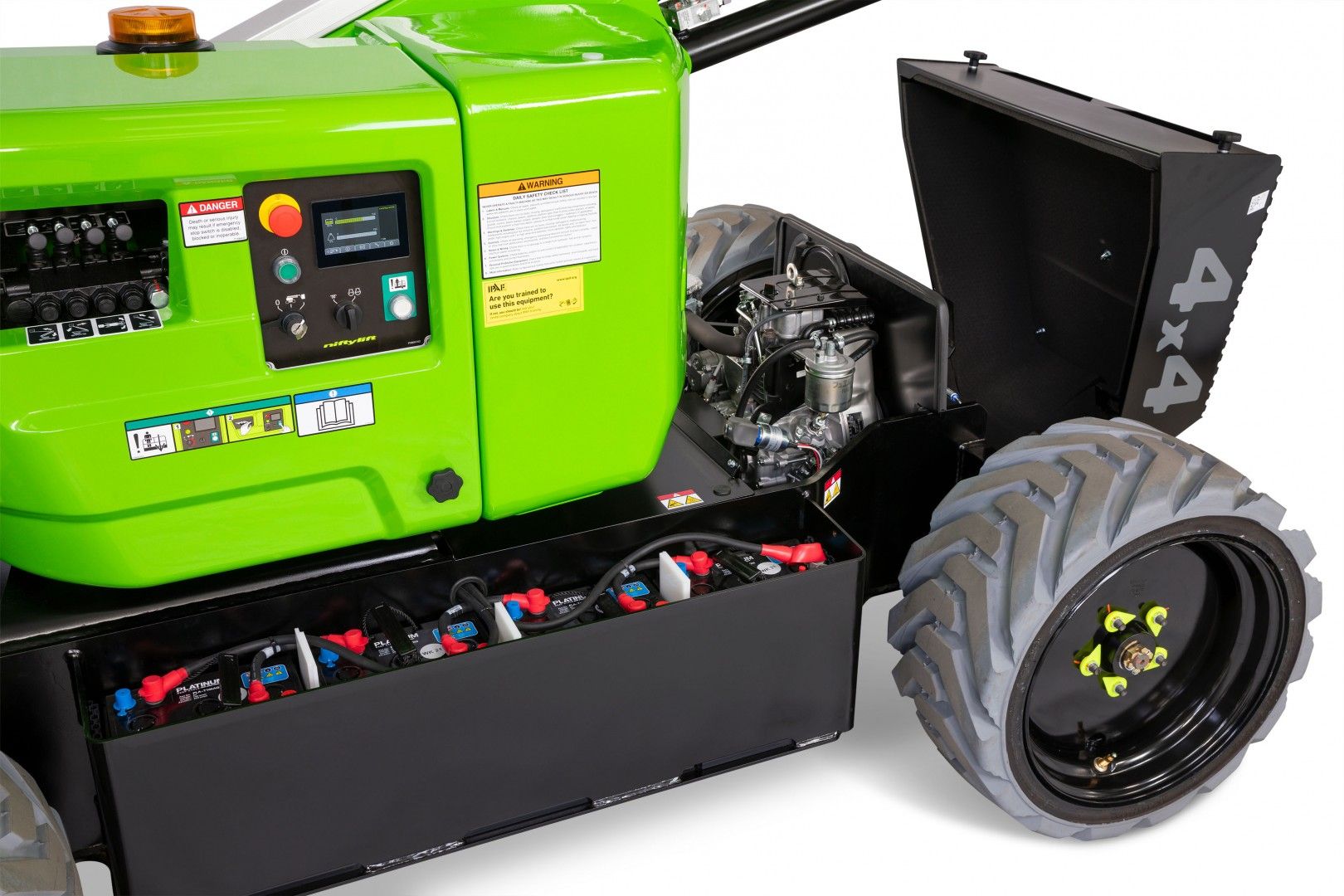

Cutting-Edge Hybrid Power System

The HR12 4x4 features Niftylift’s pioneering second-generation plug-in Hybrid power system as standard. This system combines a power-optimised EU Stage V-compliant diesel engine with an electric motor, providing extra power when needed. This ensures maximum efficiency by reducing fuel consumption while maintaining top performance. The innovative 'Diesel Re-Gen' feature recharges the batteries during idle periods, offering a 'fast charge' whenever the engine is running.

Zero-Emission Operation

The HR12 4x4 offers an electric-only mode for environments requiring minimal noise and emissions, making it ideal for indoor use and locations needing clean, quiet operation.

Robust and User-Friendly Design

The HR12 4x4’s impact-resistant ToughCage can safely accommodate two people and their tools. Fully proportional controls enable smooth and precise operation, and the telescopic upper boom ensures accurate positioning within its extensive working envelope.

Enhanced Safety Features

Safety is paramount with Niftylift’s award-winning 'Sustained Involuntary Operation Prevention System' (SiOPS®). SiOPS® immediately halts all machine functions if the operator is pushed onto the control console, preventing serious injuries.

Advanced Telematics with Niftylink

The HR12 4x4 is equipped with Niftylink®, Niftylift’s advanced telematics solution. Niftylink provides real-time data on machine health, activity, and location, accessible via the Niftylink Go app or the Niftylink Manager Portal. This feature enhances understanding of machine usage, performance, and life-cycle, while real-time error-code reporting maximises machine 'up-time' and reduces running costs, significantly boosting efficiency and profitability.

Contact Us

For more information about the HR12 4x4 or other Niftylift self-propelled boom lifts like the HR12NE and HR12LE, please get in touch with us. We're here to help you find the perfect solution for your access needs.

HR12 4x4 (MK2) Features

Second-Generation Hybrid Power

Smart, efficient, environmentally conscious power

EU Stage V Compliant Engine

Lowered emissions for greener performance

GVW From Only 3,450kg

Low cost transportation

ToughCage with SiOPS®

Multi-award winning operator protection

Telescopic Upper-Boom

Greater accuracy when positioning platform

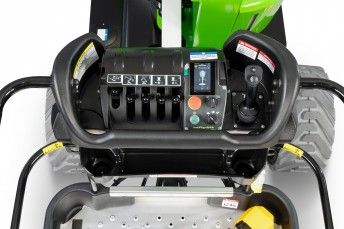

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

HR12 4x4 (MK2) Specifications

Working Height (A)

12.1m 39ft 6in

Working Outreach (C)

6.4m 21

Platform Height (B)

10.1m 33ft

Machine Width (F)

1.6m 5ft 3in

Machine Height (D)

1.99m 6ft 6in

Machine Length (J)

4.05m 13ft 3in

Travel Speed

5.25km/h 3.3mph

Gradeability

40%

Gradeability

22°

Turning Radius

3.5m 11ft 6in

Minimum Weight

3450kg 7605lbs 7605lbs

Safe Working Load

227kg 500lbs 500lbs

Cage Width

1.05m 3ft 5in

Cage Depth

0.7m 2ft 4in

Power Options

Hybrid (Battery & Diesel)

HR12 4x4 (MK2) Diagram

Diagram of HR12 4x4 (MK2)
