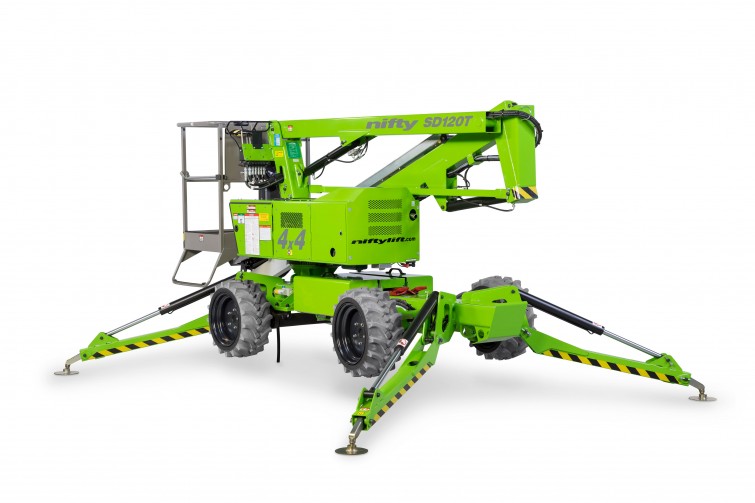

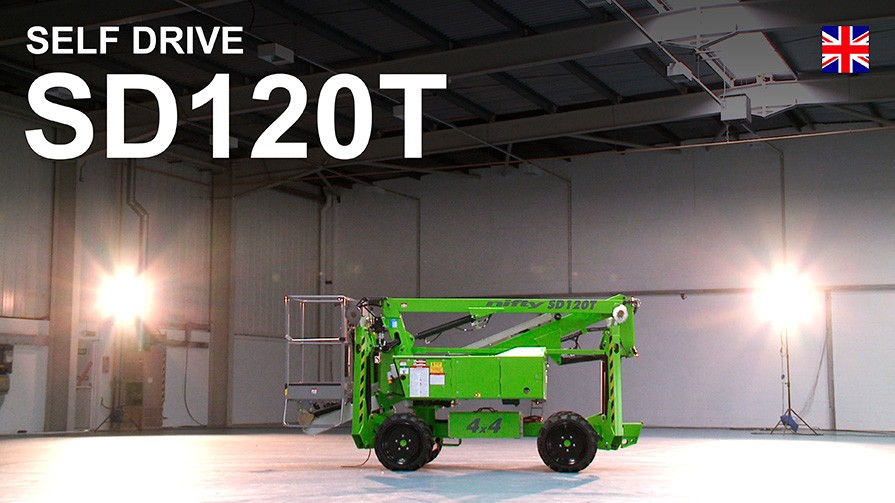

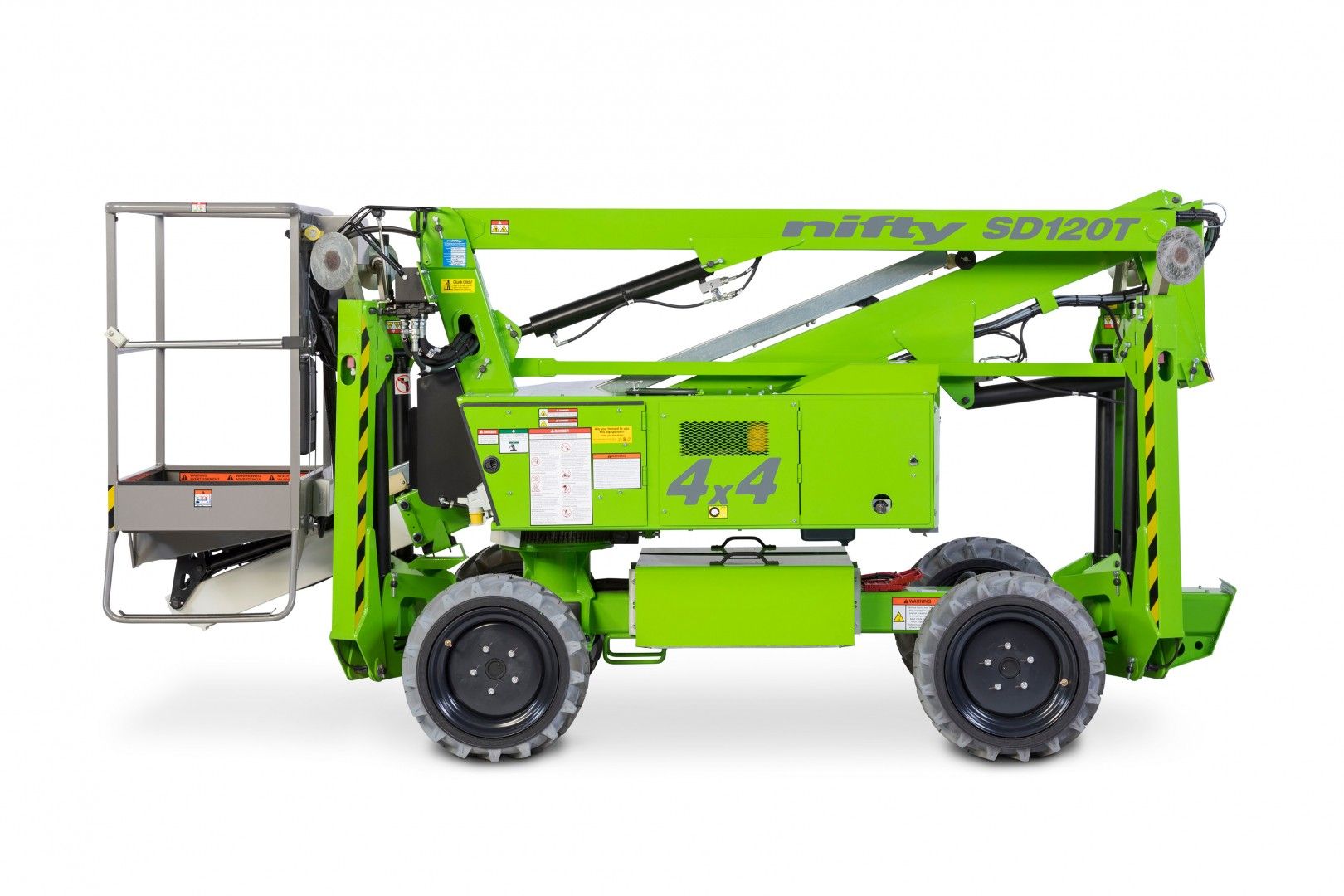

SD120T 4x4 | 12.65m Self Drive

Working Height

12.65m 42ft

Platform Height

10.65m 35ft

Working Outreach

6.1m 20ft

Safe Working Load

200kg 440lbs500lbs

Minimum Weight

2260kg 4980lbs4630lbs

Enquire Now Download Spec Sheet

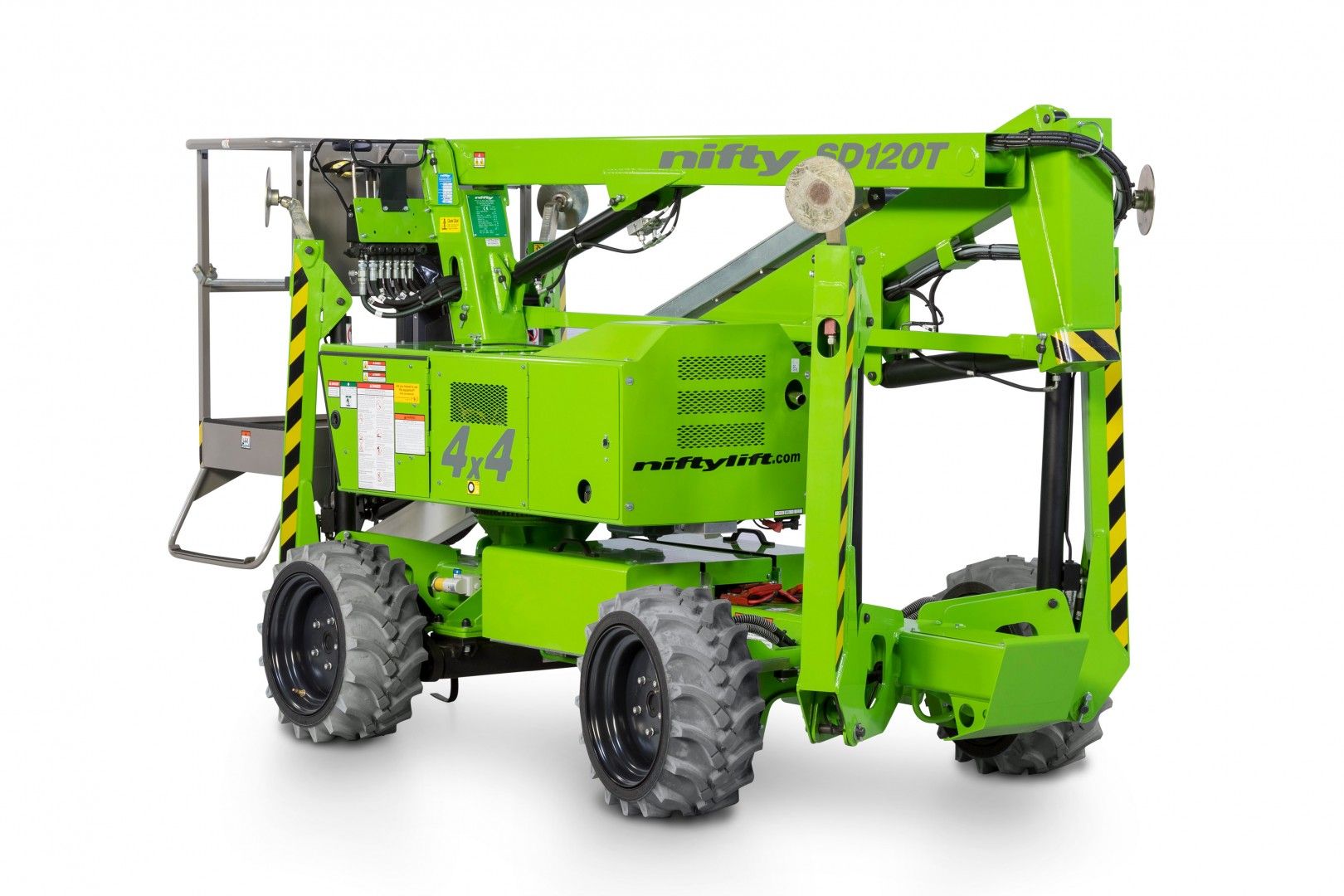

The SD120T 4x4 self-drive work platform delivers an impressive working envelope and with the advantage of a telescopic upper boom, supreme accuracy when positioning the platform.

Hydraulic outriggers and 45% gradeability allow the SD120T 4x4 to be driven and levelled on uneven surfaces making it ideal for environments with rough or softer ground and its low overall weight means better fuel efficiency and lower transportation costs.

Niftylift's highly effective Bi-Energy system increases flexibility and maximises utilisation allowing the SD120T 4x4 to operate for longer and in a wider range of environments.

For more information regarding the SD120T 4x4 or any other self-drive work platform, including the SD170 4x4 and SD210 4x4x4, please contact us.

SD120T 4x4 Features

Weight Saving Design

Low cost transportation and better fuel economy on site

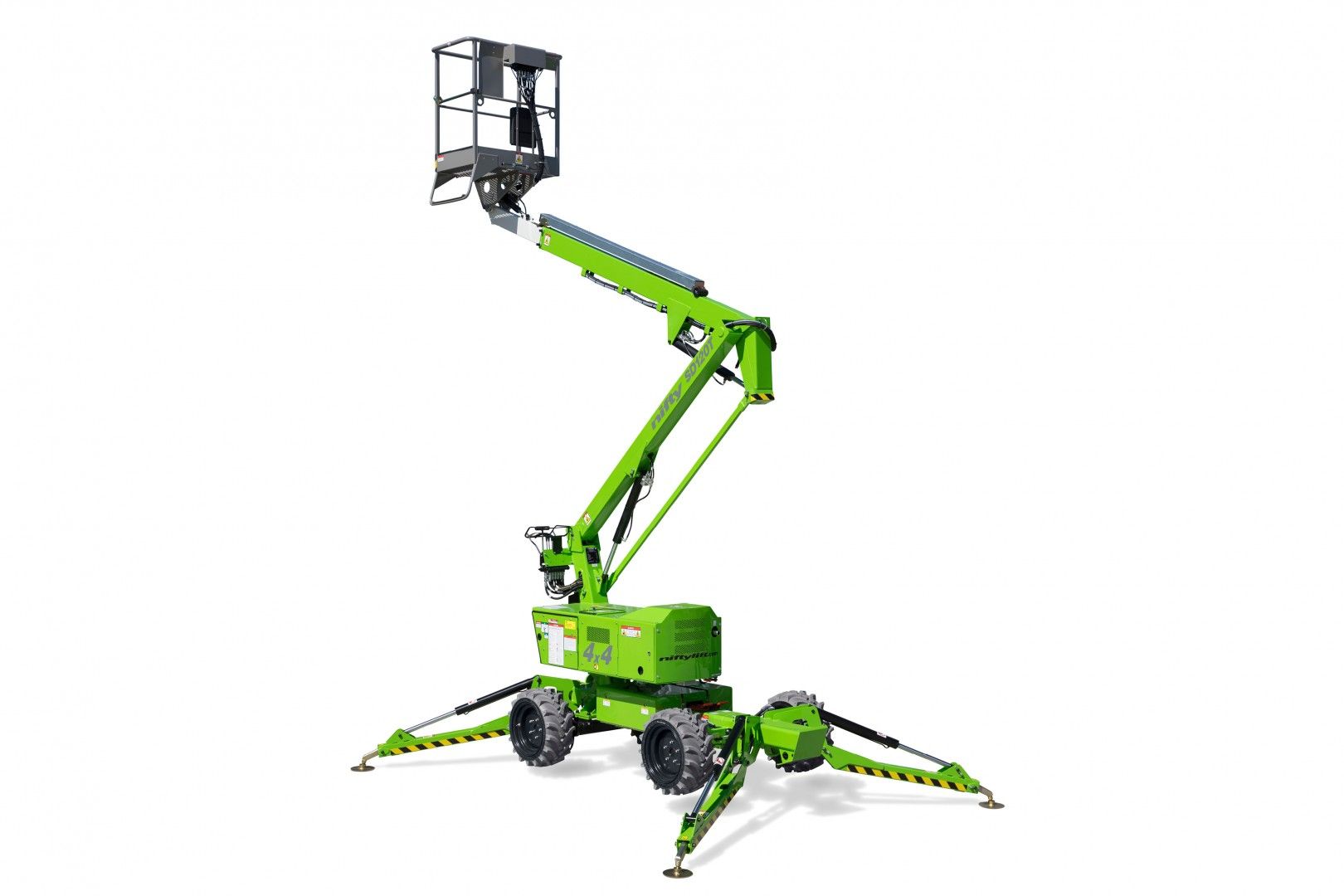

Telescopic Upper Boom

Greater accuracy when positioning the platform

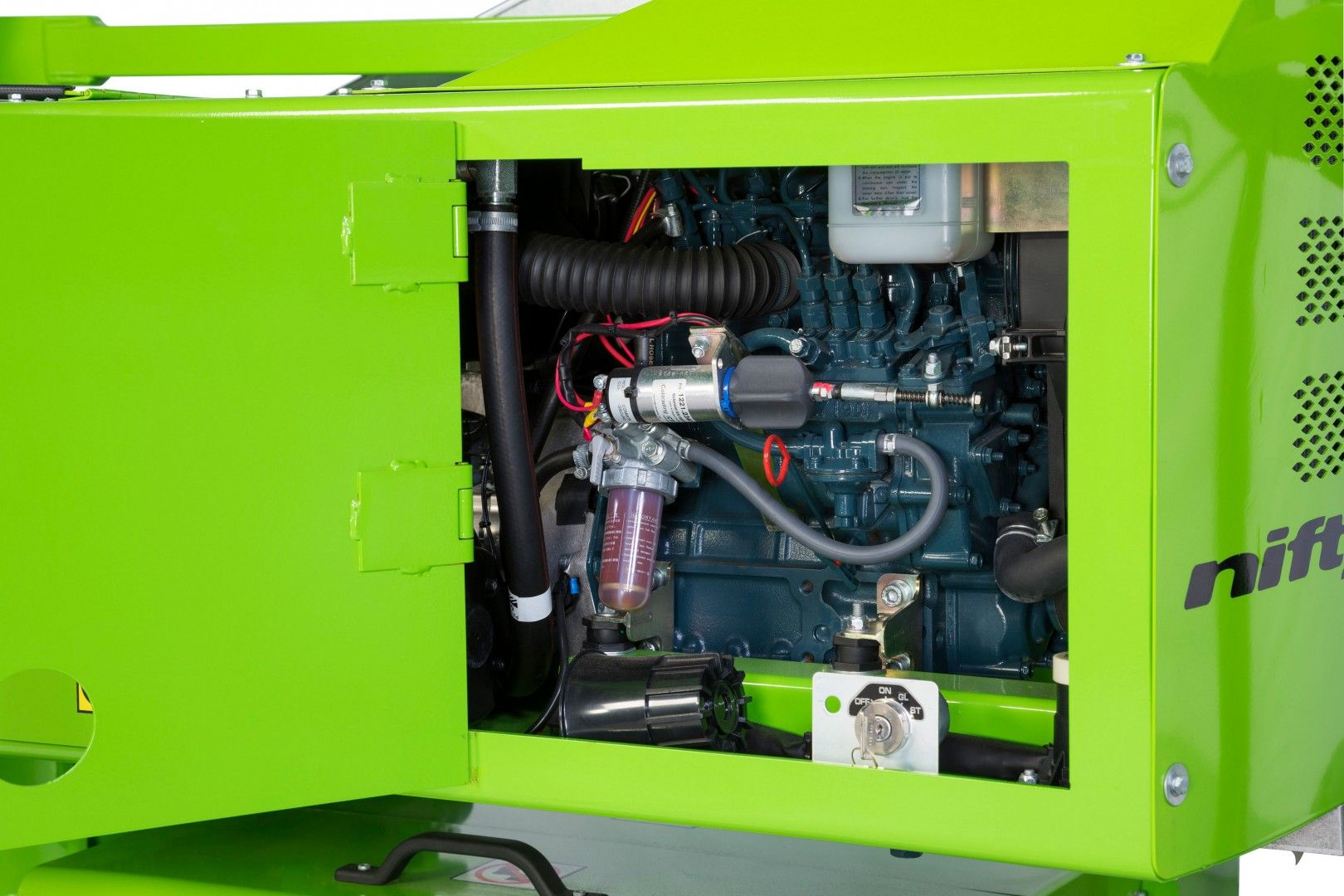

Bi-Energy Available

Optimising utilisation

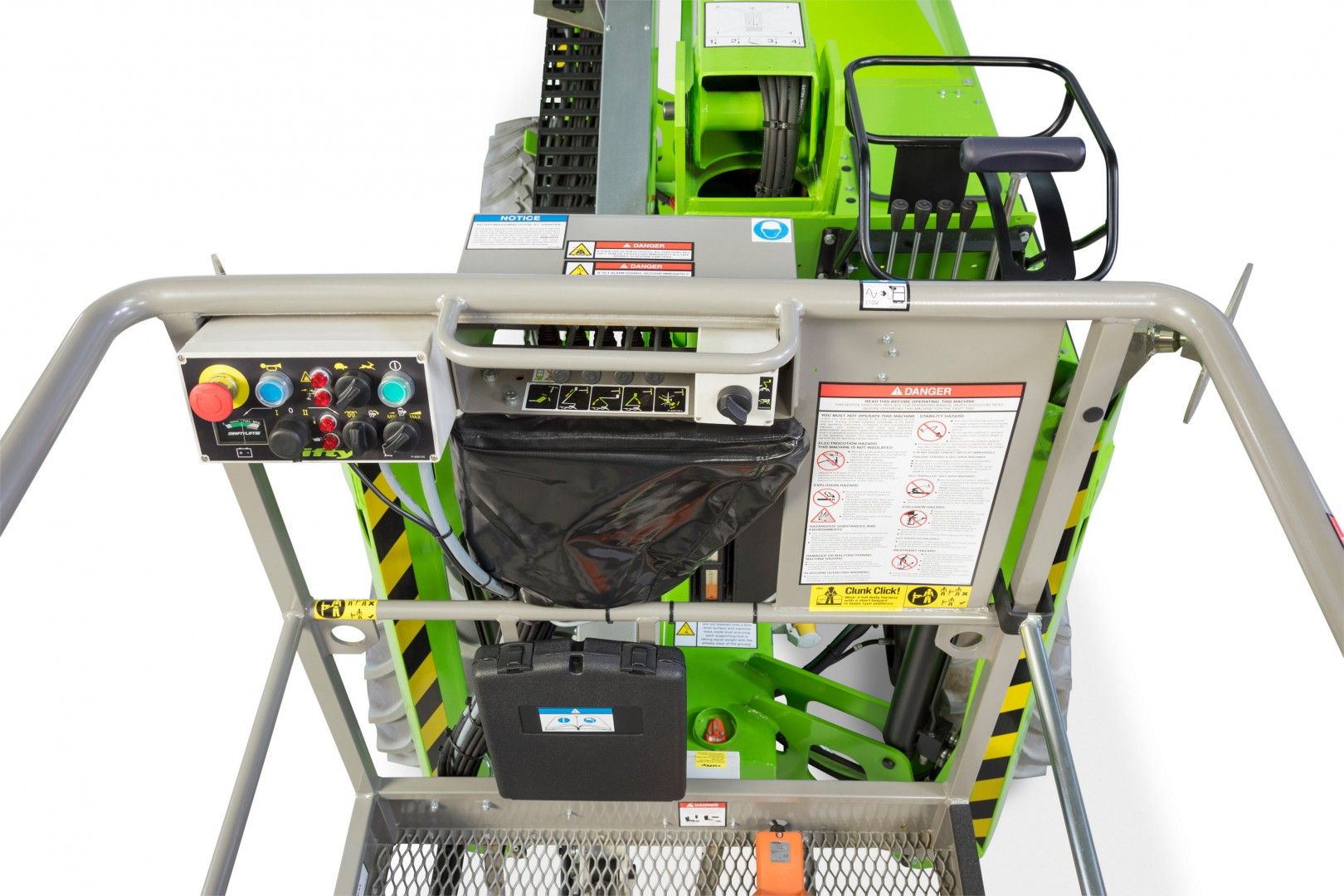

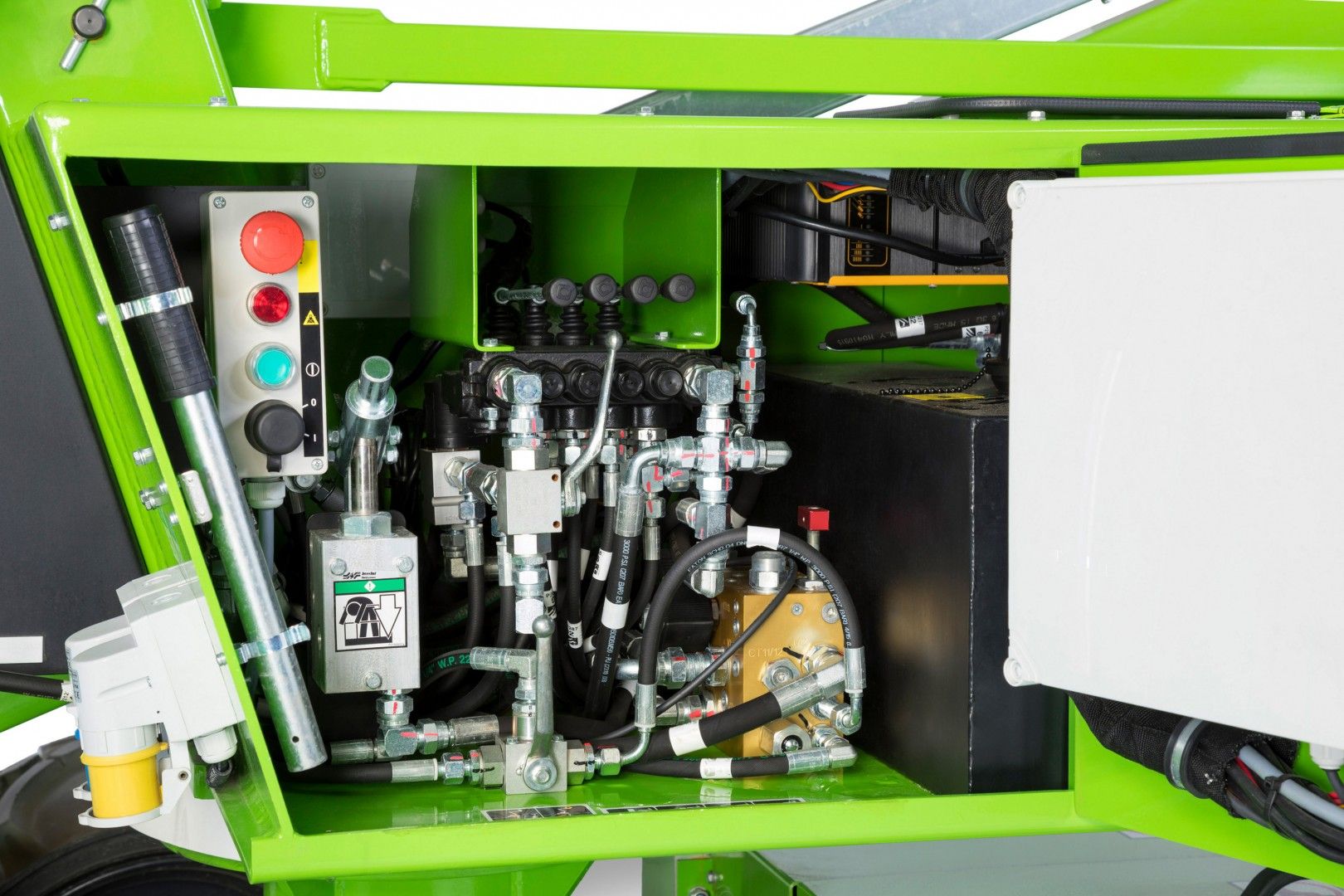

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

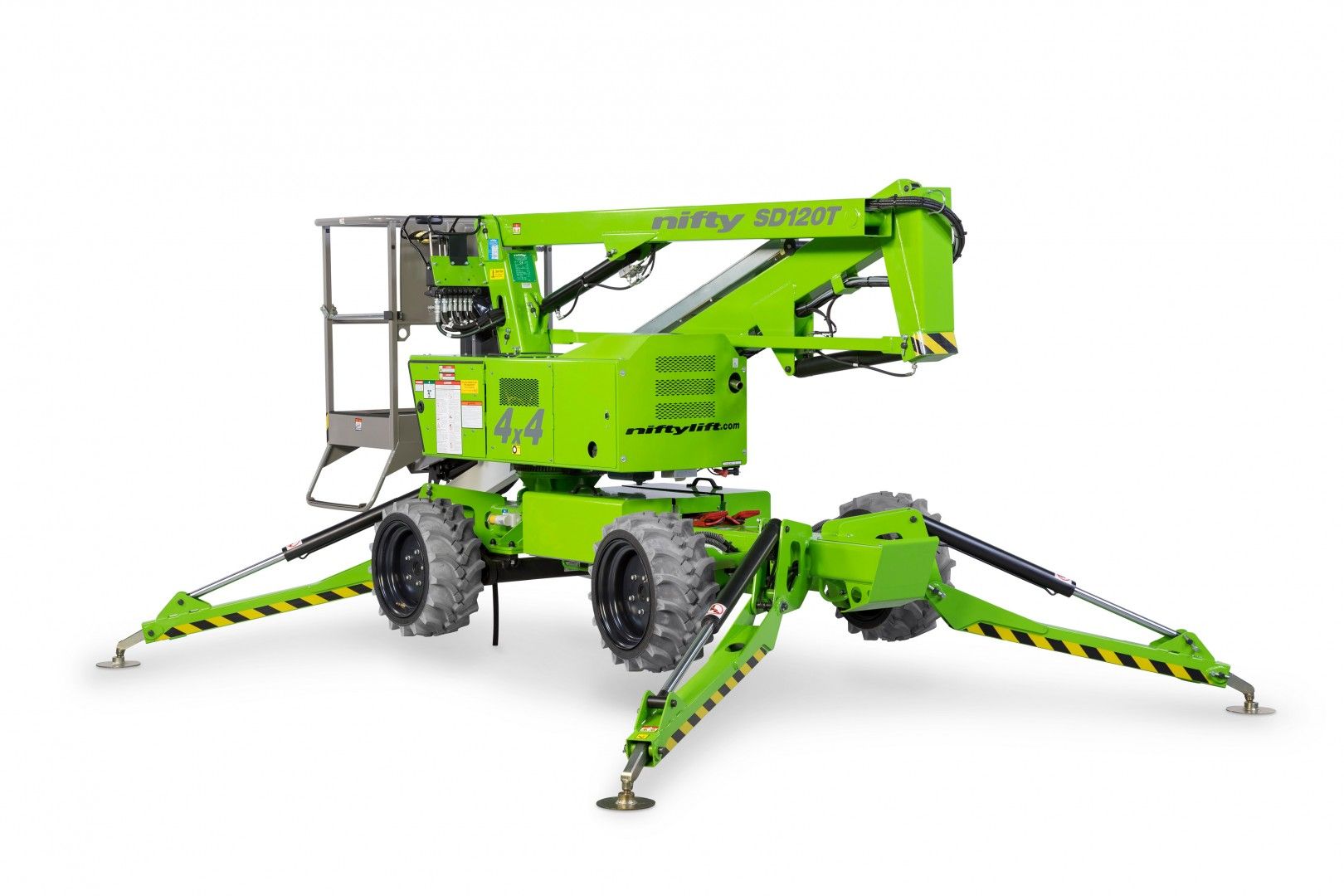

Hydraulic Outriggers

Quick and easy to set up

SD120T 4x4 Specifications

Working Height (A)

12.65m 42ft

Working Outreach (C)

6.1m 20ft

Platform Height (B)

10.65m 35ft

Machine Width (F)

1.56m 5ft 1in

Machine Height (D)

1.95m 6ft 5in

Machine Length (J)

3.9m 12ft 10in

Working Width (G)

3.2m 10ft 6in

Travel Speed

5.8km/h 3.6mph

Gradeability

45% / 24°

Turning Radius

3.9m 12ft 10in

Minimum Weight

2260kg 4980lbs 4630lbs

Safe Working Load

200kg 440lbs 500lbs

Cage Width

1.1m 3ft 7in

Cage Depth

0.65m 2ft 2in

Maximum Slope

23% / 13°

Power Options

Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)

SD120T 4x4 Diagram

Diagram of SD120T 4x4
