Working Height
20.8m 68ft 6in
Platform Height
18.8m 62ft
Working Outreach
13m 42ft 8in
Safe Working Load
250kg 550lbs550lbs
Minimum Weight
6640kg 14640lbs14730lbs

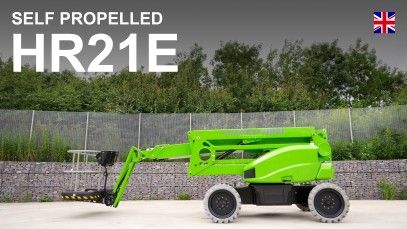

The HeightRider 21 All-Electric (HR21E) is a self-propelled cherry picker and will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m.
Proportional controls deliver smooth, measured operation, while 160º cage rotation and 150º fly boom allow precise positioning anywhere in its vast working envelope.
Weighing just 6,640kg, the HR21E combines innovative weight and space-saving design with an excellent turning circle to deliver outstanding manoeuvrability on-site and lower transportation costs.
The HR21E's 1.8m wide ToughCage (steel cage option available) offers more space for materials and tools. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage also add strength and durability, while the multi-award-winning SiOPS® provides additional operator protection.
The HR21E utilises a super-efficient battery power system with an all-electric drive, making it ideal for indoor use or quiet, clean operation. The system allows the batteries to work for longer, so more work can be completed on a charge and running costs reduced.
The HR21E is also fitted with Niftylink as standard. Niftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and lifecycle, as well as real-time error-code reporting. By maximising machine uptime and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you get more from your Niftylift.
For more information regarding the HR21E or any other self-propelled boom lift, including the HR17 4x4 and HR21 4x4, please contact us.
HR21E Features
All-Electric Drive
Outstanding battery performance
Maintenance-Free Batteries
Reducing maintenance downtime
Full Battery Monitoring & Protection
Increasing battery life and lowering costs
GVW Only 6,640kg
Lightest in its class
160º Platform Rotation & Fly-Boom
Improved access to applications
25% Gradeability
Impressive 2WD performance
Superb Manoeuvrability
3.89m outside turning radius
ToughCage with SiOPS®
Multi-award winning operator protection
Niftylink® as Standard
Advanced Telematics for your Niftylift
HR21E Specifications
Working Height (A)
20.8m 68ft 6in
Working Outreach (C)
13m 42ft 8in
Platform Height (B)
18.8m 62ft
Machine Width (F)
2.27m 7ft 5in
Machine Height (D)
2.18m 7ft 2in
Machine Length (J)
6.62m 22ft
Transport Length (H)
5.47m 17ft 11in
Travel Speed
6km/h 3.7mph
Gradeability
25% / 14°
Turning Radius
3.89m 12ft 9in
Minimum Weight
6640kg 14640lbs 14730lbs
Safe Working Load
250kg 550lbs 550lbs
Fly Boom Arc
150°
Cage Rotation
160°
Cage Width
1.80m 5ft 11in
Cage Depth
0.8m 2ft 8in
