HR17N | 17m Self Propelled

Working Height

17m 56ft

Working Outreach

9.7m 32ft

Safe Working Load

225kg 500lbs 500lbs

Minimum Weight

7650kg 16870lbs

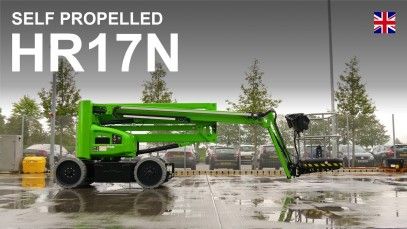

The HeightRider 17 Narrow (HR17N) will lift 2 men and their tools to a working height of 17m or a working outreach of 9.7m.

180° rotating cage and fly-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks easier and quicker to complete.

The HR17N's compact dimensions and zero-tail-swing enable it to travel through and work in restricted spaces, while its non-marking tyres mean it can work both inside and out, making it ideal for maintenance or industrial work.

The HR17N is available with two power options. You can choose from super-efficient battery power, or Niftylift's revolutionary Hybrid power system.

The battery ('electric') power option is ideal for indoor use, or for quiet, clean operation. It comes with an all-electric drive that allows its maintenance-free AGM batteries to work for longer on a single change, so more work can be completed and running costs reduced.

The Hybrid power option incorporates a smaller, power-optimised Tier IV compliant engine, supported by the machine's battery pack when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries without a mains power source, giving a 'fast-charge' whenever the machine is idle and the engine running. In addition, the Hybrid system also offers an electric-only mode, perfect for indoor, or quiet and clean operation.

The HR17N also incorporates Niftylift's ToughCage, and multi-award winning SiOPS® safety system, which eliminates sustained involuntary operation by instantly halting machine movement if the operator is pushed against the control console.

For more information regarding the HR17N or any other self-propelled boom lift, such as the HR12N or HR15N, please contact us.

Features

1.5m Narrow Chassis

Allowing operation in confined areas

180° Platform Rotation with Fly-Boom

Improving operator access

ToughCage with SiOPS® as Standard

Multi-award winning operator protection

Proportional Multi-Function Control

Fast & precise operation

Efficient Power System

Maximising battery output to do more with each charge

Hybrid Power Option

Versatile, fuel efficient & environmentally conscious

Specifications

Working Height (A)

17m 56ft

Working Outreach (C)

9.7m 32ft

Platform Height (B)

15m 49ft 6in

Machine Width (F)

1.5m 4ft 11in

Machine Height (D)

1.99m 6ft 6in

Machine Length (J)

6.4m 21ft

Transport Length (H)

4.93m 16ft 2in

Travel Speed

3.5km/h 2.2mph

Gradeability

25%

Gradeability

14°

Turning Radius

3.5m 11ft 6in

Minimum Weight

7650kg 16870lbs

Safe Working Load

225kg 500lbs 500lbs

Fly Boom Arc

150°

Cage Rotation

180°

Cage Width

1.5m 4ft 11in

Cage Depth

0.8m 2ft 8in

Power Options

Battery only
Hybrid (Battery & Diesel)

Diagram

Diagram of HR17N
