Nifty 150T | 14.7m Trailer Mount

Working Height

14.7m 48ft 6in

Working Outreach

7.55m 25ft

Safe Working Load

225kg 500lbs 500lbs

Minimum Weight

1775kg 3915lbs

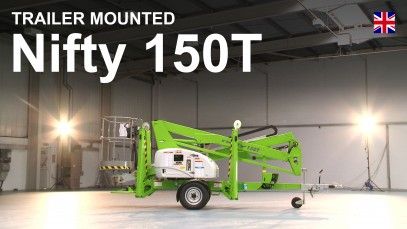

Developed specifically to maximise outreach, the Nifty 150T trailer mount delivers an unrivalled working envelope, especially at low levels where outreach is needed most.

The Nifty 150T trailer mount offers an up-and-over clearance of more than 5.6m allowing it to reach easily over larger obstacles such as walls and buildings.

Compact dimensions coupled with hydraulically operated outriggers make manoeuvring and setting up the Nifty 150T trailer mount quick and simple, while its 1.4m wide platform provides the operator plenty of room in which to work.

Fully proportional hydraulic controls and a spacious platform make the Nifty 150T trailer mount simple to operate with both speed and accuracy.

The Nifty 150T trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.

For more information regarding the Nifty 150T or any other trailer mount, including the Nifty 120T and Nifty 170, please contact us.

Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Bi-Energy Available

Optimising utilisation

Hydraulic Outriggers

For quick & easy setup

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Traction Drive Option

Improved manoeuvrability on site

Specifications

Working Height (A)

14.7m 48ft 6in

Working Outreach (C)

7.55m 25ft

Platform Height (B)

12.7m 42ft

Machine Width (F)

1.6m 5ft 3in

Machine Height (D)

2m 6ft 7in

Machine Length (J)

5.55m 18ft 3in

Working Width (G)

3.8m 12ft 6in

Minimum Weight

1775kg 3915lbs

Safe Working Load

225kg 500lbs 500lbs

Cage Width

1.4m 4ft 7in

Cage Depth

0.65m 2ft 4in

Outrigger Type

Hydraulic

Traction Drive

Available

Power Options

Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)

Diagram

Diagram of Nifty 150T
