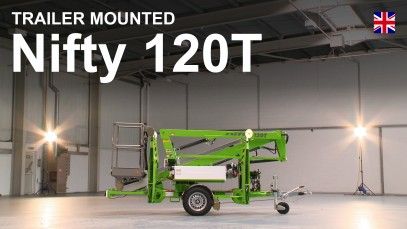

Nifty 120T | 12.2m Trailer Mount

Working Height

12.2m 40ft

Working Outreach

6.1m 20ft

Safe Working Load

200kg 440lbs 500lbs

Minimum Weight

1400kg 3100lbs

The Nifty 120T trailer mount is specifically designed to give maximum reach performance from the most compact chassis possible.

By utilising its versatile telescopic upper boom, the Nifty 120T trailer mount delivers unrivalled working outreach, especially at lower levels where it's needed most.

Hydraulically operated outriggers make setting up the Nifty 120T trailer mount both quick and easy.

Telescopic axles coupled with a very compact base make the Nifty 120T trailer mount one of the most compact and manoeuvrable trailer mounts available.

The Nifty 120T trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.

For more information regarding the Nifty 120T or any other trailer mount, including the Nifty 120 and Nifty 150T, please contact us.

Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Bi-Energy Available

Optimising utilisation

Hydraulic Outriggers

For quick & easy setup

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Telescopic Axles

Access through double doorway openings

Traction Drive Option

Improved manoeuvrability on site

Specifications

Working Height (A)

12.2m 40ft

Working Outreach (C)

6.1m 20ft

Platform Height (B)

10.2m 33ft 6in

Machine Width (F)

1.5m 4ft 11in

Machine Height (D)

1.9m 6ft 3in

Machine Length (J)

4.5m 14ft 9in

Working Width (G)

3.55m 11ft 8in

Minimum Weight

1400kg 3100lbs

Safe Working Load

200kg 440lbs 500lbs

Cage Width

1.1m 3ft 7in

Cage Depth

0.65m 2ft 2in

Outrigger Type

Hydraulic

Traction Drive

Available

Power Options

Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)

Diagram

Diagram of Nifty 120T
