HR28 4x4 | 28m Self Propelled

Working Height

28m 92ft

Working Outreach

19m 62ft

Safe Working Load

280kg 620lbs 620lbs

Minimum Weight

14650kg 32300lbs

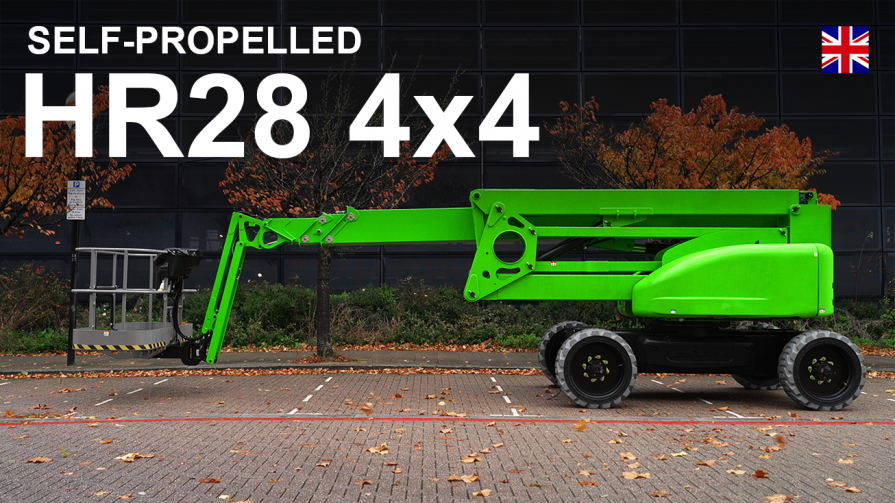

The Height Rider 28 (HR28Hybrid Four-Wheel-Drive (4x4) is one of a new generation of environmentally conscious work platforms from Niftylift. Combining advanced power-source technology with efficient 4x4, it delivers outstanding performance from a compact and low-weight design.

On Diesel, the HR28's revolutionary Hybrid system can automatically utilise its electric motor to boost power whenever needed. This allows the HR28 Hybrid 4x4 to operate with a smaller engine, reducing fuel consumption and its exhaust purification system then further reduces CO/NOx, particulates, and noise emissions.

The HR28 Hybrid 4x4 can also operate on battery alone, making it ideal for indoor, quiet or clean applications. Diesel Re-Gen recharges the batteries without a mains power source and a fast charge is achieved whenever the machine is idle and the engine is left running.

The HR28 Hybrid 4x4 also incorporates Niftylift's multi award-winning SiOPS® safety system. SiOPS® eliminates sustained involuntary operation by instantly stopping machine movement if the operator is pushed onto the control console, allowing them to safely recover their situation.

For more information regarding the HR28 Hybrid 4x4 or any other self propelled work platform, including the HR21 4x4 and HR21 Hybrid AWD please contact us.

Features

Hybrid Power

Versatile, Fuel efficient & environmentally conscious

40% Gradeability

AWD for rough terrain

GVW Only 14,650kg

Lightest in its class

SiOPS® as Standard

Multi-award winning operator protection

Superb Manoeuvrability

5.63m outside turning radius

360º Continuous Slew

Quick & easy to service

180º Platform Rotation & 150º Fly-Boom

Improved access to applications

Specifications

Working Height (A)

28m 92ft

Working Outreach (C)

19m 62ft

Platform Height (B)

26m 85ft 6in

Machine Width (F)

2.49m 8ft 2in

Machine Height (D)

2.7m 8ft 10in

Machine Length (J)

9.28m 30ft 5in

Transport Length (H)

7.3m 23ft 11in

Travel Speed

4.7km/h 3mph

Gradeability

40%

Gradeability

22°

Turning Radius

5.9m 19ft 4in

Minimum Weight

14650kg 32300lbs

Safe Working Load

280kg 620lbs 620lbs

Fly Boom Arc

150°

Cage Rotation

180°

Cage Width

2.4m 7ft 10in

Cage Depth

0.9m 2ft 11in

Power Options

Hybrid (Battery & Kubota D1105)
Diesel Only (Kohler KDI 1903)

Diagram

Diagram of HR28 4x4
