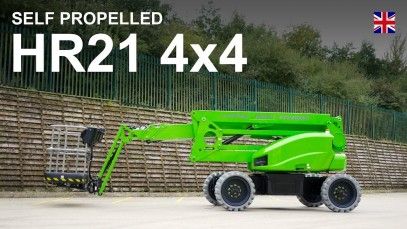

HR21 4x4 | 20.8m Self Propelled

Working Height

20.8m 68ft 6in

Working Outreach

13m 42ft 8in

Safe Working Load

250kg 550lbs *600lbs

Minimum Weight

6640kg 14640lbs

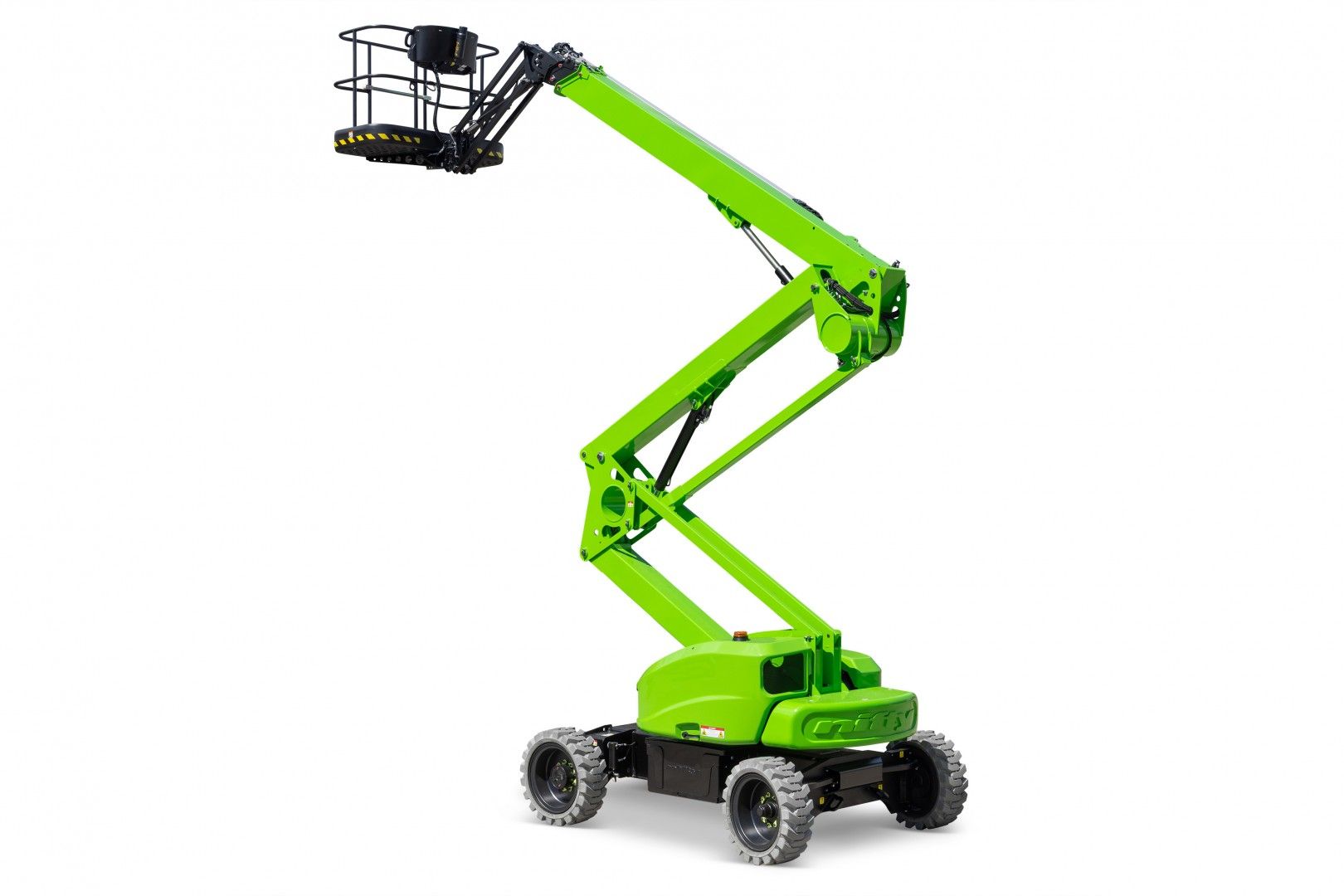

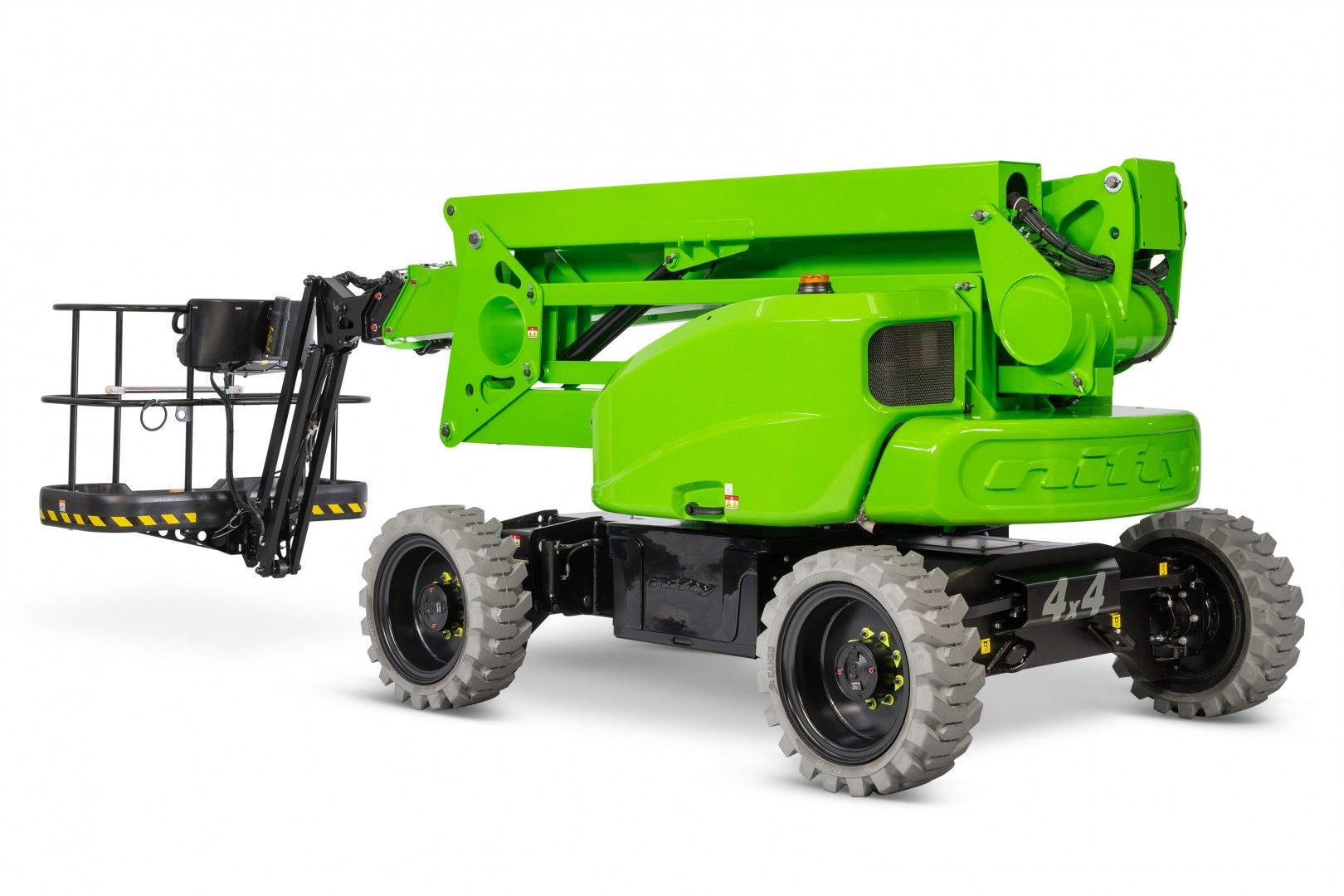

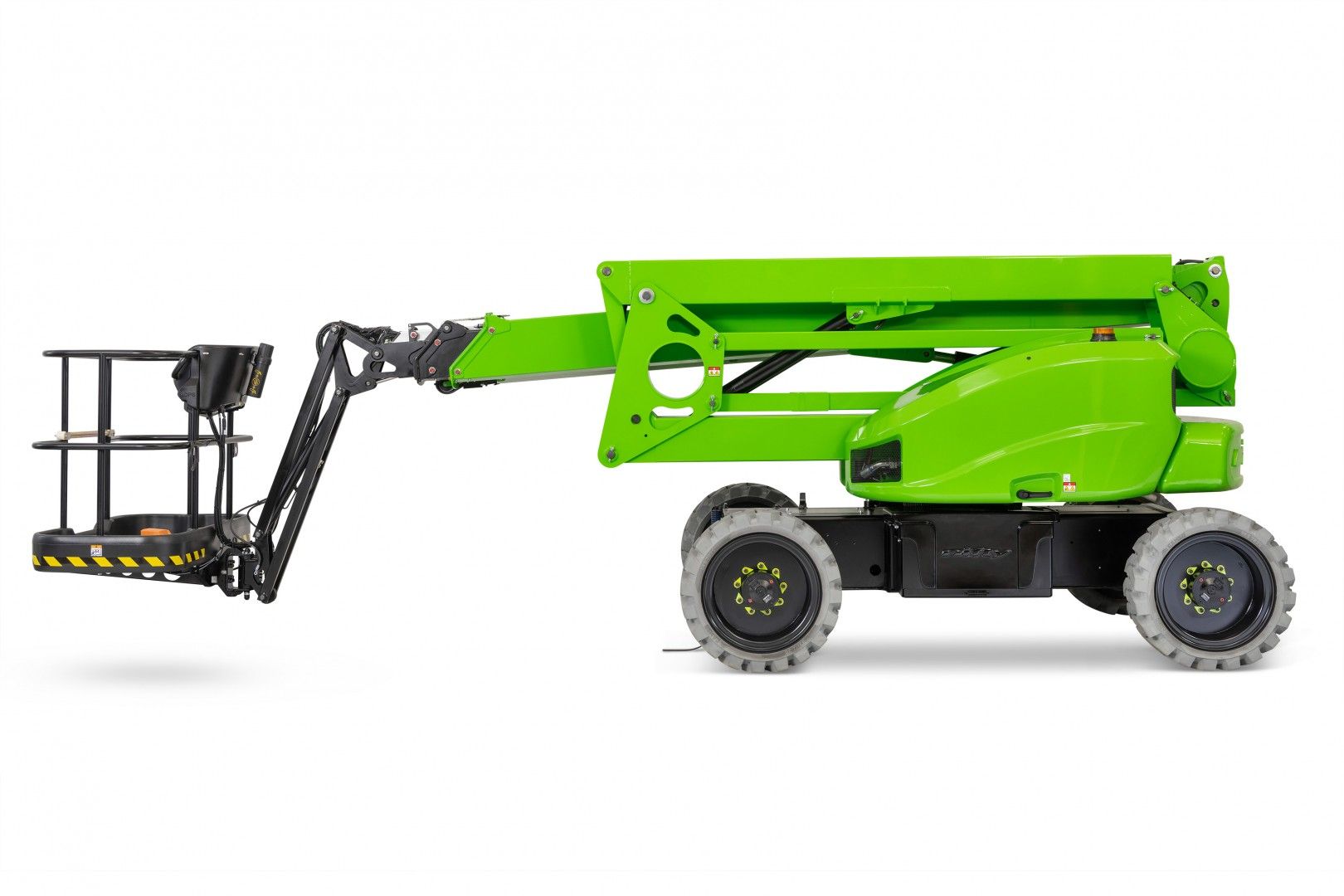

Winner of the International Powered Access Federation's 'IAPA Product of the Year 2018' award, the HeightRider 21 4x4 (HR21 4x4) self-propelled cherry picker will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m.

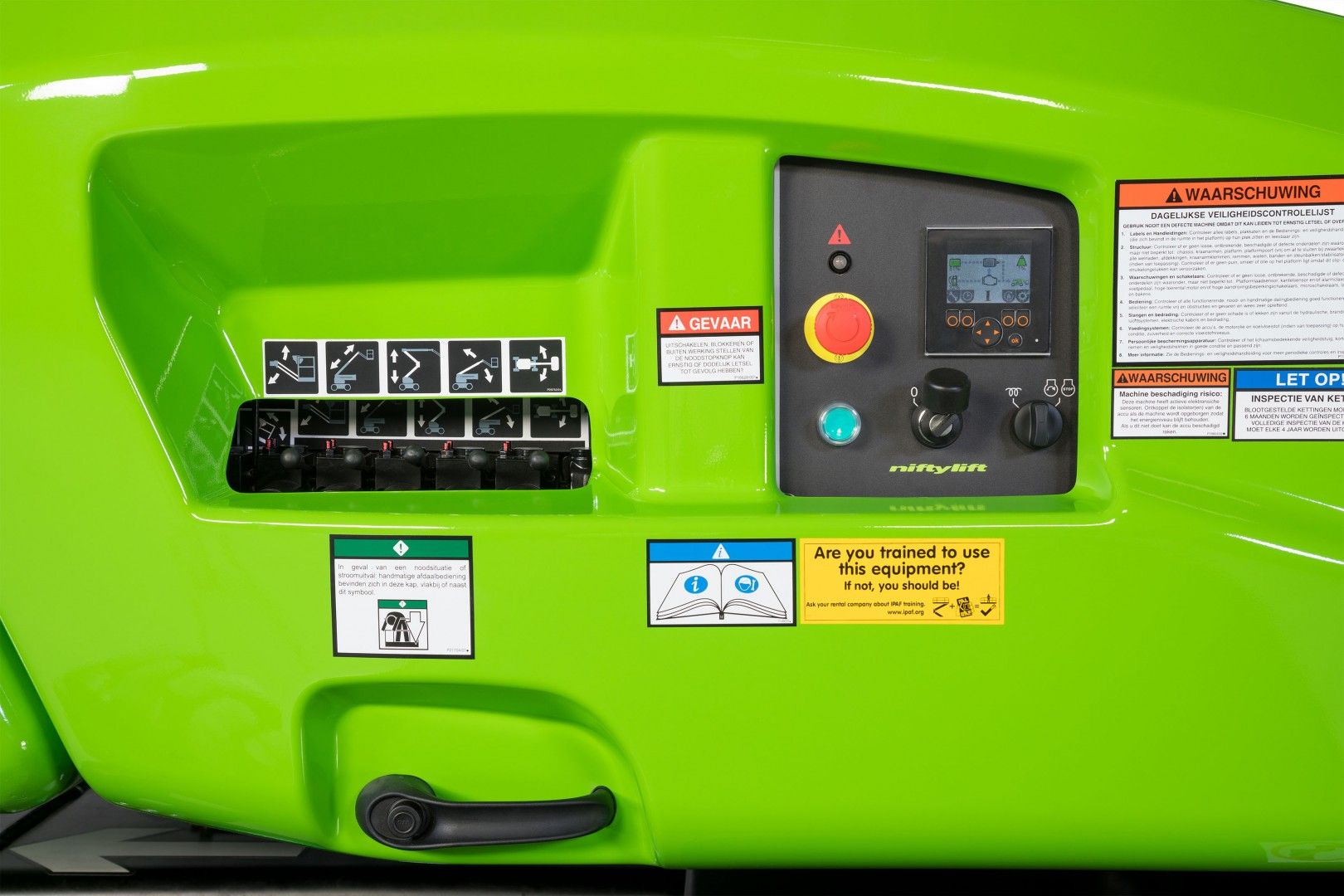

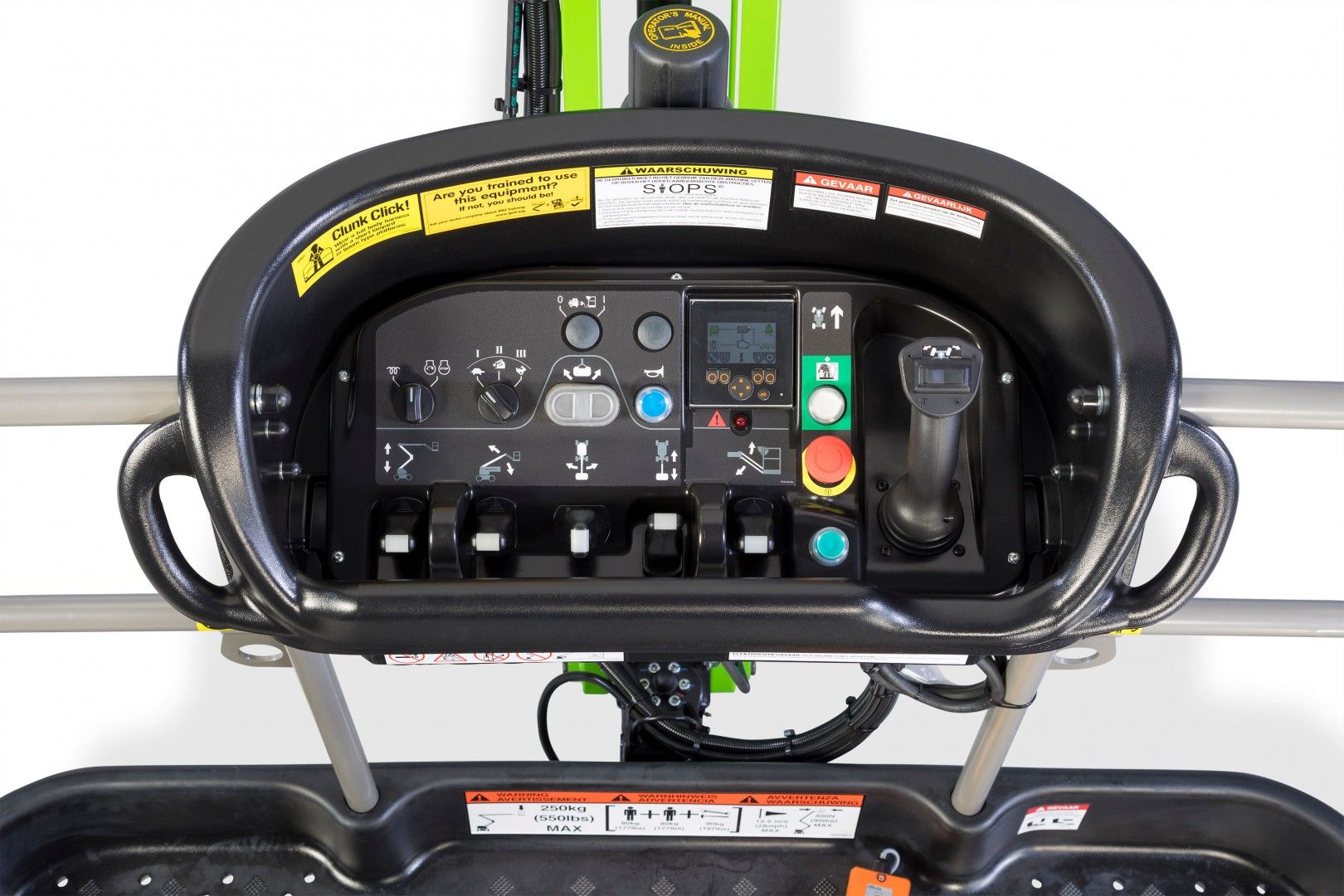

Proportional controls deliver smooth, measured operation while 160º cage rotation and a 150º fly-boom allow precise positioning anywhere in its vast working envelope.

Weighing just 6,640kg, the HR21 4x4 combines innovative weight and space saving design with an excellent turning circle to deliver outstanding manoeuvrability on-site and lower transportation costs.

The HR21 4x4's 1.8m wide ToughCage (steel cage option available) offers more space for materials and tools and the tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage also give additional strength and durability, while the multi award winning SiOPS® provides additional operator protection.

The HR21 4x4 is available with two power options, Diesel-only or Hybrid power:

The Diesel-only option incorporates a versatile and efficient TIER IV compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground.

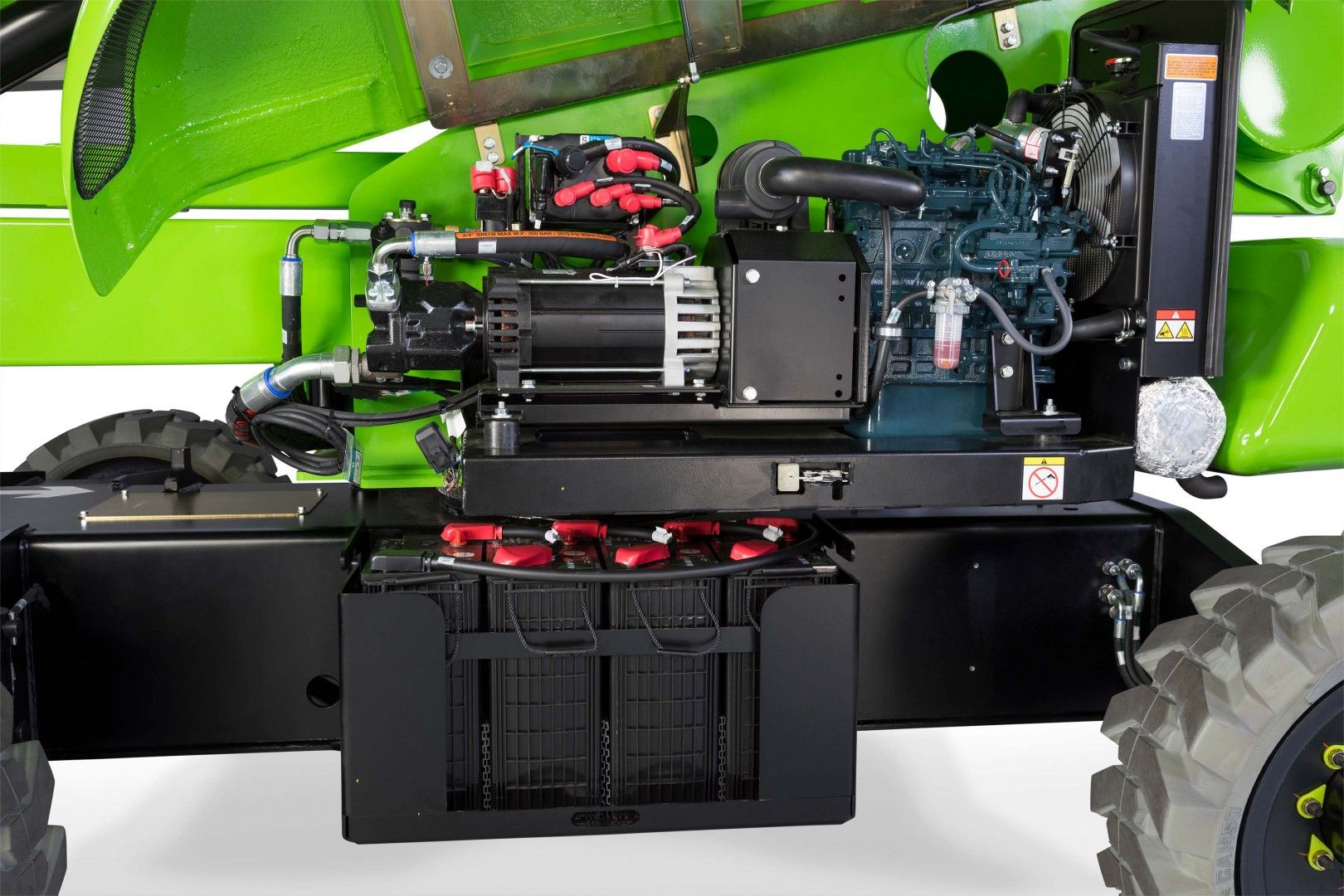

The Hybrid option incorporates a smaller, power-optimised TIER IV compliant engine supported by the machine's battery pack for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries without a mains power source, giving a 'fast-charge' whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.

For more information regarding the HR21 4x4 or any other self propelled boom lift, including the HR17 4x4 and HR28 4x4, please contact us.

Features

45% Gradeability

4WD for rough terrain

GVW Only 6,640kg

Lightest in its class

ToughCage with SiOPSĀ®

Multi-award winning operator protection

Superb Manoeuvrability

3.89m outside turning radius

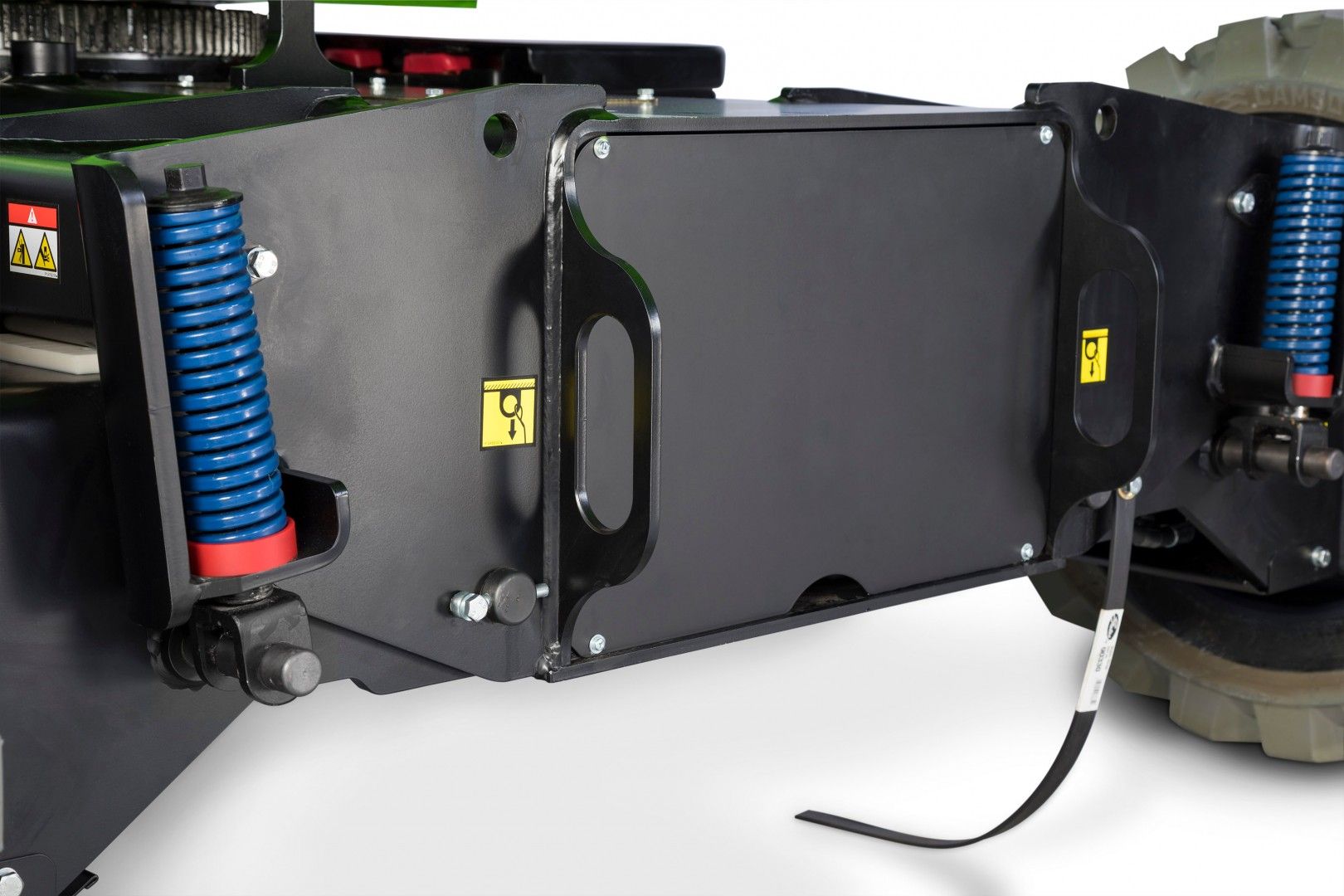

Suspension System

Improving traction & comfort

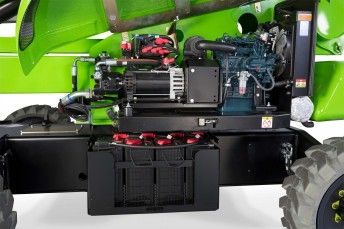

Swing-Out Engine Tray

Quick & easy to service

Platform Rotation & Fly-Boom

Improved access to applications

Maintenance-Free Batteries as Standard

Reducing maintenance downtime

Full Battery Monitoring & Protection

Increasing battery life and lowering costs

Second Generation Hybrid Power Available

Environmentally conscious and more fuel-efficient power

Specifications

Working Height (A)

20.8m 68ft 6in

Working Outreach (C)

13m 42ft 8in

Platform Height (B)

18.8m 62ft

Machine Width (F)

2.27m 7ft 5in

Machine Height (D)

2.18m 7ft 2in

Machine Length (J)

6.62m 22ft

Transport Length (H)

5.47m 17ft 11in

Travel Speed

6km/h 3.7mph

Gradeability

45%

Gradeability

24°

Turning Radius

3.89m 12ft 9in

Minimum Weight

6640kg 14640lbs

Safe Working Load

250kg 550lbs *600lbs

Fly Boom Arc

150°

Cage Rotation

160°

Cage Width

1.8m *5ft 11in

Cage Depth

0.8m *2ft 8in

Power Options

Diesel only (Perkins 403D)
Hybrid (Battery & Kubota D902)

Diagram

Diagram of HR21 4x4
