HR12N | 12.2m Self Propelled

Working Height

12.2m 40ft

Working Outreach

6.1m 20ft

Safe Working Load

200kg 440lbs 500lbs

Minimum Weight

3435kg 7575lbs

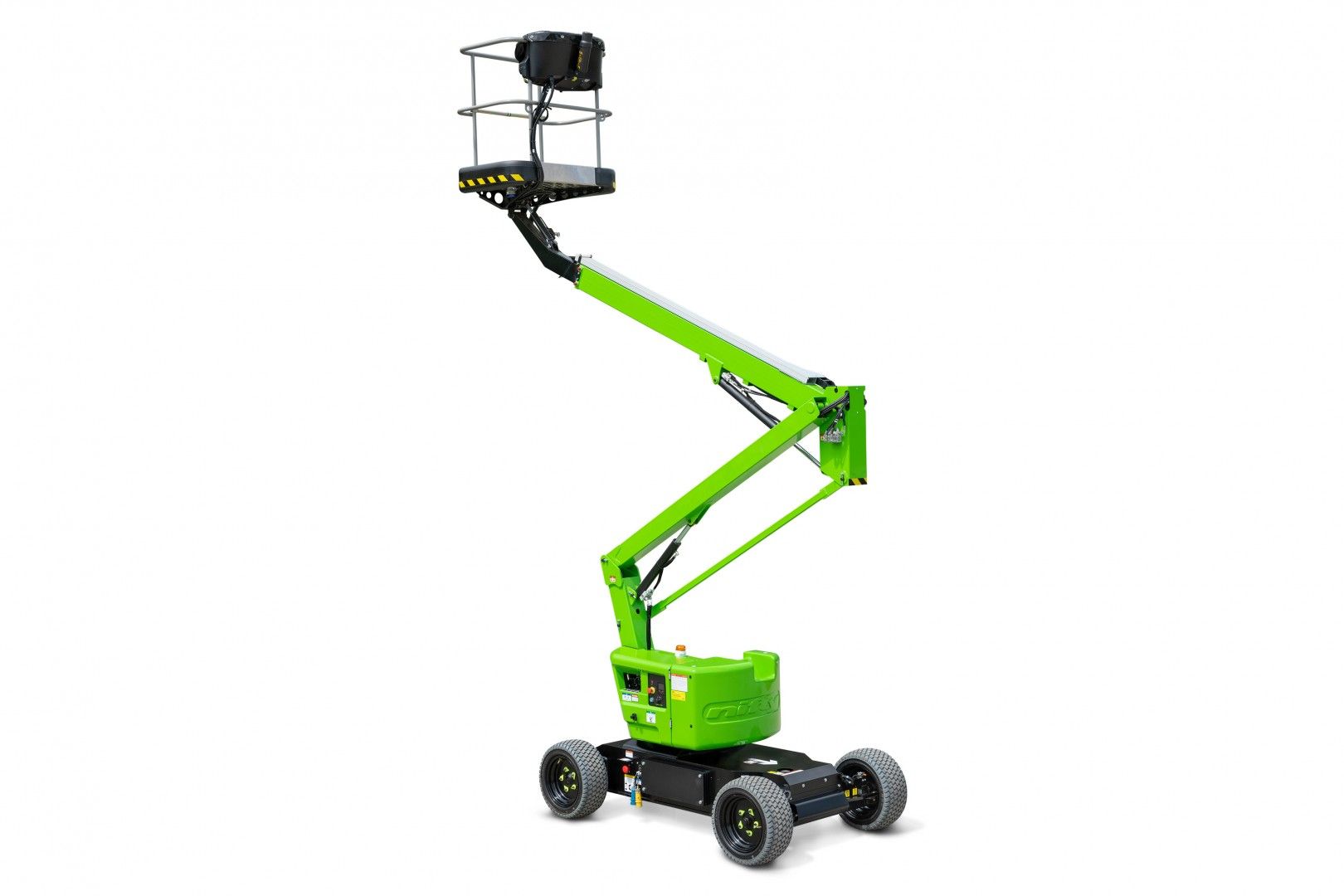

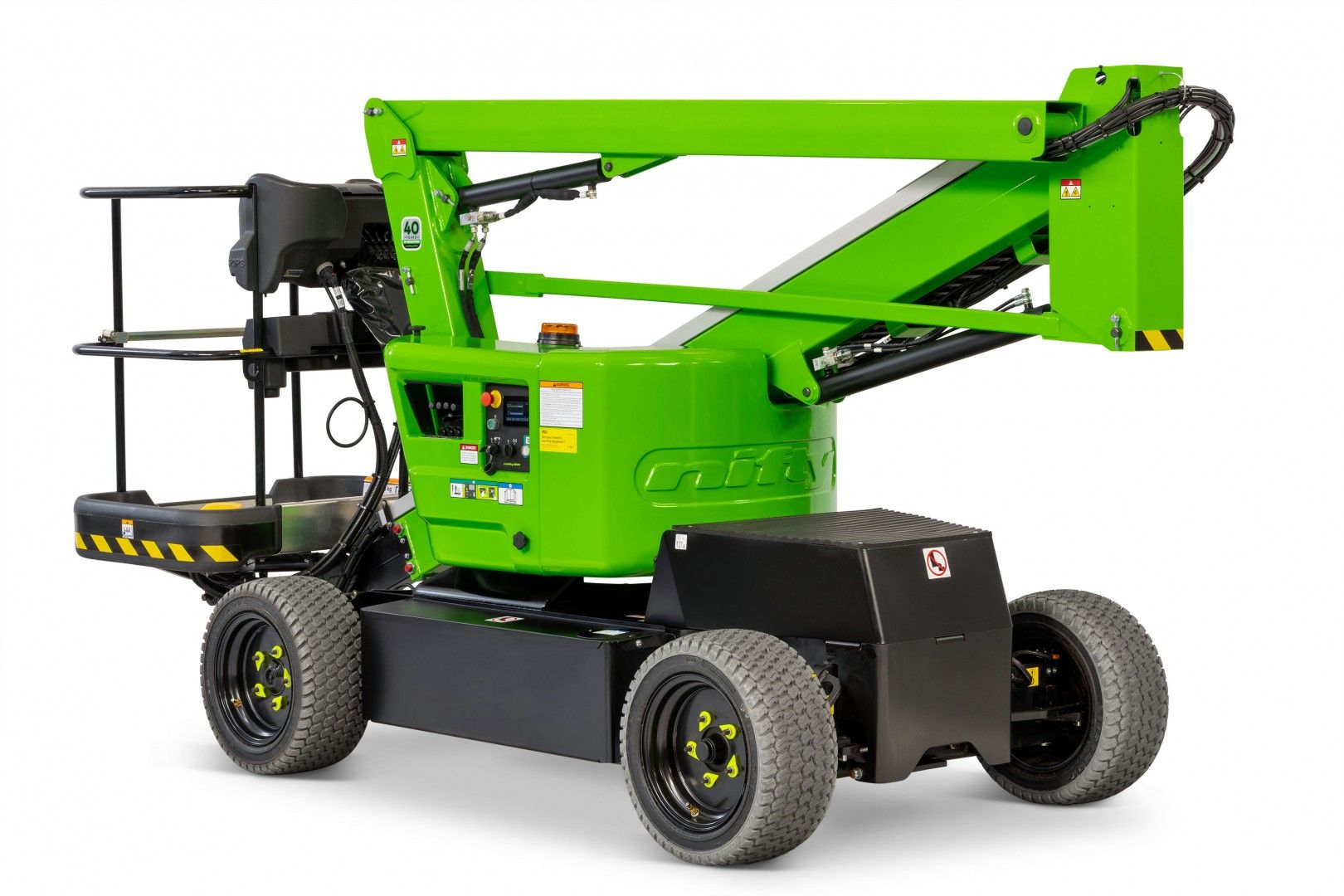

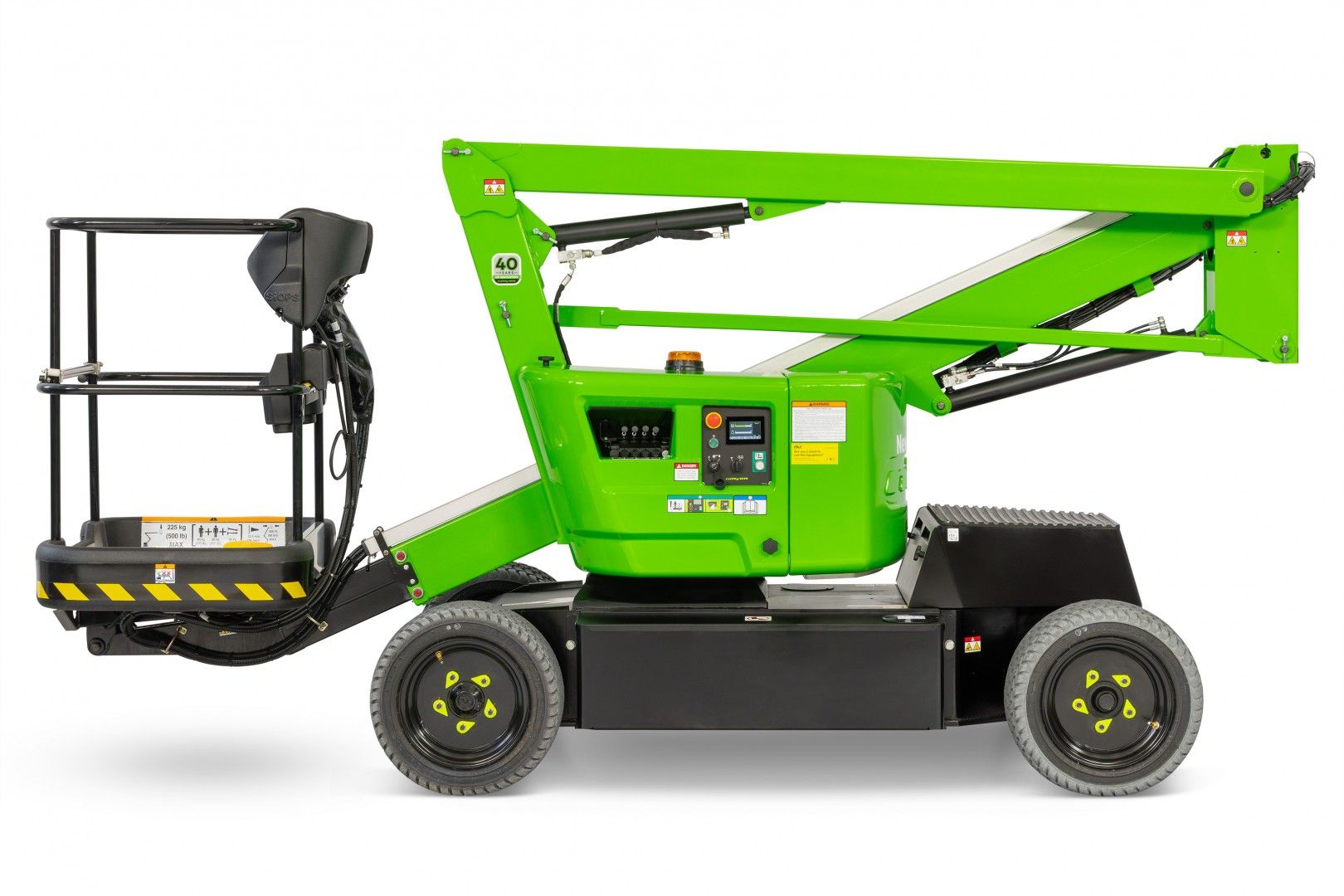

The Height Rider 12 Narrow (HR12N) self propelled boom lift is one of the most versatile and reliable machines in its class.

It is specifically designed to give maximum reach performance from the lightest, most compact base possible. A telescopic upper boom gives the HR12N self propelled boom lift improved accuracy when positioning the platform and superb manoeuvrability makes it ideal for a wide range of applications.

With a 1.50m (4ft 11in) narrow chassis, the HR12N self propelled boom lift is ideal for working in factories, warehouses or anywhere that space is restricted.

Its Bi-Energy option allows the HR12N self propelled boom lift to work for extended periods inside and outside, making it the perfect all-rounder.

For more information regarding the HR12N or any other self propelled boom lift, including the HR12 4x4 and HR15N, please contact us.

Features

Telescopic Upper Boom

Greater accuracy when positioning platform

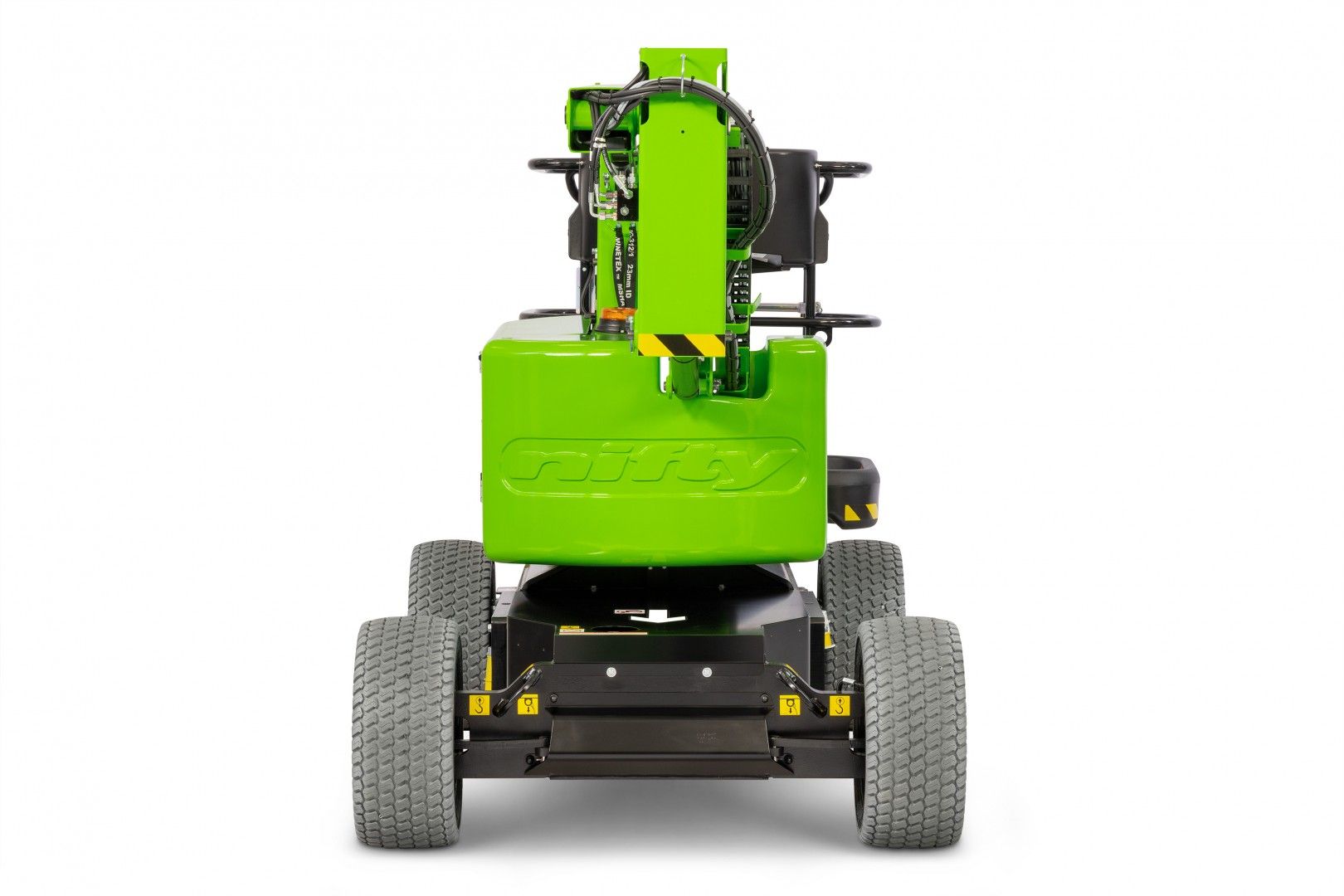

1.5m Chassis Width

Improved narrow aisle access

Weight Under 3.5 Tonnes

Low cost transportation

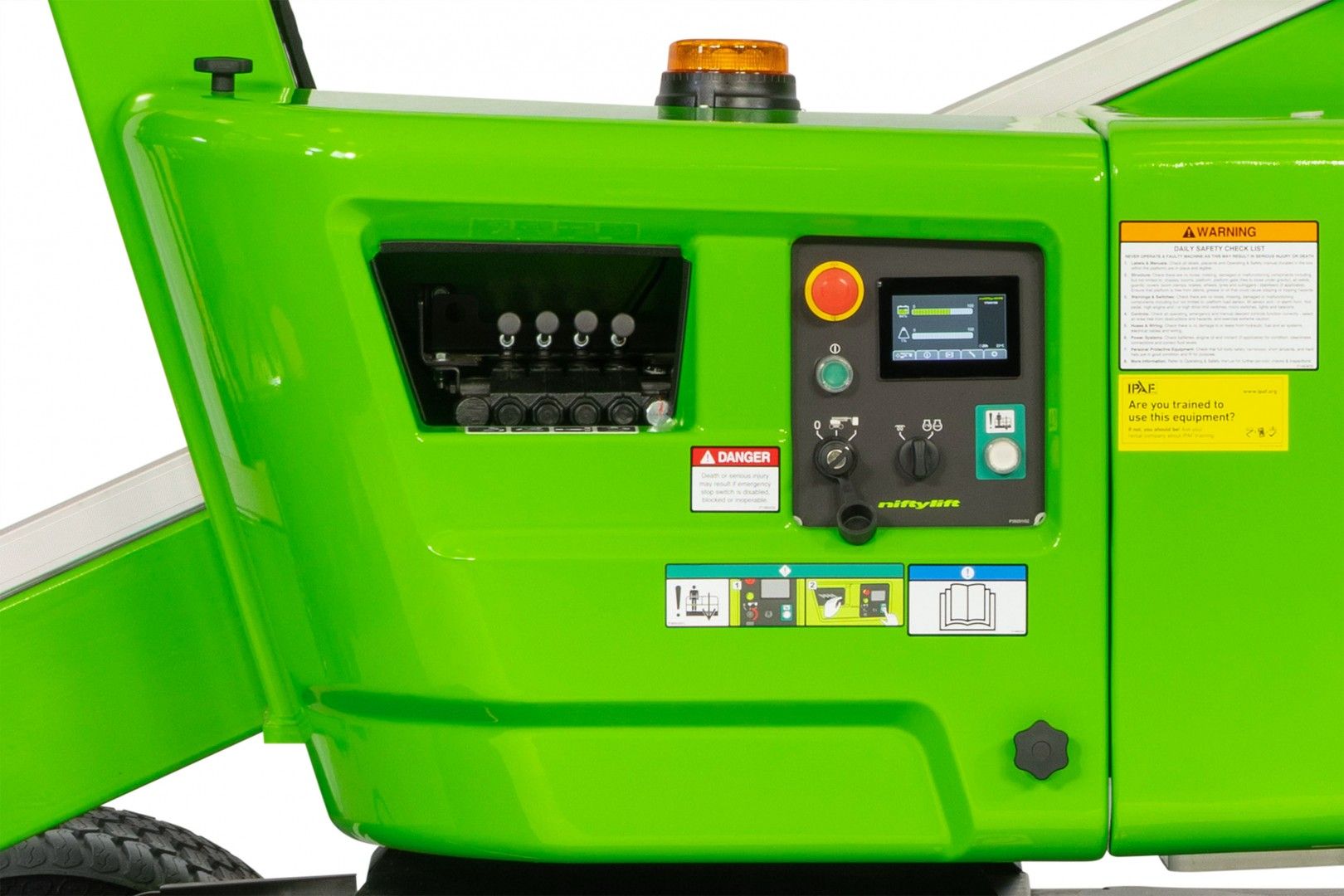

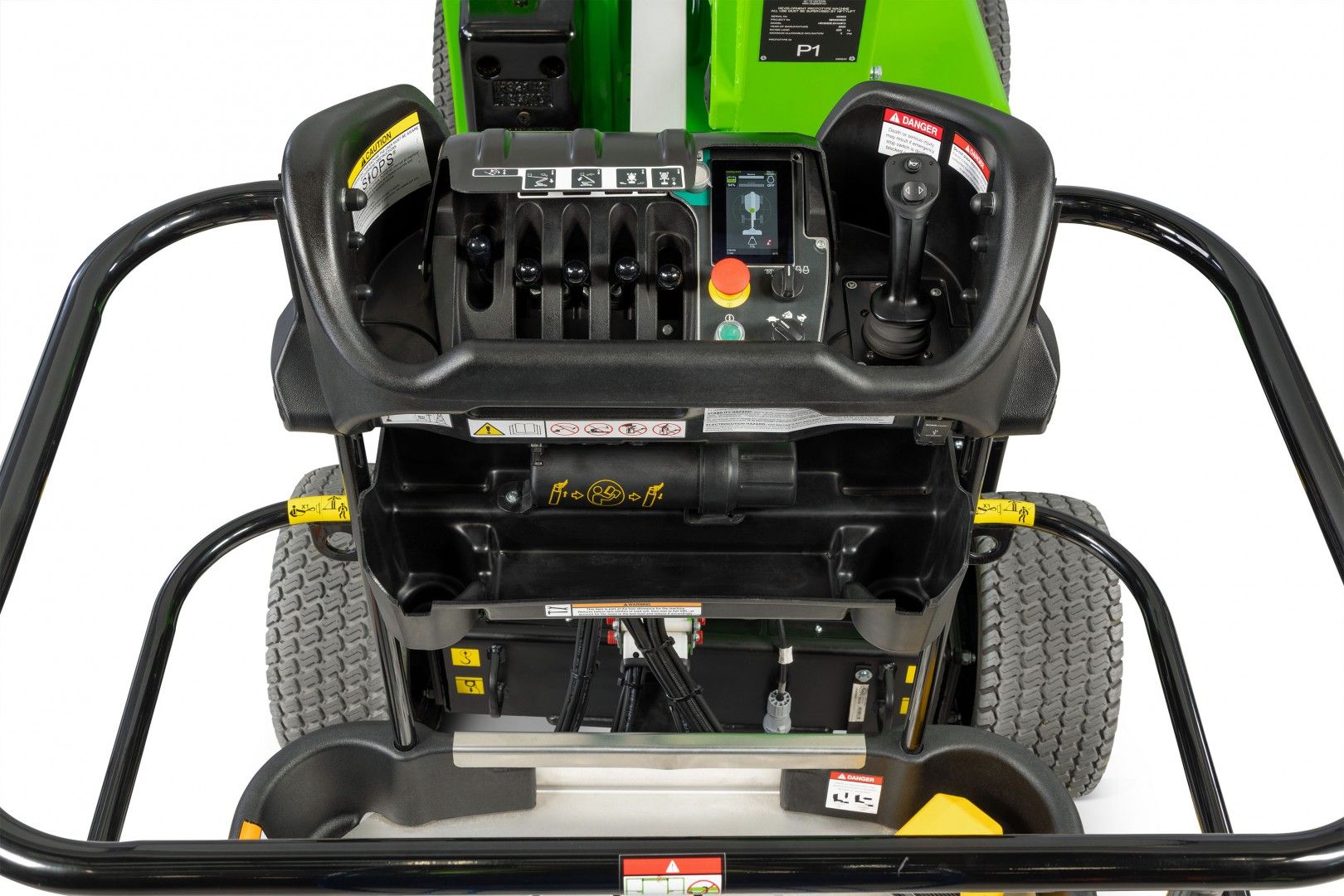

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Bi-Energy Available

Optimising utilisation

Specifications

Working Height (A)

12.2m 40ft

Working Outreach (C)

6.1m 20ft

Platform Height (B)

10.2m 33ft 6in

Machine Width (F)

1.5m 4ft 11in

Machine Height (D)

1.9m 6ft 3in

Machine Length (J)

4.1m 13ft 5in

Travel Speed

3.4km/h 2.1mph

Gradeability

25%

Gradeability

14°

Turning Radius

4.2m 13ft 9in

Minimum Weight

3435kg 7575lbs

Safe Working Load

200kg 440lbs 500lbs

Cage Width

1.1m 3ft 7in

Cage Depth

0.65m 2ft 2in

Power Options

Battery only

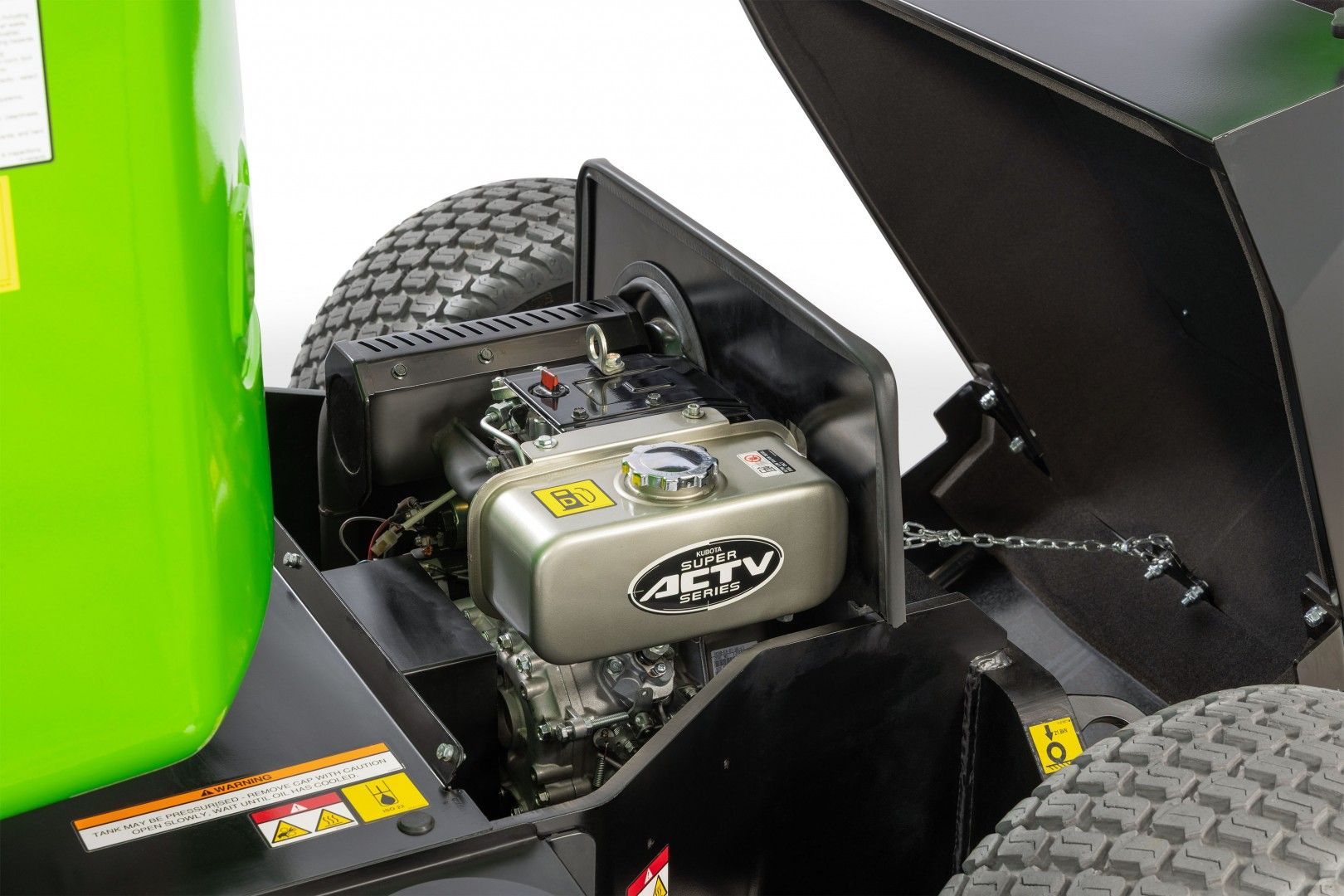

Petrol, Diesel or LPG only

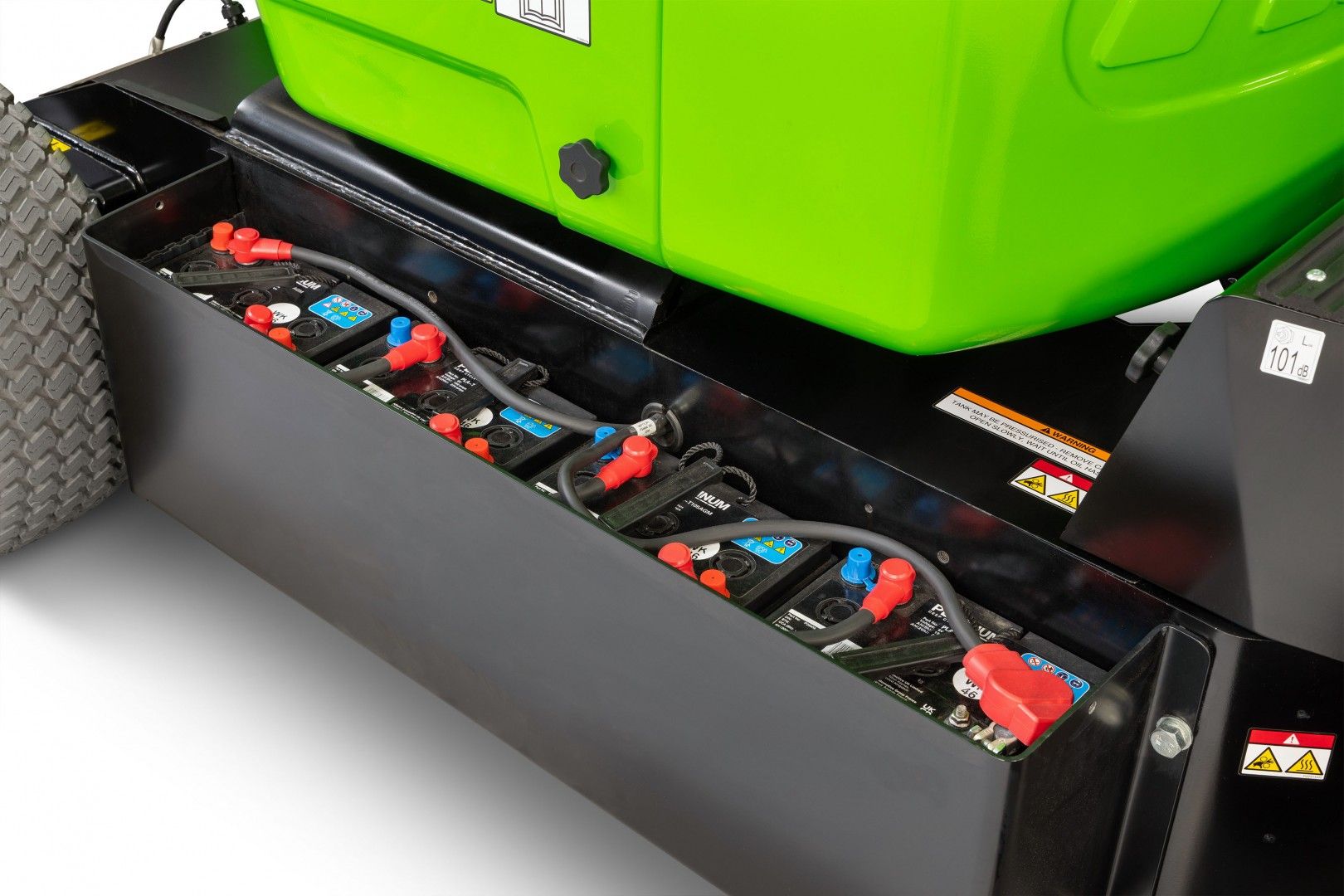

Bi-Energy (Engine & Battery)

Diagram

Diagram of HR12N
